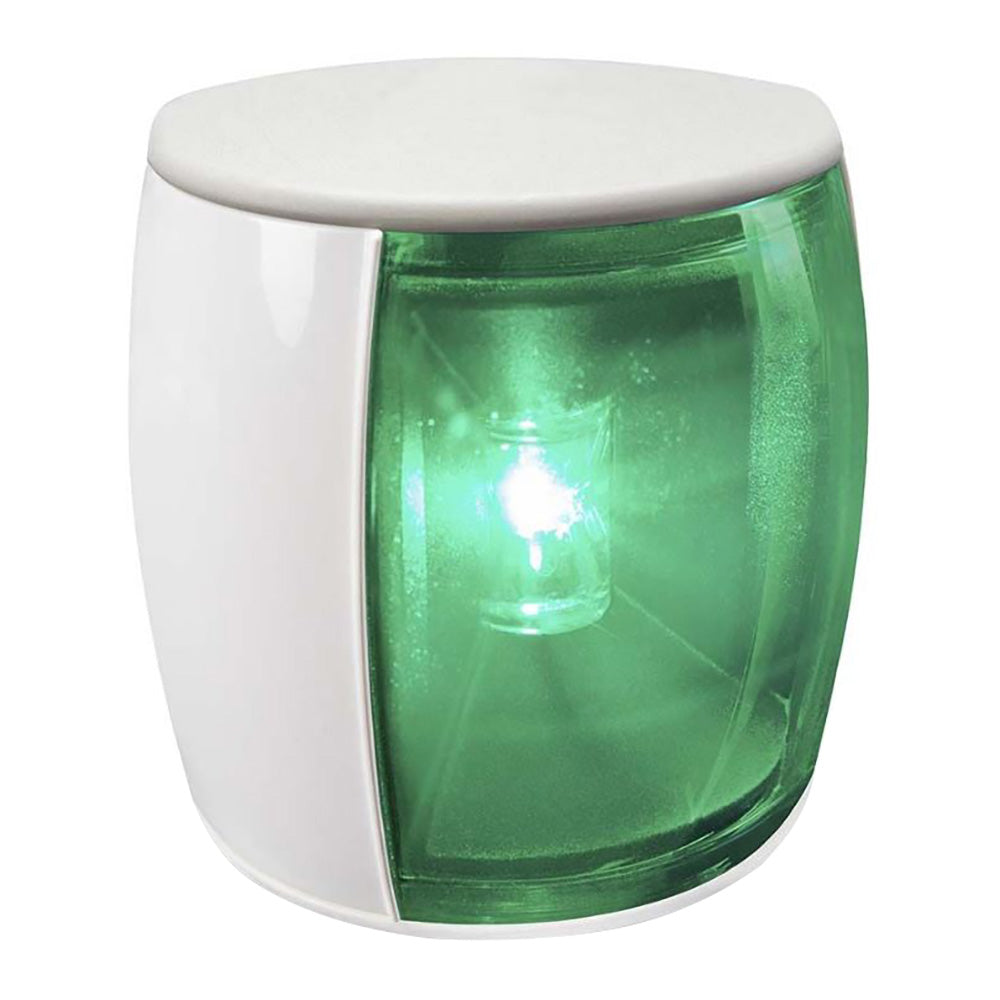

Hella Marine NaviLED PRO Starboard Navigation Lamp - White - 3NM

The NaviLED PRO Starboard Navigation Lamp in white is a high-performance lighting solution designed to meet and exceed the stringent requirements for vessels over 50 meters. Engineered for reliability and durability, this lamp ensures safe and efficient navigation during nighttime voyages.

Exceptional Marine-Grade Performance

Hella Marine prioritizes the integrity of navigation lighting. Unlike generic fitments that merely comply with regulations, the NaviLED PRO Starboard lamp is a critical component for safe night navigation. Its robust construction and advanced technology make it an indispensable asset for any marine vessel.

Advanced Electrical Compliance

All Hella Marine products, including the NaviLED PRO, are meticulously designed to minimize electromagnetic interference. This ensures seamless operation of radio, communication, navigation, and other essential electrical systems on board, adhering to international standards for emissions and susceptibility.

Superior Durability

Rated IP67, the NaviLED PRO Starboard lamp is completely sealed against water and dust ingress. It withstands harsh marine environments, including UV exposure, corrosive salt air, and constant vibrations, ensuring longevity and consistent performance.

Energy-Efficient Illumination

Powered by highly efficient LEDs, this lamp offers ultra-low power consumption without compromising on light intensity. It maintains optimal brightness across a wide voltage range from 9V DC to 32V DC, making it versatile for various marine applications.

Key Features

• Lamp Type: Starboard Navigation
• Color: White
• Visible Range: 3 nautical miles (suitable for powerboats)
• Power Consumption: <2W (0.17A@12V / 0.09A@24V DC)
• Protection: IP67 rated, spike and reverse polarity protected
• Operating Voltage: 9-33V DC
• Weight: 250g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC C-5, RCM, Maritime NZ

Technical Specifications

Specification	Details
Dimensions (W x H)	3.43 x 3.54 inches (87mm x 90mm)
Material	Hi-impact-resistant acrylic lens
Cable	Pre-wired with 2.5m of tinned marine cable
Housing Color	White
Lens Color	Green
Box Dimensions	4"H x 4"W x 6"L
Weight	0.8 lbs
UPC	9416325253365

Installation and Compatibility

The NaviLED PRO Starboard Navigation Lamp is designed for easy installation on vessels requiring robust navigation lighting. Its pre-wired 2.5-meter tinned marine cable simplifies the setup process, ensuring a secure and reliable connection to your boat’s electrical system. Compatible with both 12V and 24V DC applications, it adapts seamlessly to different voltage inputs, enhancing its versatility.

Warranty and Support

Manufactured in New Zealand, the NaviLED PRO is backed by Hella Marine’s comprehensive 5-year warranty, providing peace of mind and assurance of quality. Whether you’re navigating coastal waters or open seas, you can rely on Hella Marine’s support for uninterrupted performance.

Download the Owner's Manual (PDF)
