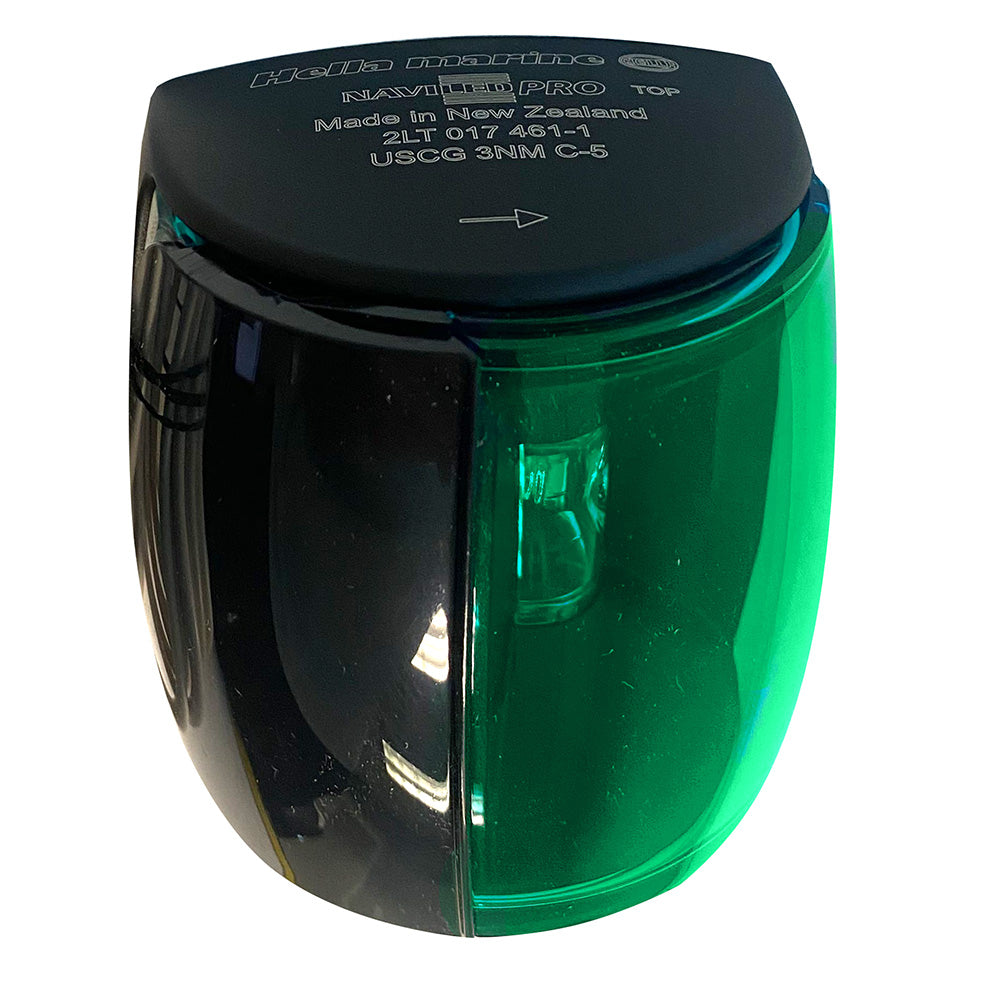

Hella Marine NaviLED PRO Starboard Navigation Lamp - Black - 3NM

The NaviLED PRO Starboard Navigation Lamp in sleek black is engineered for marine excellence, offering unparalleled durability and energy efficiency. Trusted by commercial, military, and recreational vessels worldwide, this lamp ensures reliable performance and enhanced safety on the water.

Key Features

• Designed for Starboard Side: Specifically crafted for installation on the starboard side of your vessel, ensuring optimal visibility and compliance with maritime regulations.
• Ultra-Low Power Consumption: Consumes less than 3.2 watts, helping to conserve your vessel’s energy without compromising on brightness.
• Maintenance-Free LED Technology: Utilizes Hella marine LEDs with no filaments, resulting in a lamp that is shock and vibration-proof for maximum reliability.
• Wide Voltage Compatibility: Operates efficiently across a broad range of voltages from 9 to 33V DC, thanks to advanced MultivoltTM electronics.
• Lifetime Sealing: Rated IP67 for complete waterproofing, the lamp is fully sealed to withstand harsh marine environments and impacts.
• Pre-Wired Convenience: Comes with 2.5 meters of twin-core marine cable, facilitating a quick and secure installation process.

Technical Specifications

Feature	Details
Dimensions (W x H)	3.43 x 3.54 inches (87mm x 90mm)
Lamp Color	Black
Material	High-impact-resistant acrylic lens
Minimum Visible Distance	3 nautical miles (powerboats only)
Cable	Pre-wired with 2.5m twin core marine cable
Operating Voltage	Multivolt 9-33V DC
Voltage Protection	Spike protected to +500V, Reverse polarity protected to -700V
Power Consumption	Less than 3.2W
Degree of Protection	IP67 (completely sealed)
Weight	250g (including cable)
Housing Color	Black
Visible Range	3 nm
Box Dimensions	4"H x 4"W x 6"L
Weight	0.75 lbs
UPC	9416325253341

Durability and Reliability

The NaviLED PRO is built to endure the toughest marine conditions. Its high-impact housing and Grilamid lenses in ultra-heavy-duty BSH versions provide superior strength against waves and physical impacts. The fully sealed IP67 casing ensures that the lamp remains waterproof and dustproof for a lifetime of reliable performance.

Energy Efficiency

With an ultra-low current draw of under 3.2 watts, the NaviLED PRO minimizes the load on your vessel’s electrical system. This energy-efficient design allows for longer battery life, making it an ideal choice for both short voyages and extended maritime journeys.

Advanced Electronics

Equipped with MultivoltTM technology, the NaviLED PRO maintains consistent illumination even during severe voltage fluctuations and low battery conditions. The advanced voltage protection safeguards against spikes up to +500 volts and reverse polarity up to -700 volts, ensuring the lamp’s longevity and performance.

Easy Installation

The lamp arrives pre-wired with 2.5 meters of twin-core marine cable, simplifying the installation process. High-quality cable assemblies ensure a completely sealed and time-saving setup, allowing you to get your navigation lamp operational quickly and efficiently.

Certifications and Approvals

The NaviLED PRO Starboard Navigation Lamp meets stringent international standards, including:

• IMO Col Reg 72
• RINA
• USCG
• ABYC A-16
• Maritime NZ

Additional Resources

For more detailed information, please refer to the Owner's Manual (PDF).
