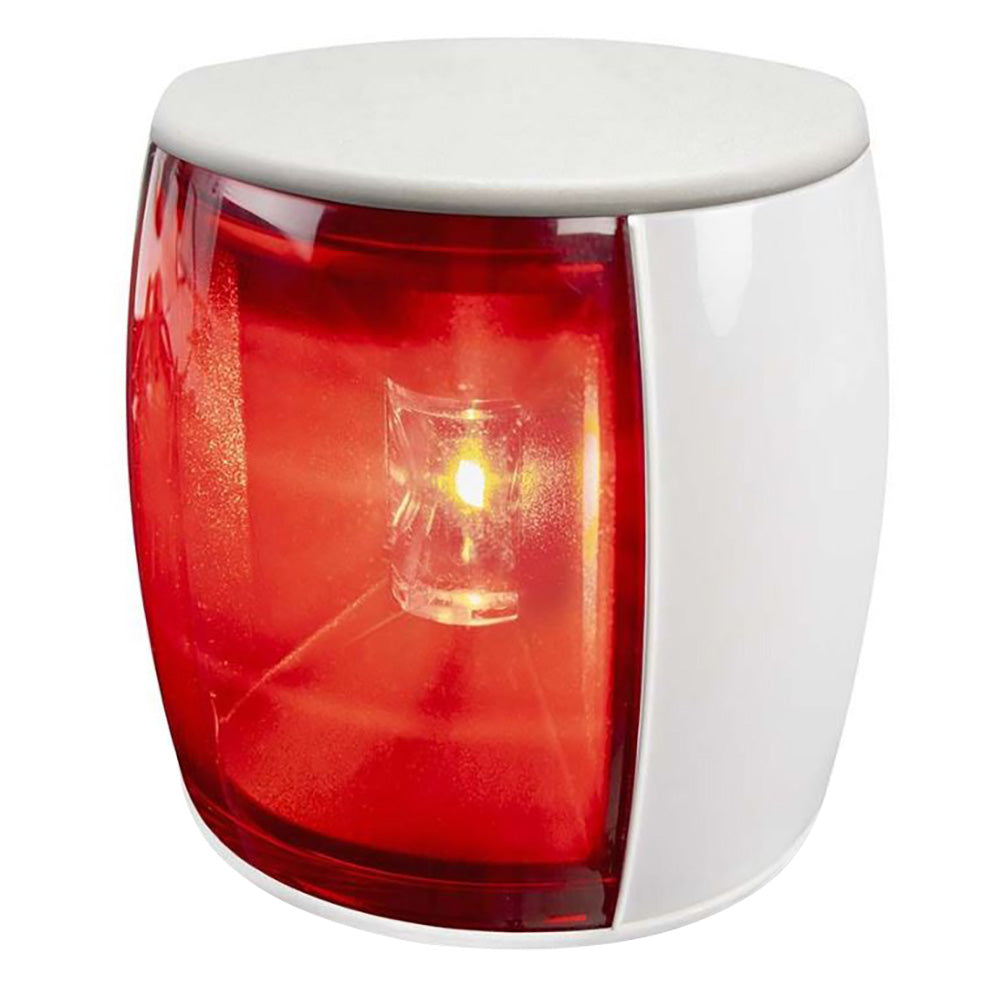

Hella Marine NaviLED PRO Port Navigation Lamp - 2nm - White Shroud

Enhance your vessel's safety and compliance with the NaviLED PRO Port Navigation Lamp. Featuring a 2 nautical mile visibility and a durable white shroud, this lamp is designed to meet the rigorous demands of marine navigation for vessels up to 50 meters.

Superior Marine Performance

Hella Marine understands the critical role of navigation lights. The NaviLED PRO series is not just a regulatory requirement but an essential component for safe night-time navigation. Available in Port, Starboard, Masthead, and Stern configurations, these lamps ensure your vessel is both visible and compliant.

Advanced Electromagnetic Interference Protection

Our navigation lamps are engineered with components that suppress electromagnetic interference, both in emission and susceptibility. This ensures seamless operation of your vessel's radio, communication, navigation, and other electrical systems, adhering to international standards.

Durable and Weather-Resistant Design

With an IP67 rating, the NaviLED PRO lamps are completely sealed against water and dust. Constructed from high-impact, UV-resistant acrylic, these lamps are built to withstand harsh marine environments, including exposure to salt air, UV rays, and constant vibrations.

Energy-Efficient LED Lighting

Utilizing highly efficient LED technology, these navigation lamps offer ultra-low power consumption while providing consistent light intensity. They are compatible with a wide range of voltage inputs, from 9V DC to 32V DC, making them versatile for various marine electrical systems.

Quality Assurance and Warranty

Manufactured in New Zealand, each NaviLED PRO lamp comes with a 5-year warranty from Hella Marine, ensuring long-term reliability and peace of mind for your maritime adventures.

Key Features

• 2 NM Visibility
• IMO COL REG 72 Compliant
• USCG Certified
• ABYC C-5 Compliant
• Maritime NZ Approved
• Energy-Efficient LED Lighting
• 12/24V Multivolt Compatibility
• IP67 Waterproof and Dustproof
• UV Resistant Construction
• 5-Year Warranty Included

Technical Specifications

Material	High-impact and UV-resistant acrylic
Minimum Visible Distance	3 nautical miles (yachts and powerboats)
Cable Length	2.5 meters of tinned marine cable
Operating Voltage	Multivolt™ 9–33V DC for 12 / 24V DC applications
Voltage Protection	Spike protected to +500 volts; Reverse polarity protected to -500 volts
Power Consumption	<2W (0.17A@12V / 0.09A@24V DC)
Degree of Protection	IP67 - Completely Sealed
Weight	250g (including cable)
Compliance Standards	IMO COL REG 72, USCG, ABYC C-5, RCM, Maritime NZ
Housing Color	White
Lens Color	Red
Visible Range	2 NM
Input Voltage Range	12/24V
Box Dimensions	4"H x 4"W x 6"L
Weight	0.75 lbs
UPC	9416325253242
