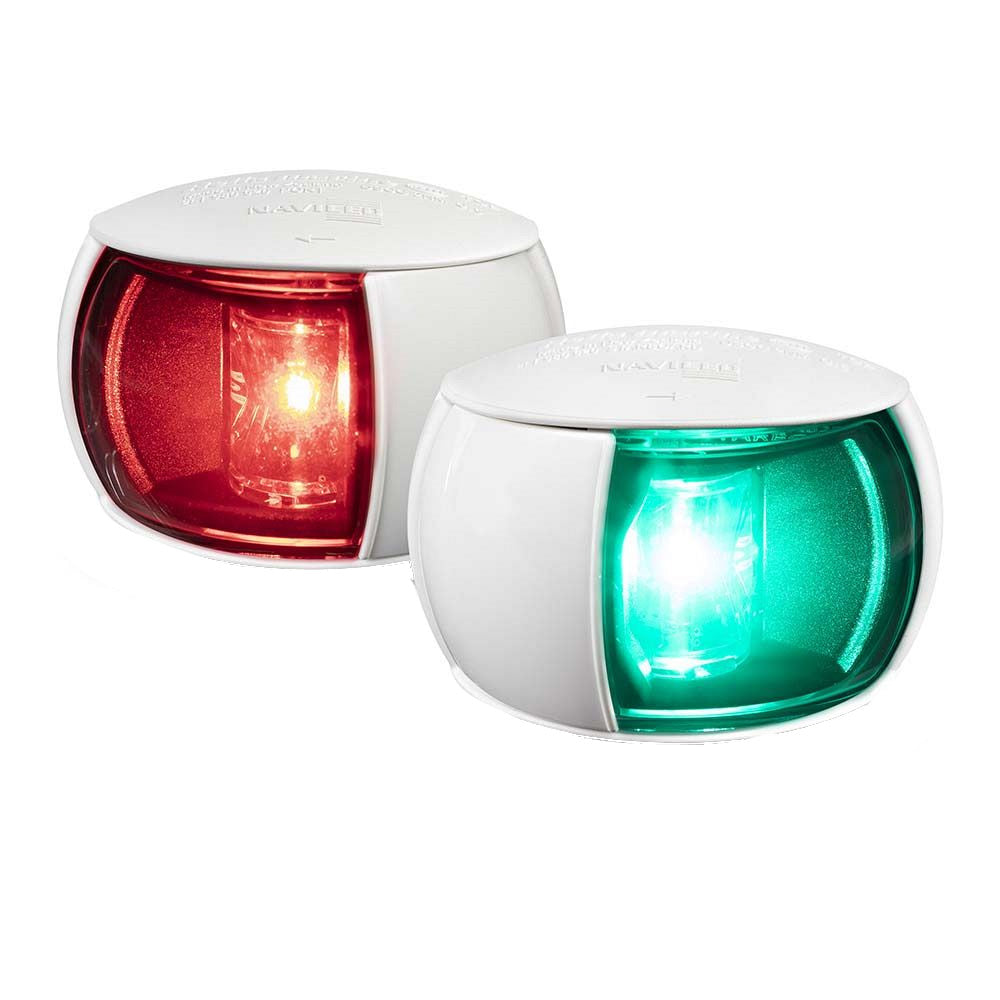

Hella Marine NaviLED Port & Starboard Pair - 2nm - Clear Lens/White Housing
Hella Marine NaviLED Port & Starboard Pair - 2nm - Clear Lens/White Housing is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Upgrade your vessel’s navigation system with the NaviLED Port & Starboard Pair. Engineered for marine environments, these compact LED navigation lamps offer exceptional brightness, energy efficiency, and unmatched reliability. Designed and manufactured in New Zealand, NaviLED® lamps ensure your boat remains visible and compliant while minimizing power consumption.
Exceptional Energy Efficiency
Save power without compromising visibility. NaviLED® lamps consume less than 2W combined, using under 10% of the energy required by traditional bulb navigation lamps with the same visible range. This ultra-low current draw ensures longer battery life and reduces the overall power load on your vessel.
Maintenance-Free Durability
Say goodbye to frequent bulb replacements. NaviLED® lamps utilize Hella marine LED technology, which eliminates the need for fragile filaments. These lamps are shock and vibration-proof, providing consistent performance and safety even in the most demanding marine conditions.
Reliable Power Management
Equipped with Multivolt™ technology, NaviLED® lamps operate seamlessly across a wide voltage range of 9-33V DC. Advanced electronics protect your lamps from voltage spikes up to +500 volts and reverse polarity up to -700 volts, ensuring reliable illumination even during severe electrical fluctuations and low battery voltages.
Built to Withstand the Elements
Each NaviLED® lamp is fully sealed to IP67 standards, offering complete protection against water and dust ingress. The high-impact housings are designed to endure harsh marine environments, including exposure to waves and physical impacts, ensuring a long-lasting performance.
Easy Installation
Pre-wired with marine-grade cables, NaviLED® lamps simplify the installation process. Choose between single-core (120mm) or twin-core (2.5m) sheathed marine cable assemblies for a time-saving, completely sealed setup. The ready-to-install design allows you to focus more on enjoying your boating experience.
Product Specifications
Feature | Details |
---|---|
Material Description | UV-resistant, enhanced impact-resistant acrylic lens with high-impact shroud |
Minimum Visible Distance | 2 Nautical Miles (suitable for yachts and powerboats) |
Cable | Pre-wired with marine cable |
Operating Voltage | Multivolt™ 9-33V DC (previous version: 8-28V DC) |
Voltage Protection | Spike protected to +500 volts, reverse polarity protected to -700 volts |
Power Consumption | Less than 2W combined |
Degree of Protection | IP67 – Completely sealed |
Weight | 60g (with 120mm cable version) |
Approvals | IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ |
Lens Color | Red/Green |
Visible Range | 2 nautical miles |
Housing Color | White |
Input Voltage Range | 12/24V |
LED | Yes |
Box Dimensions | 2"H x 4"W x 8"L |
Weight | 0.4 lbs |
UPC | 9416325196570 |
Additional Resources
Download the Quick Guide (PDF) for installation instructions and detailed product information.
