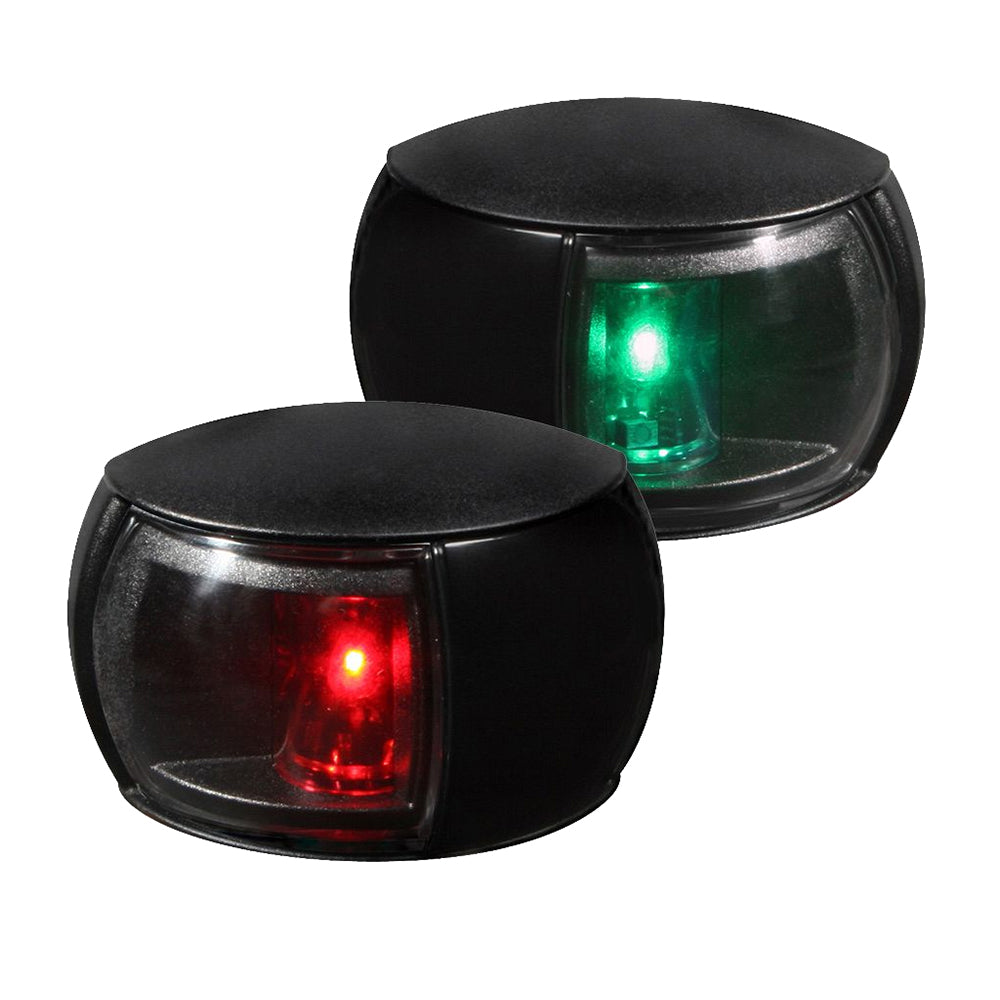

Hella Marine NaviLED Port & Starboard Pair - 2nm - Clear Lens/Black Housing
Hella Marine NaviLED Port & Starboard Pair - 2nm - Clear Lens/Black Housing is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The NaviLED Port & Starboard Pair offers top-of-the-line LED navigation lighting for marine enthusiasts. Engineered for exceptional energy efficiency and long-term reliability, these compact lamps ensure your vessel remains both safe and stylish on the water.
Key Features
- Energy Efficient: Consumes less than 10% of the power required by traditional bulb navigation lamps, with the Port and Starboard lamps using under 2W combined.
- Low Maintenance: LED technology eliminates the need for bulb replacements, offering an ultra-long service life.
- Durable Construction: Shock and vibration-proof design ensures reliability in demanding marine environments.
- Wide Voltage Range: Operates seamlessly between 9-33V DC, handling severe voltage fluctuations and low battery voltages with ease.
- Waterproof: Fully sealed with an IP67 rating, providing complete protection against water ingress.
- Easy Installation: Pre-wired with marine-grade cables, available in single core (120mm) or twin core (2.5m) options for a hassle-free setup.
Technical Specifications
Feature | Details |
---|---|
Material Description | UV resistant, enhanced impact-resistant acrylic lens with high impact shroud |
Minimum Visible Distance | 2 Nautical Miles (suitable for Yachts and Powerboats) |
Cable | Pre-wired with marine cable, available in single core (120mm) or twin core (2.5m) |
Operating Voltage | Multivolt™ 9-33V DC (previous version: 8-28V DC) |
Voltage Protection | Spike protected to +500 volts and reverse polarity protected to -700 volts |
Power Consumption | Less than 2W combined |
Degree of Protection | IP67 - Completely Sealed |
Weight | 60g (with 120mm cable version) |
Approvals | IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ |
Lens Color | Red/Green |
Visible Range (Miles) | 2nm |
Housing | Black |
Voltage - Input Range (Volts) | 12/24V |
LED | Yes |
Box Dimensions | 2"H x 5"W x 9"L |
Weight | 0.2 lbs |
UPC | 9416325196532 |
Why Choose NaviLED® Lamps?
Manufactured in New Zealand, NaviLED® lamps are designed to meet the highest standards of marine safety and performance. Their robust construction ensures they withstand harsh marine conditions, while the advanced LED technology provides bright, reliable illumination with minimal power usage.
Installation Made Easy
Our NaviLED® lamps come pre-wired with high-quality marine cables, available in single core (120mm) or twin core (2.5m) sheathed options. This ensures a time-saving and completely sealed installation, allowing you to focus more on enjoying your time on the water and less on setup.
Additional Resources
Download the Quick Guide (PDF) for detailed installation instructions and usage tips.
