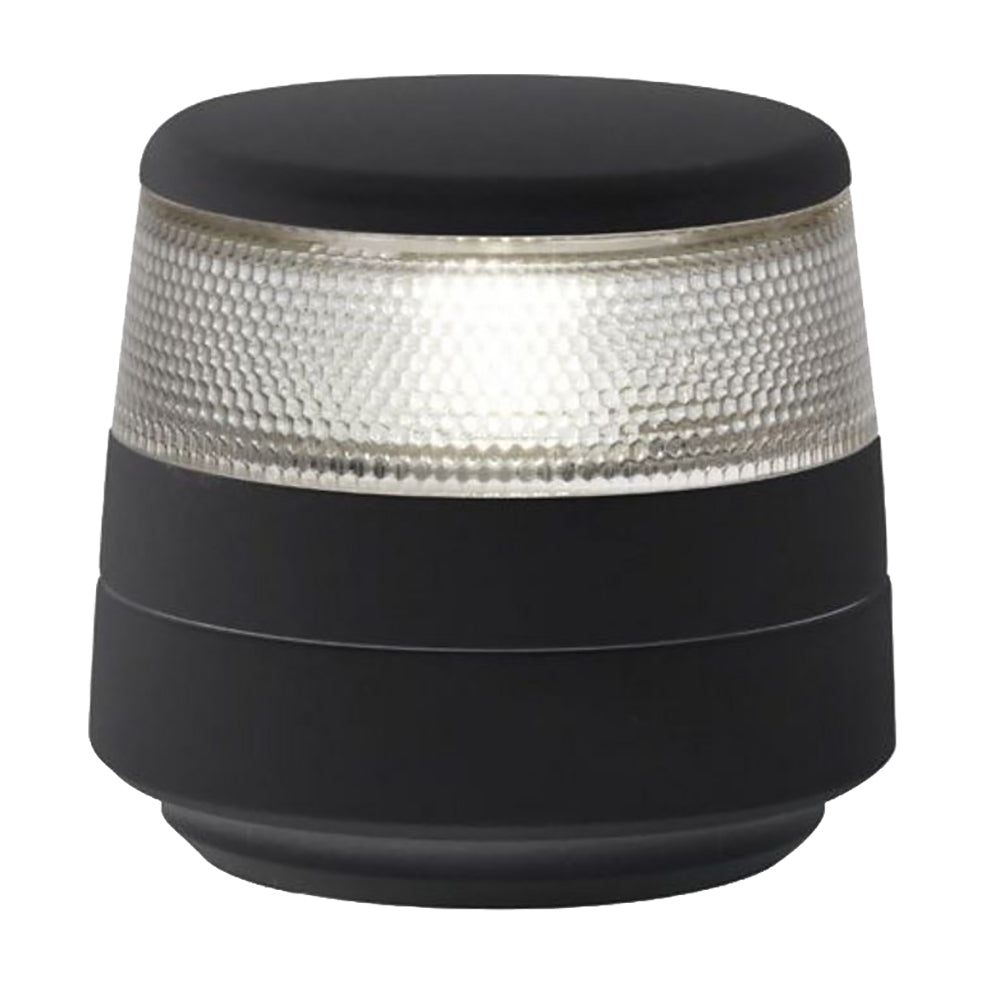

Hella Marine NaviLED 360 Compact All Round White Navigation Lamp - 2nm - Fixed Mount - Black Base

Enhance your vessel's navigation system with the NaviLED 360 Compact All Round White Navigation Lamp. Designed specifically for marine applications, this reliable lighting solution ensures maximum visibility and safety on the water with its advanced LED technology and robust construction.

Key Features

• Energy Efficient: Consumes less than 1W of power, significantly reducing energy usage compared to traditional 2 nautical mile incandescent lamps.
• Ultra Long Service Life: No bulbs to replace, minimizing maintenance needs and ensuring continuous operation.
• Durable Construction: Shock and vibration-proof design built to withstand demanding marine conditions.
• Advanced Multivolt™ Electronics: Operates seamlessly across a wide voltage range (9-33V DC) with protection against reverse polarity, spikes, and over-voltage.
• Enhanced Visibility: Precision optics deliver 100% correct light output, improving visibility over conventional bulb lamps.
• Fully Sealed and Certified: IP67 rated for complete sealing against water and dust, ensuring longevity and reliability.

Energy Efficiency

The NaviLED 360 Compact lamps are designed to provide maximum illumination with minimal power consumption. Operating at less than 1 watt, these LED lamps draw only a fraction of the energy required by traditional incandescent lamps, making them an ideal choice for energy-conscious boaters.

Durability & Maintenance

Featuring Hella marine LED technology, these navigation lamps eliminate the need for bulbs, significantly reducing the risk of filament breakage. The robust construction makes them exceptionally resistant to shock and vibration, ensuring reliable performance even in the harshest marine environments.

Electronic Performance

Equipped with advanced Multivolt™ 9-33V DC electronics, the NaviLED 360 Compact lamps maintain consistent illumination and protect the lamp circuitry from severe voltage fluctuations and low battery voltages. This ensures long-term reliability and seamless operation across a wide range of marine electrical systems.

Visibility & Safety

Hella marine optics provide 100% accurate light output, enhancing visibility compared to traditional bulb navigation lamps. This ensures that your vessel remains visible to others, significantly improving safety during navigation.

Sealing & Certification

Each NaviLED 360 Compact lamp is fully sealed with an IP67 rating, making it completely resistant to water and dust ingress. The high UV and corrosion-resistant plastic housing, along with a heavy-duty Grilamid lens, ensures durability against waves and impacts. These lamps have also been rigorously tested to meet and exceed industry standards, including IMO Col Reg 72, USCG, ABYC A-16, and Maritime NZ certifications.

Specifications

Attribute	Details
Material Description	UV and impact resistant plastic housing and heavy duty Grilamid lens
Visible Range	2 Nautical Miles (Yacht and Powerboats)
Cable	Pre-wired with 500mm of twin core cable
Operating Voltage	Multivolt™ 9-33V DC
Power Consumption	<1W
Degree of Protection	IP67 - Completely Sealed
Weight	90g including cable
Approvals	IMO Col Reg 72, Wheelmark, RCD, USCG, ABYC A-16, Maritime NZ
Lens Color	White
Housing Color	Black
Box Dimensions	3"H x 5"W x 8"L
Weight	0.35 lbs
UPC	9416325230809

Download the Owner's Manual (PDF)
