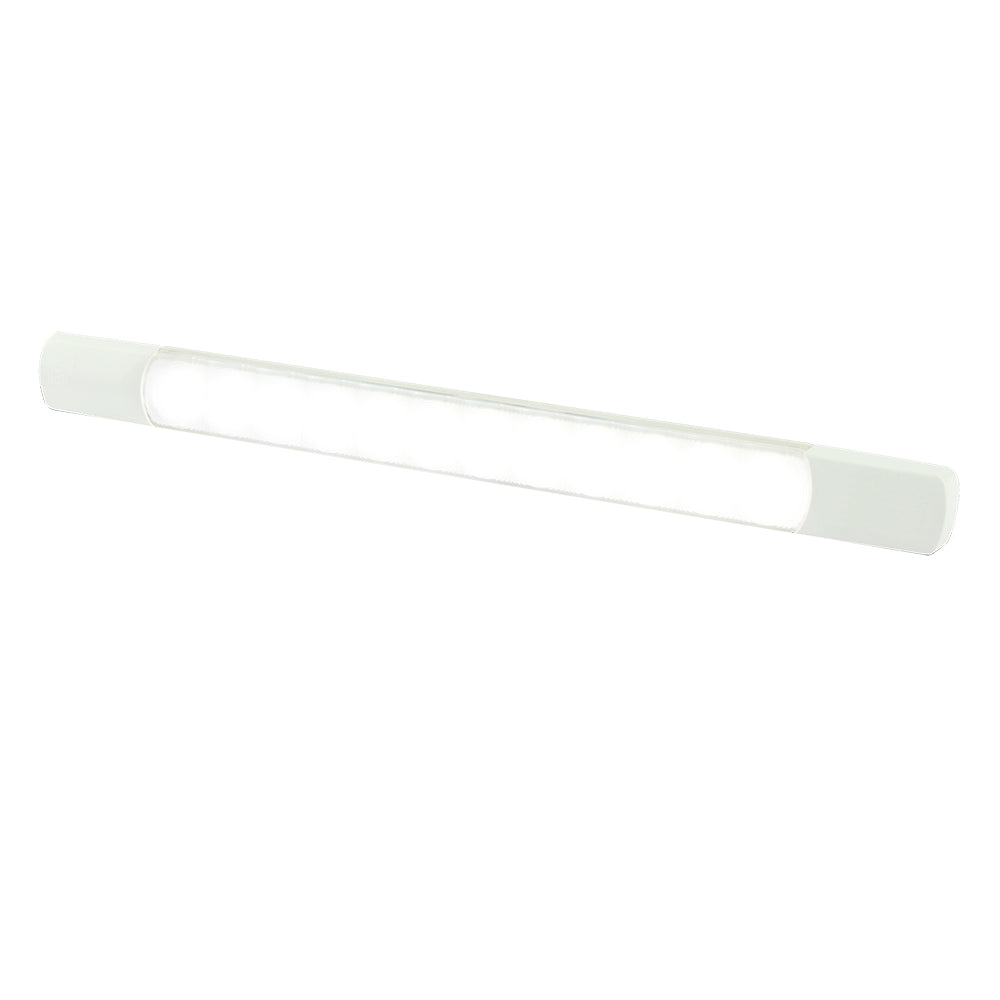

Hella Marine LED Surface Strip Light - White LED - 24V - No Switch

Upgrade your vessel’s lighting with our high-performance LED Surface Strip Light, designed specifically for marine environments. Combining exceptional brightness, energy efficiency, and robust durability, this strip light is the perfect solution for both interior and exterior applications on your boat.

Key Features

• Superior Durability: Completely sealed and UV-resistant, these LED strip lights withstand harsh marine conditions, including salt water, high vibration, impact, and shock loads.
• High Light Output: Produces 250 lumens of bright white light with a color temperature of 5000K, enhancing the visibility and aesthetic of your vessel.
• Energy Efficient: Consumes less than 3W of power, making it an ideal replacement for bulky and power-hungry fluorescent lighting.
• Low Profile Design: Easy surface mount installation with an ultra-sleek profile, complemented by snap-on end caps for a clean and modern look.
• Versatile Applications: Perfect for chart lamps, above benchtops, bulkhead lighting, around bait boards, and more.
• Easy Installation: Pre-wired with 500mm of twin core cable, allowing for quick and hassle-free setup.
• Reliable Performance: Backed by a 5-year warranty, ensuring long-term reliability and peace of mind.

Technical Specifications

Specification	Details
Lens Material	UV resistant enhanced impact acrylic
LED Color	White (5000K)
Light Output	250 lumens
Power Consumption	< 3.0W (< 0.25A @ 12V / < 0.16A @ 24V)
Operating Voltage	12V DC or 24V DC
Dimming	Compatible with Hella Marine Dimmer 5XA 998 572-001
Cable	Pre-wired with 500mm of twin core cable
Degree of Protection	Completely Sealed IP67
Installation	Surface Mount
Weight	75g (including cable)
Approvals	CE Certified
Bulb Type	LED
Housing Color	White
Dimming	No
Box Dimensions	1"H x 4"W x 13"L
Weight	0.3 lbs
UPC	9416325240907

Installation Instructions

The ultra-low profile design of our LED strip lights allows for effortless surface mounting anywhere on your vessel. Follow these simple steps for a seamless installation:

1. Choose the desired location for installation, ensuring it is clean and dry.
2. Align the LED strip light and secure it using the provided snap-on end caps for a neat finish.
3. Connect the pre-wired twin core cable to your power source, ensuring proper polarity.
4. If dimming functionality is desired, integrate the Hella Marine Dimmer 5XA 998 572-001 into your setup.
5. Test the lighting to confirm proper installation and functionality.

Applications

Our LED Surface Strip Lights are versatile and ideal for a variety of marine applications, including but not limited to:

• Chart lamps
• Above benchtops
• Bulkhead lighting
• Around bait boards
• Cabin interiors
• Exterior deck lighting

Why Choose Hella Marine LED Strip Lights?

Designed specifically for the demanding marine environment, Hella Marine LED Surface Strip Lights offer unparalleled durability and performance. Their robust construction ensures resistance against UV rays and corrosion, while the ultra-low power consumption provides energy-efficient lighting solutions without compromising on brightness. Backed by a 5-year warranty, these strip lights are a reliable choice for any boating enthusiast looking to enhance their vessel’s lighting system.

Download Brochure (PDF)
