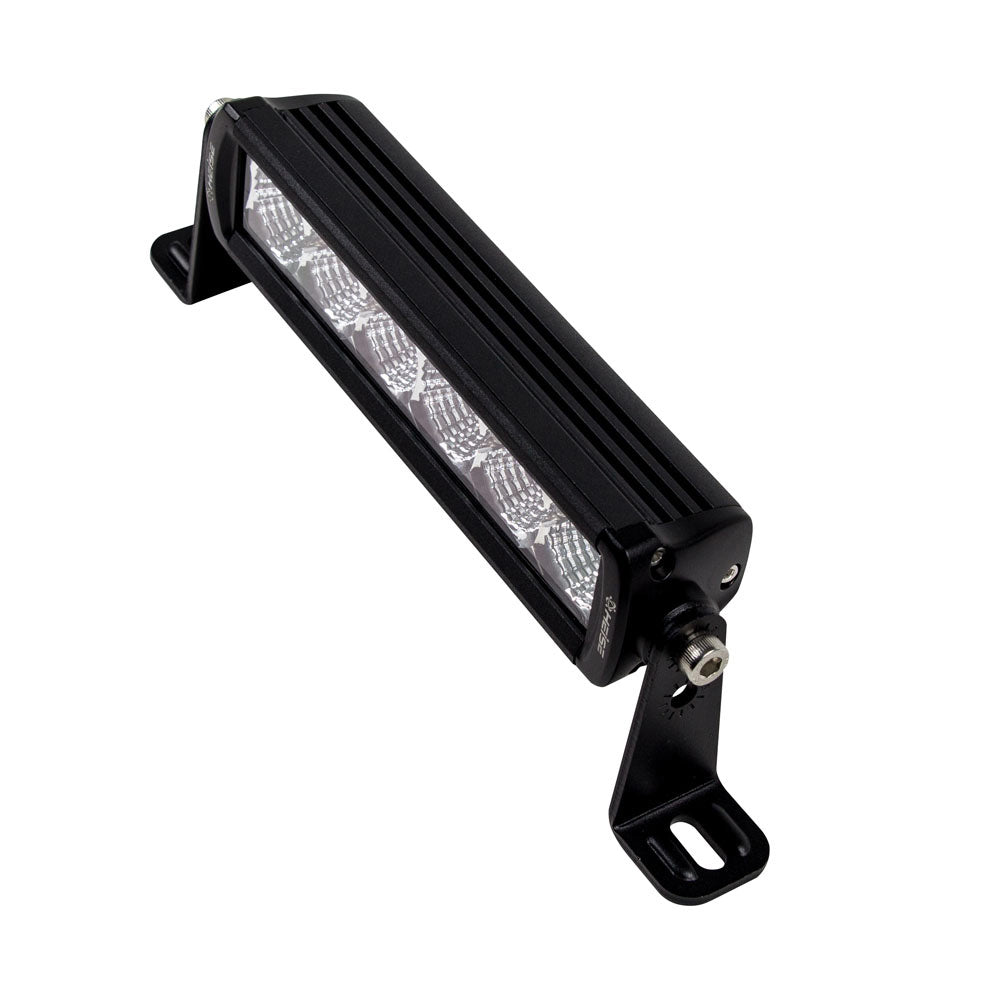

HEISE Single Row Slimline LED Light Bar - 9-1/4"

Ignite your marine adventures with our Single Row Slimline LED Light Bar - a perfect blend of performance and durability designed specifically for boating enthusiasts. Measuring at 9-1/4 inches, this sleek and compact light bar delivers powerful illumination while maintaining a low-profile presence on your vessel.

Key Features

• High-efficiency LEDs: 6–3W OSRAM LEDs producing 1440 raw lumens
• Versatile voltage input: Compatible with 10–30V DC systems
• Bright and clear lighting: 6000K color temperature with a 90° flood beam pattern
• Robust construction: Powder-coated aluminum housing with stainless 316 hardware
• Weather-resistant: IP67 rated for maximum protection against water and dust

Technical Specifications

Attribute	Details
Input Voltage	10–30V DC
Wattage	18W
Raw Lumens	1440
LUX @ 10m	22
Color Temperature	6000K
Beam Pattern	90° Flood
Housing Material	Powder Coated Aluminum
Housing Color	Black
Membrane	Gore™
Lens Material	PC
Dimensions	Height: 2" | Depth: 2" | Length: 9-1/4"
Mounting Options	Side and Bottom Mounting with brackets turned inward (9") or outward (11")
Mounting Bolt Drill	0.25"
Electronics	Integrated–Epoxy Encapsulated
Hardware	Stainless 316
Operating Temperature	–40°C to +60°C
Current Consumption	0.9 amps @ 13.8 volts
IP Rating	IP67
Protections	Reverse Polarity
Box Dimensions	5"H x 5"W x 19"L
Weight	2.85 lbs
UPC	086429317417

Durable Construction for Marine Environments

• Housing: Crafted from powder-coated aluminum in a sleek black finish to resist corrosion and withstand harsh marine conditions.
• Membrane: Equipped with Gore™ membrane ensuring long-lasting waterproof performance.
• Lens: Made from high-quality PC material for clear, durable lighting.
• Hardware: Built with stainless 316 hardware for superior resistance against saltwater and other corrosive elements.

Easy Installation

The Single Row Slimline LED Light Bar offers flexible mounting options to suit your vessel’s layout:

• Mounting Brackets: Available for side and bottom mounting.
• Bracket Orientation: Brackets can be turned inward (9") or outward (11") to accommodate different installation needs.
• Mounting Bolt Drill: Comes with a 0.25" mounting bolt drill for secure and straightforward installation.

Superior Performance

• Lighting Efficiency: Delivers 1440 raw lumens with a 90° flood beam pattern, ensuring excellent visibility on the water.
• Energy Consumption: Consumes only 0.9 amps at 13.8 volts, providing a balance between brightness and energy efficiency.
• Color Temperature: 6000K provides a crisp, bright light ideal for nighttime navigation and activities.

Reliability in All Conditions

• Operating Temperature: Functions flawlessly in extreme temperatures ranging from –40°C to +60°C.
• IP Rating: IP67 ensures protection against dust and temporary submersion, making it ideal for marine use.
• Protections: Features reverse polarity protection to safeguard against electrical mishaps.
