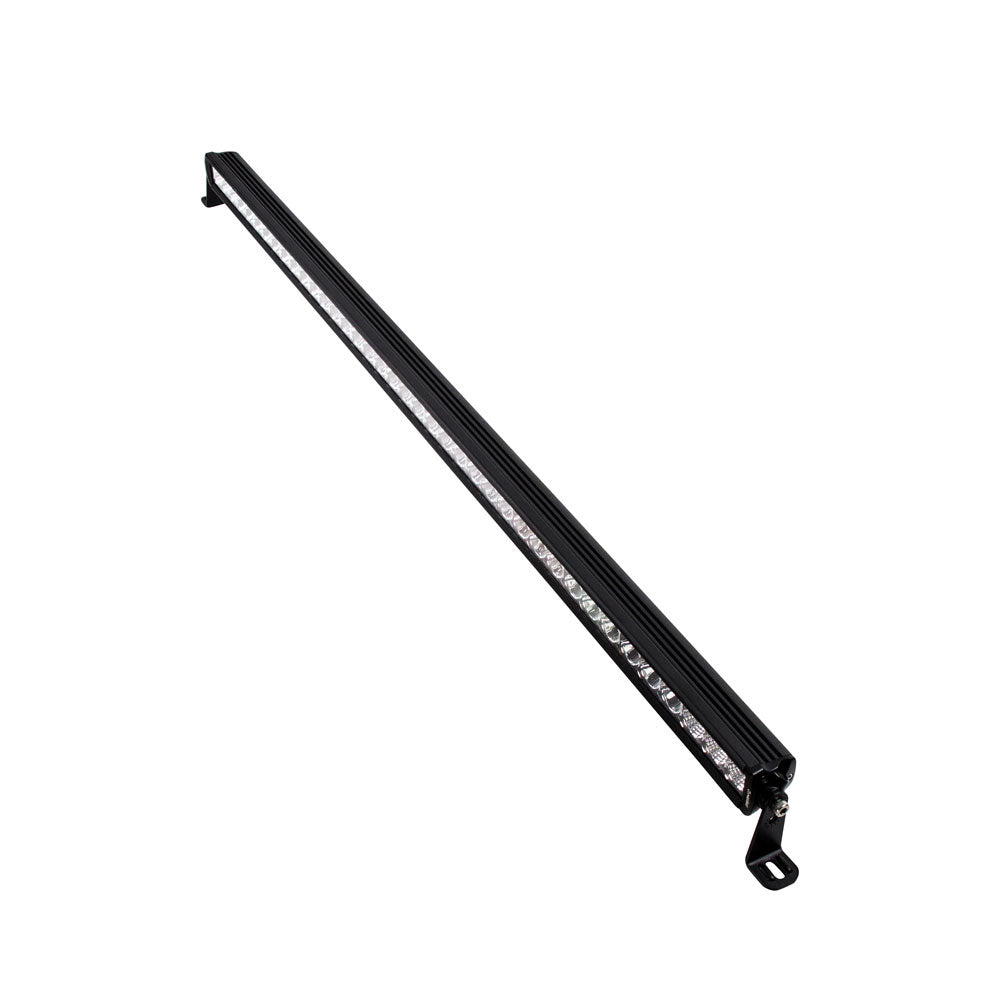

HEISE Single Row Slimline LED Light Bar - 50-3/4"

Enhance your marine lighting setup with our Single Row Slimline LED Light Bar. Designed specifically for the harsh marine environment, this robust and high-performance light bar delivers exceptional brightness and versatility, ensuring optimal visibility and safety on the water.

Key Features

• High Luminosity: Delivers 9360 raw lumens with a color temperature of 6000K for clear and bright illumination.
• Versatile Beam Patterns: Combines flood (90°) and spot (8°) beams to provide comprehensive lighting coverage.
• Durable Construction: Made from powder-coated aluminum housing with stainless 316 hardware for superior corrosion resistance.
• Weatherproof: Rated IP67 for complete protection against dust and water ingress, ensuring reliable performance in all weather conditions.
• Easy Installation: Multiple mounting options with side and bottom brackets, compatible with 12V and 24V systems.
• Energy Efficient: Consumes only 6.5 amps at 13.8 volts, providing powerful lighting without excessive power draw.

Specifications

Attribute	Details
Length	50-3/4 inches
Input Voltage	10–30V DC (Compatible with 12V/24V systems)
Wattage	117W (39–3W OSRAM LEDs)
Raw Lumens	9360
LUX @ 10M	3250
Color Temperature	6000K
Beam Pattern	Combo/Flood (90°)/Spot (8°)
Operating Temperature	–40°C to +60°C
Current Consumption	6.5 amps @ 13.8 volts
IP Rating	IP67
Protections	Reverse Polarity
Box Dimensions	6"H x 6"W x 58"L
Weight	9.6 lbs
UPC	086429317394

Construction

• Housing Material: Powder-coated aluminum for durability and corrosion resistance.
• Housing Color: Sleek black finish to complement any marine vessel.
• Membrane: Gore™ membrane ensures waterproof performance.
• Lens Material: High-quality PC (polycarbonate) lens for maximum light transmission and impact resistance.
• Mounting Bracket: Die-cast aluminum brackets designed for secure and stable installation.
• Mounting Options: Side and bottom mounting for versatile placement on your vessel.
• Hole Dimensions:
  • Brackets turned inward – 50.50"
  • Brackets turned outward – 52.50"
  • Mounting Bolt Drill – .25"
• Light Bar Dimensions:
  • Height: 2"
  • Depth: 2"
• Electronics: Integrated–epoxy encapsulated for protection against moisture and vibration.
• Hardware: Stainless 316 hardware ensures long-lasting performance in marine environments.

Installation

Installing the Single Row Slimline LED Light Bar is straightforward with multiple mounting options. Whether you prefer side or bottom mounting, the die-cast aluminum brackets provide a secure fit. Ensure proper alignment using the provided hole dimensions for both inward and outward bracket orientations.

Performance

Designed to operate in extreme conditions, this LED light bar functions efficiently between –40°C to +60°C. Its IP67 rating guarantees resistance against dust and temporary submersion, making it ideal for all marine applications. The integrated reverse polarity protection safeguards your electrical system, ensuring reliable operation every time you set sail.
