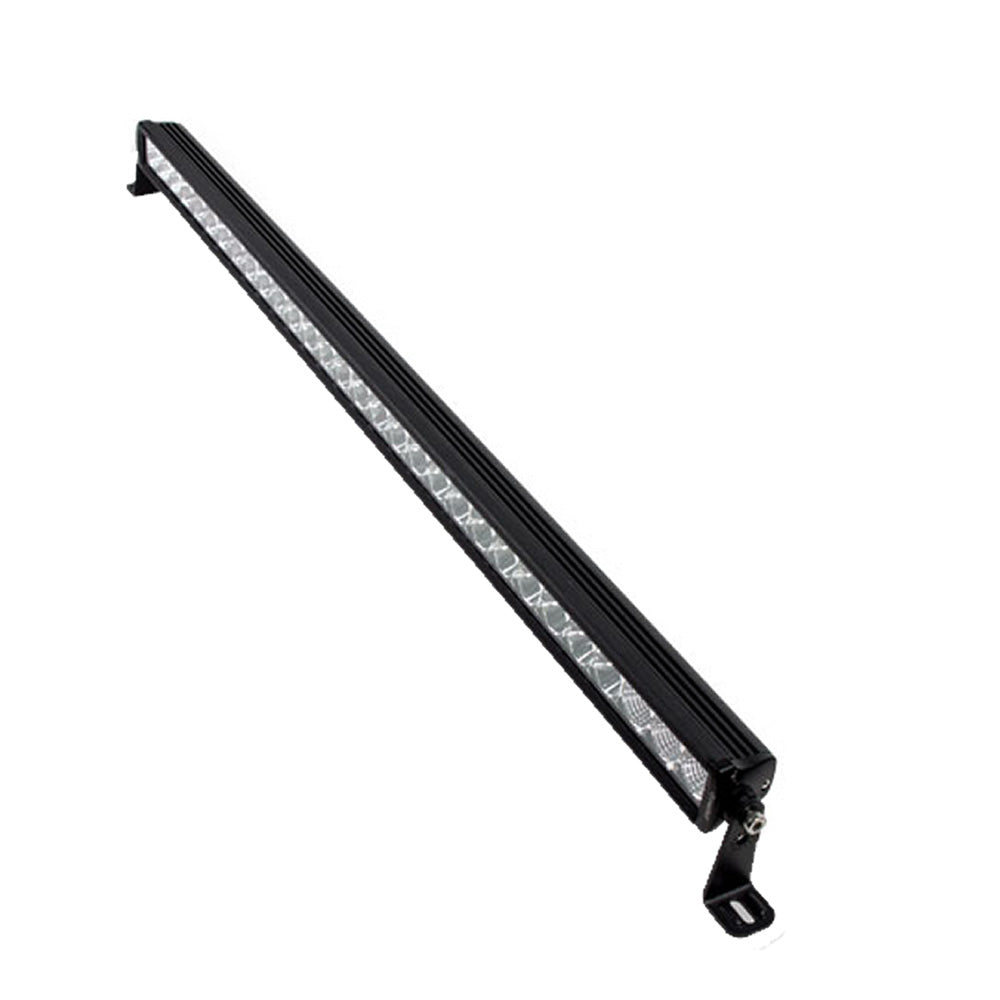

HEISE Single Row Slimline LED Light Bar - 39-1/4"

Enhance your marine lighting with our Single Row Slimline LED Light Bar. Designed specifically for boats and marine environments, this durable and high-performance light bar delivers exceptional illumination, ensuring safety and visibility on the water.

Specifications

Input Voltage	10–30V DC
Wattage	90W (30–3W OSRAM LEDs)
Raw Lumens	7200
LUX @ 10M	2920
Color Temperature	6000K
Beam Pattern	Combo: Flood (90°) / Spot (8°)
Length	39.25"
Housing	Black Powder Coated Aluminum
Voltage - Input Range	12/24V
Box Dimensions	5"H x 5"W x 49"L
Weight	7.5 lbs
UPC	086429317387

Construction

Housing Material	Powder Coated Aluminum
Housing Color	Black
Membrane	Gore™
Lens Material	Polycarbonate (PC)
Mounting Bracket	Die–cast Aluminum
Mounting Options	Side and Bottom
Mounting Hole Dimensions	Brackets turned inward – 39" Brackets turned outward – 41" Mounting Bolt Drill – .25"
Height of Light Bar	2"
Depth of Light Bar	2"
Electronics	Integrated – Epoxy Encapsulated
Hardware	Stainless 316

Operational Features

Operating Temperature	–40°C to +60°C
Current Consumption	4.9 amps @ 13.8 volts
IP Rating	IP67
Protections	Reverse Polarity

Beam Pattern

The Single Row Slimline LED Light Bar features a versatile beam pattern combination, offering both flood and spot lighting. The flood beam provides a wide 90° spread for broad area illumination, while the spot beam delivers a focused 8° intensity for long-distance visibility.

Installation

Designed for easy installation on marine vessels, the light bar comes with die-cast aluminum mounting brackets that can be secured on both the side and bottom of your boat. The mounting holes are configured to accommodate various setups with brackets turned inward at 39" or outward at 41". A .25" mounting bolt drill is required for installation.

Compliance

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
