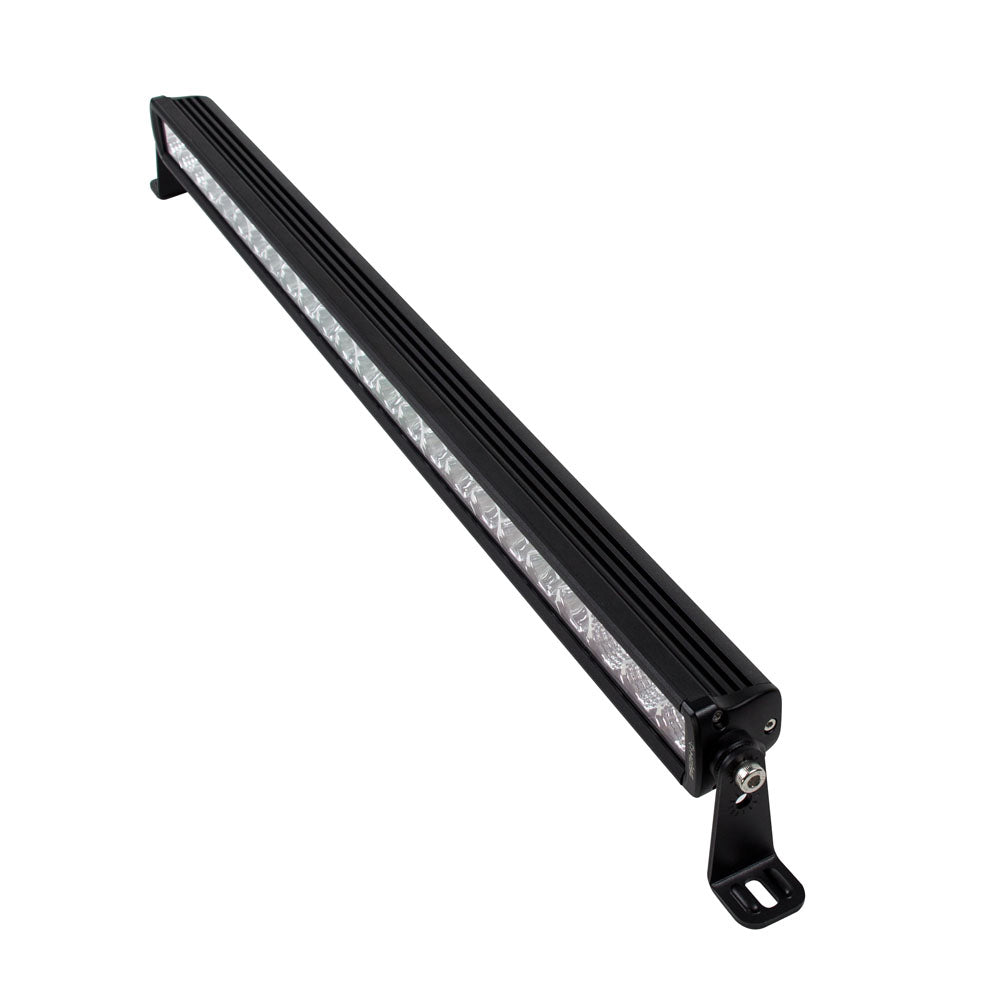

HEISE Single Row Slimline LED Light Bar - 32"

Upgrade your marine lighting with our Single Row Slimline LED Light Bar - 32", designed specifically for boating applications. This high-performance light bar delivers exceptional brightness and durability, ensuring visibility and safety on the water.

Key Features

• High Luminosity: Raw Lumens of 5760 provide superior illumination.
• Energy Efficient: Consumes only 72W with a current consumption of 4 amps @ 13.8 volts.
• Robust Construction: Crafted from powder-coated aluminum and stainless 316 hardware for longevity.
• Versatile Beam Pattern: Combines flood (90°) and spot (8°) beams for comprehensive lighting coverage.
• Weather Resistant: Rated IP67 for protection against dust and water ingress.

Specifications

Attribute	Details
Length	32 inches
Input Voltage	10–30V DC
Wattage	72W (24–3W OSRAM LEDs)
Raw Lumens	5760
LUX @ 10M	2200
Color Temperature	6000K
Operating Temperature	–40°C to +60°C
Voltage - Input Range	12/24V
Box Dimensions	6"H x 8"W x 44"L
Weight	5.2 lbs
UPC	086429317370

Construction

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting Options: Side and Bottom
• Hole Dimensions:
  • Brackets turned inward – 31.75"
  • Brackets turned outward – 33.75"
  • Mounting Bolt Drill – .25"
• Dimensions:
  • Height of Light Bar: 2"
  • Depth of Light Bar: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

Performance

Specification	Value
Beam Pattern	Spot-Flood Combo (90° Flood / 8° Spot)
LUX at 10 Meters	2200
Raw Lumens	5760
Color Temperature	6000K

Durability and Protection

• IP Rating: IP67 - Fully protected against dust and temporary immersion in water.
• Protections: Reverse Polarity protection ensures safe operation.

Installation

Easy to install with both side and bottom mounting options. The die-cast aluminum brackets provide secure attachment points, suitable for various marine applications.
