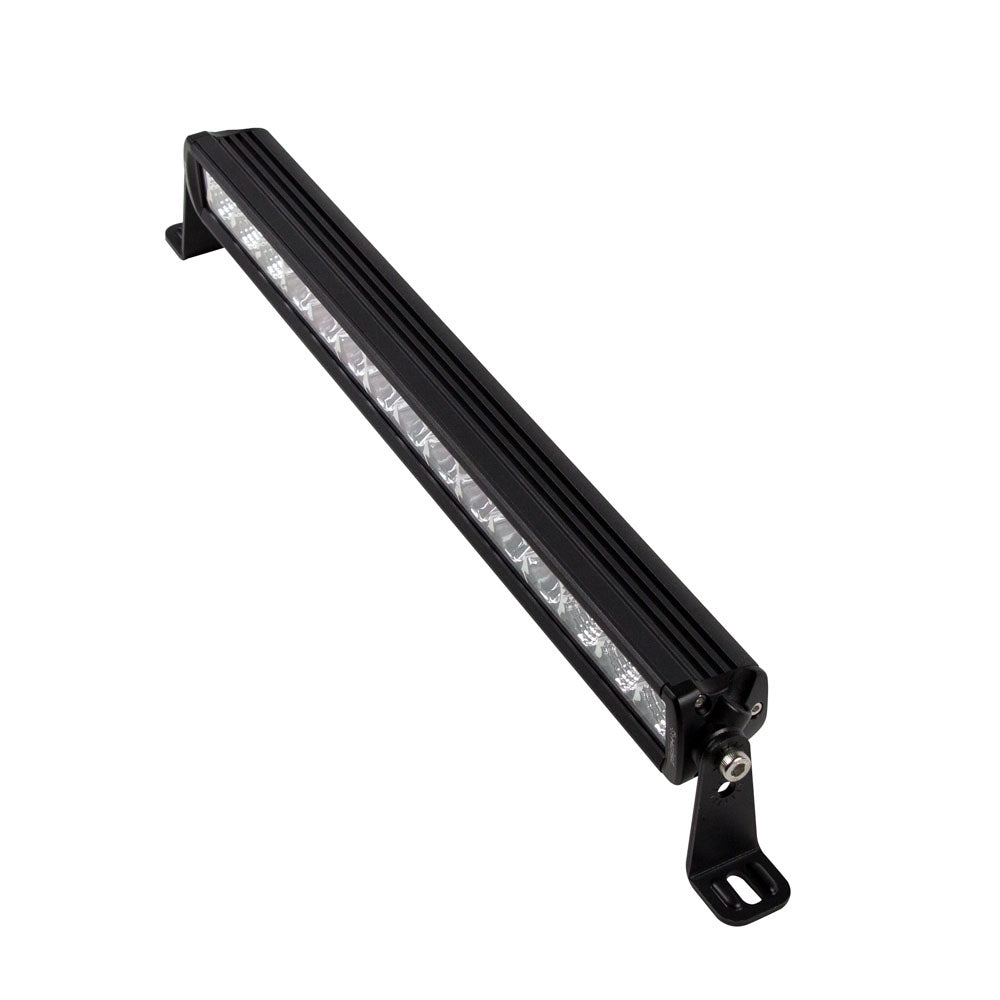

HEISE Single Row Slimline LED Light Bar - 20-1/4"

Enhance your vessel's lighting with our Single Row Slimline LED Light Bar. Designed specifically for marine and boating applications, this sleek and durable light bar delivers exceptional brightness and performance, ensuring optimal visibility and safety on the water.

Product Specifications

Feature	Details
Input Voltage	10–30V DC
Wattage	45W (15–3W OSRAM LEDs)
Raw Lumens	3600
LUX @ 10M	1280
Color Temperature	6000K
Beam Pattern	Combo/Flood (90°) / Spot (8°)

Construction

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: Polycarbonate (PC)
• Mounting Bracket: Die-cast Aluminum
• Mounting Options: Side and Bottom
• Hole Dimensions:
  • Brackets turned inward – 20"
  • Brackets turned outward – 22"
  • Mounting Bolt Drill – 0.25"
• Light Bar Dimensions:
  • Height: 2"
  • Depth: 2"
• Electronics: Integrated – Epoxy Encapsulated
• Hardware: Stainless Steel 316

Performance and Durability

• Operating Temperature: –40°C to +60°C
• Current Consumption: 2.4 amps @ 13.8 volts
• IP Rating: IP67 (Waterproof and Dustproof)
• Protections: Reverse Polarity Protection

Installation and Mounting

Our LED Light Bar is designed for easy installation on your marine vessel. The die-cast aluminum mounting brackets provide secure attachment points, allowing for both side and bottom mounting options. The precise hole dimensions ensure a stable fit, while the slimline design minimizes bulk without compromising on lighting performance.

Why Choose Our LED Light Bar?

- High Brightness: With 3600 raw lumens and a versatile beam pattern, our light bar ensures excellent visibility in various marine conditions. - Durable Construction: Built with powder-coated aluminum and stainless steel hardware, this light bar withstands the harsh marine environment. - Energy Efficient: Consuming only 2.4 amps, it provides powerful lighting without draining your vessel's power supply. - Weather Resistant: Rated IP67, it offers reliable performance in both wet and dusty conditions.

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Beam Pattern: Spot-Flood Combo
• Length: 20.25"
• Housing Color: Black
• Input Voltage Range: 12V / 24V
• Box Dimensions: 5"H x 6"W x 31"L
• Weight: 4.6 lbs
• UPC: 086429317363
