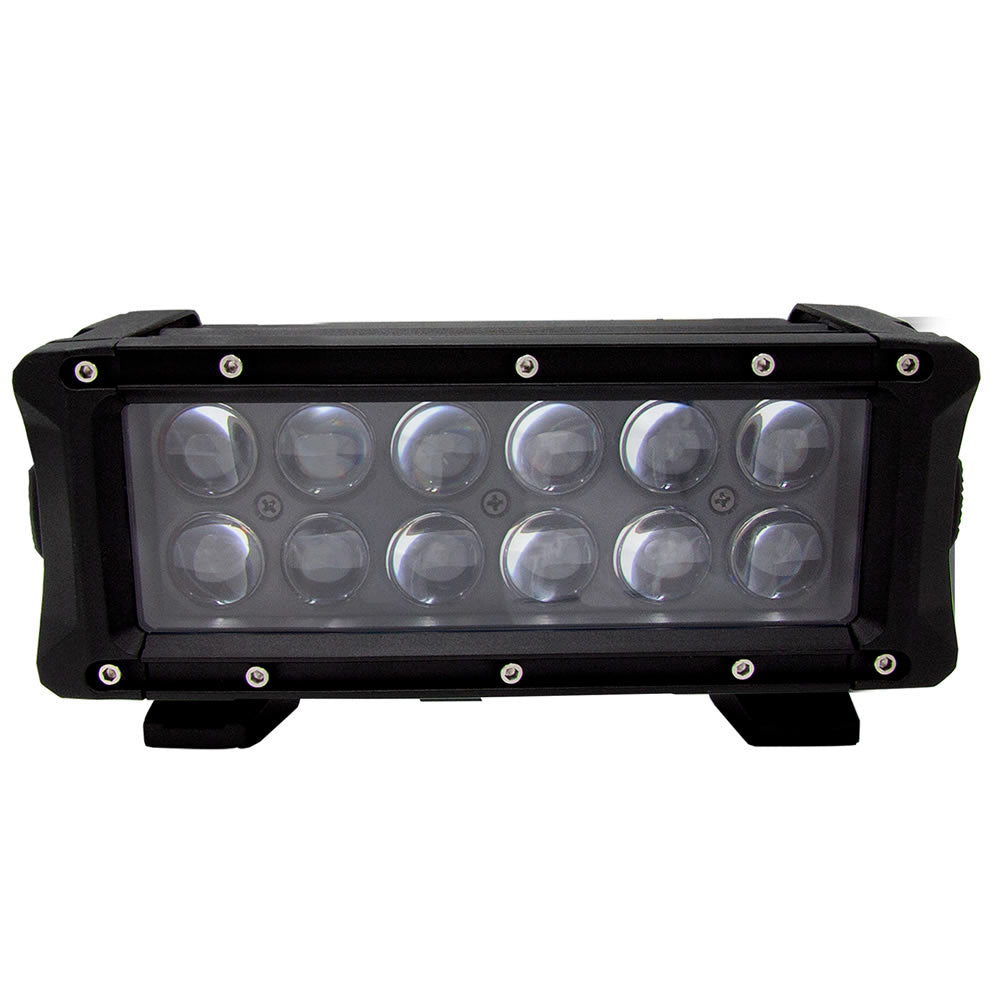

HEISE Infinite Series 8" RGB Backlite Dualrow Bar - 12 LED

The Infinite Series 8" RGB Backlite Dualrow Bar is the ultimate lighting solution for marine and boating enthusiasts. Designed to enhance both the aesthetics and functionality of your vessel, this durable light bar offers customizable lighting options to suit any maritime environment, ensuring optimal visibility and style on the water.

Features

• Pure white light complemented by 16 million selectable RGB colors for versatile backlighting
• Easy control via a user-friendly mobile app, allowing seamless customization
• Military-grade breather port ensures moisture resistance, ideal for marine conditions
• Virtually unbreakable polycarbonate lens withstands the toughest environments
• Compatible with Heise's popular RGB accent lights for synchronized lighting effects
• HE-CBRGB controller (sold separately) required for full RGB functionality

Technical Specifications

Parameter	Details
Input Voltage	10-30V DC
Wattage	18W
Raw Lumens	2280
LUX @ 10M	235
Color Temperature	6000K
Beam Pattern	Spot (8°)
Length	8"
Voltage Input Range	12/24V

Construction Details

• Housing Material: Die-cast Aluminum
• Housing Color: Black
• Lens Material: Polycarbonate (PC)
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward - 7.25", Brackets turned outward - 9.5"
• Mounting Bolt Drill Size: 0.25"
• Dimensions: Height - 4.8", Depth - 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operational Parameters

• Operating Temperature: -40°C to +60°C
• Current Consumption: 1.3A @ 13.8V
• IP Rating: IP67 (Dust tight and water-resistant)
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
