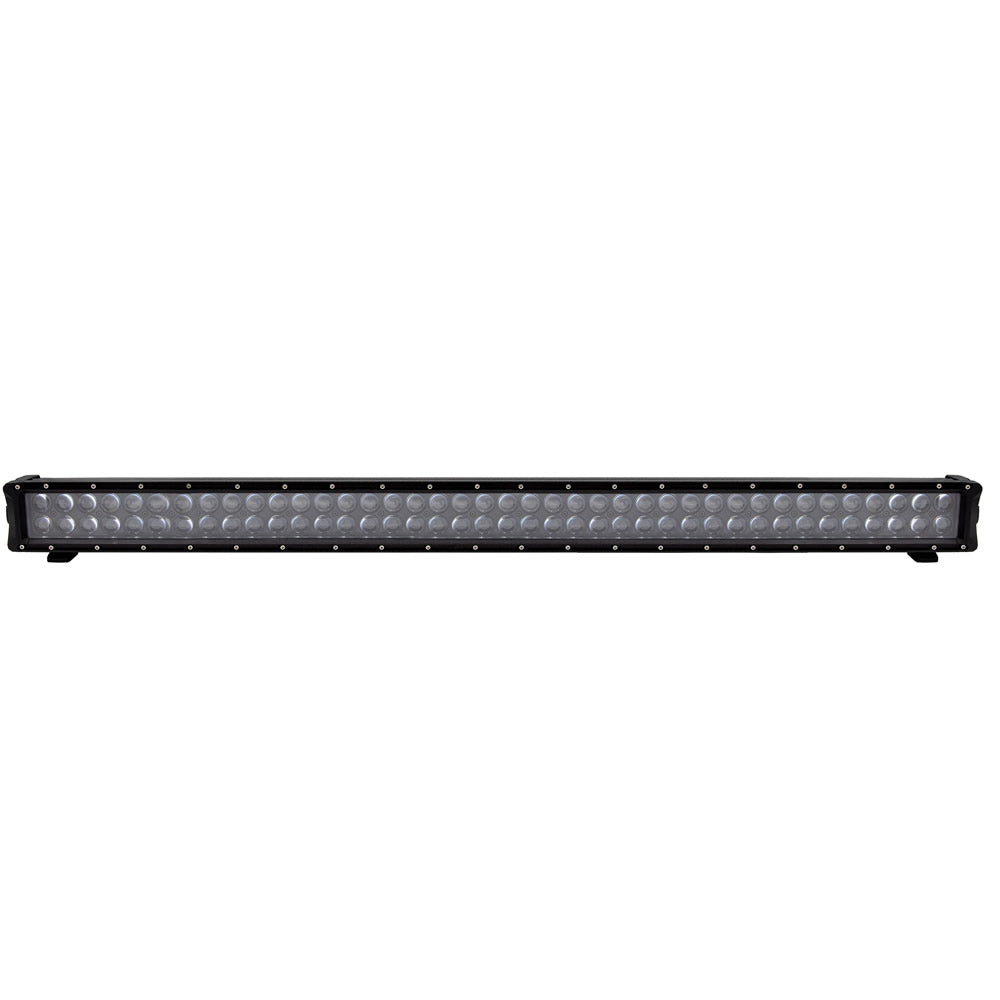

HEISE Infinite Series 40" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series 40" RGB Backlite Dualrow Bar is the ultimate lighting solution for marine and boating enthusiasts. Engineered to deliver exceptional performance in the harshest marine environments, this dual-row bar features 24 high-intensity LEDs that provide both pure white light and 16 million customizable RGB colors, all seamlessly controlled via a user-friendly mobile app.

Key Features

• 24 premium LEDs for superior illumination
• Pure white light and 16 million selectable RGB colors
• App-controlled lighting with seamless synchronization
• Military-grade breather port for moisture resistance
• Durable polycarbonate lens designed for extreme conditions
• Compatible with HE-CBRGB controller (sold separately)

Specifications

Feature	Details
Input Voltage	10-30V DC
Wattage	114W
Raw Lumens	14,440
LUX @ 10M	1,780
Color Temperature	6000K
Beam Pattern	Spot (8°)
Length	40"
Voltage - Input Range	12/24V
Box Dimensions	6"H x 6"W x 47"L
Weight	12.8 lbs
UPC	086429368990

Construction

• Housing Material: Die-cast aluminum housing for superior strength and durability
• Housing Color: Sleek black finish to complement any vessel
• Lens Material: Impact-resistant polycarbonate (PC) for maximum protection
• Mounting Bracket: Die-cast aluminum ensures secure and stable installation
• Hole Dimensions: Brackets turned inward – 39.25" | outward – 41.5"
• Mounting Bolt Drill Size: 0.25"
• Dimensions: Height – 4.8" | Depth – 3.50"
• Electronics: Integrated epoxy encapsulated for enhanced waterproofing
• Hardware: Stainless 316 for exceptional corrosion resistance

Performance and Durability

The Infinite Series Dualrow Bar is specifically designed for demanding marine applications. With an extensive operating temperature range of -40°C to +60°C, it performs reliably in diverse climates. Its IP67 rating guarantees complete protection against dust and temporary submersion, making it ideal for adventurous boating activities. Additionally, the integrated reverse polarity protection safeguards your boat’s electrical system, ensuring long-lasting performance.

Control and Compatibility

Customize your marine lighting effortlessly using the intuitive mobile app, which allows for synchronization and control of multiple Infinite Series bars. For advanced RGB functionality, pair it with the HE-CBRGB controller, sold separately. Whether illuminating your deck with pure white light or creating vibrant color schemes for ambiance, the Infinite Series offers unparalleled flexibility and control to enhance your boating experience.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
