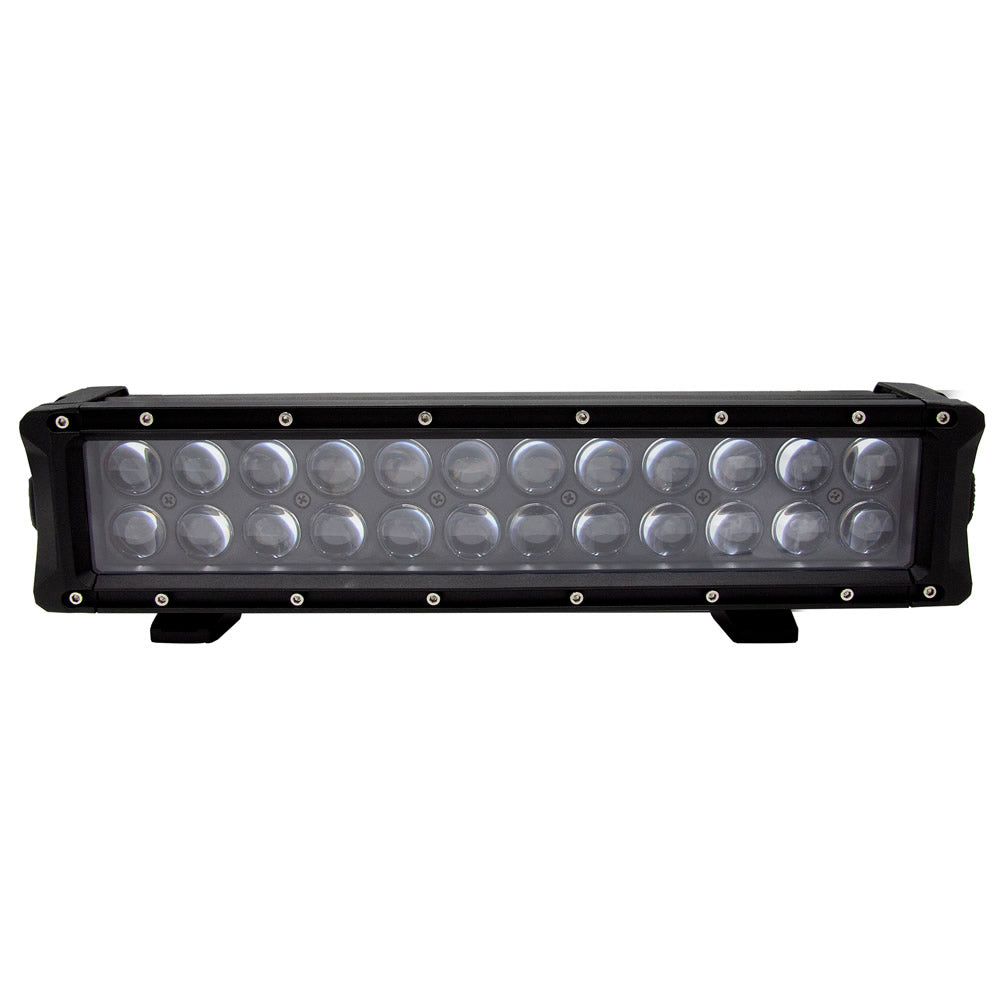

HEISE Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

Enhance your vessel's lighting with the Infinite Series 14" RGB Backlite Dualrow Bar. Designed specifically for marine environments, this robust and versatile light bar delivers stunning illumination and vibrant color options, all controllable via a user-friendly mobile app. Whether you're navigating through the night or showcasing your boat's aesthetics, the Infinite Series ensures reliability and performance in the harshest conditions.

Key Features

• Dynamic Lighting Options: Choose from pure white light or 16 million selectable colors to create the perfect ambiance on your boat.
• Mobile App Control: Easily manage your lighting settings, synchronize multiple light bars, and customize colors and patterns directly from your smartphone.
• Durable Construction: Constructed with a virtually unbreakable polycarbonate lens and die-cast aluminum housing, ensuring longevity and resistance to marine elements.
• Moisture Protection: The military-grade breather port effectively allows moisture to escape, preventing fogging and corrosion.
• Seamless Integration: Compatible with Heise's popular RGB accent lights, allowing for synchronized lighting across your vessel.
• IP67 Rated: Provides superior protection against dust and water, making it ideal for various marine applications.

Technical Specifications

Specification	Details
Input Voltage	10-30V DC
Wattage	36W
Raw Lumens	4560
LUX @ 10M	660
Color Temperature	6000K
Beam Pattern	Spot (8°)
Operating Temperature	-40°C to +60°C
Current Consumption	2.6 amps @ 13.8 volts
IP Rating	IP67
Protections	Reverse Polarity

Build and Construction

• Housing Material: Die-cast aluminum housing for maximum durability and corrosion resistance.
• Housing Color: Sleek black finish to blend seamlessly with your boat's aesthetics.
• Lens Material: High-quality polycarbonate (PC) lens that resists impact and environmental damage.
• Mounting Bracket: Sturdy die-cast aluminum brackets with inward dimensions of 13.25" and outward dimensions of 15.5" for versatile installation options.
• Mounting Specifications:
  • Mounting Bolt Drill Size: 0.25"
  • Height of Light Bar: 4.8"
  • Depth of Light Bar: 3.50"
• Electronics: Integrated-epoxy encapsulated for protection against moisture and vibrations.
• Hardware: Made from stainless 316 for superior resistance to corrosion in marine environments.

Installation and Operation

Installing the Infinite Series 14" RGB Backlite Dualrow Bar on your vessel is straightforward with the provided die-cast aluminum mounting brackets. Ensure secure attachment using the appropriate mounting bolts and follow the included guidelines for optimal placement.

• Operating Temperature Range: Suitable for extreme climates, from -40°C to +60°C.
• Power Requirements: Operates efficiently within a 10-30V DC input range, making it compatible with most marine power systems.
• Energy Consumption: Consumes 2.6 amps at 13.8 volts, balancing performance with energy efficiency.
• Control: Requires the HE-CBRGB controller (sold separately) for full RGB functionality and mobile app integration.

Additional Information

Detail	Specification
Length	14 inches
Voltage Input Range	12/24V
Box Dimensions	6"H x 6"W x 19"L
Weight	5.45 lbs
UPC	086429368426
