HEISE LED Lighting Systems  |  SKU: LOS-69772  |  Barcode: 086429348275

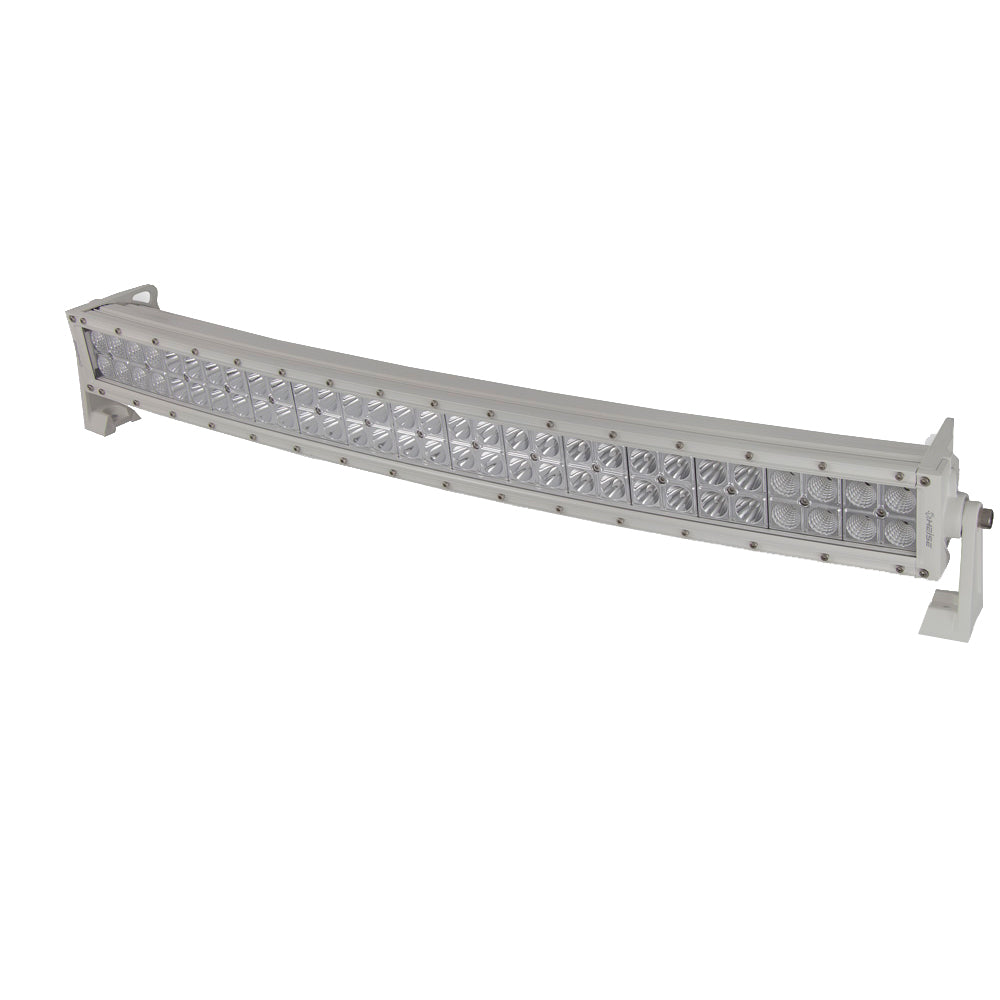

HEISE Dual Row Marine LED Curved Light Bar - 30"

$617.99 USD $686.99

Product Description

Enhance your vessel’s lighting with our Dual Row Marine LED Curved Light Bar. Designed specifically for marine environments, this robust 30-inch light bar delivers exceptional brightness and durability, ensuring maximum visibility and safety on the water.

Key Features

  • High-Performance LEDs: Equipped with 60 high-efficiency CREE LEDs, delivering a powerful 14400 raw lumens for superior illumination.
  • Versatile Beam Pattern: Combo of flood (90 degrees) and spot (8 degrees) beams to provide comprehensive lighting coverage tailored to your needs.
  • Durable Construction: Constructed with die-cast aluminum housing and stainless 316 hardware, ensuring longevity in harsh marine conditions.
  • Weather Resistant: IP67 rating and Gore® membrane protection resist water, dust, and UV exposure for reliable performance.
  • Easy Installation: Includes die-cast aluminum mounting brackets with precise hole dimensions for a secure fit on various vessels.

Specifications

Measurement Details
Length 30 inches
Input Voltage 10-30V DC
Wattage 180 W
LEDs 60 CREE LEDs (3W each)
Raw Lumens 14,400
LUX at 10m 625
Color Temperature 6000K
Beam Pattern Combo/Flood 90° / Spot 8°

Construction

Component Material/Details
Housing Material Die-Cast Aluminum
Housing Color White Coating with UV Inhibitors
Membrane Gore®
Lens Material Polycarbonate (PC)
Mounting Bracket Die-Cast Aluminum
Hole Dimensions
  • Brackets Turned Inward: 31 inches
  • Brackets Turned Outward: 33.5 inches
  • Mounting Bolt Drill: 25 inches
Height of Light Bar 3 inches
Depth of Light Bar 3.5 inches
Electronics Integrated-Epoxy Encapsulated
Hardware Stainless 316

Operation

Parameter Specification
Operating Temperature –40°C to +60°C
Current Consumption 9.5 Amps at 13.8 Volts
IP Rating IP67
Protections Reverse Polarity Protection

Safety Information

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

  • Beam Pattern: Spot-Flood Combo
  • Housing Color: White
  • Voltage - Input Range: 12/24V
  • Box Dimensions: 6" H x 9" W x 35" L
  • Weight: 10.8 lbs
  • UPC: 086429348275

Download the Quick Guide (PDF)
