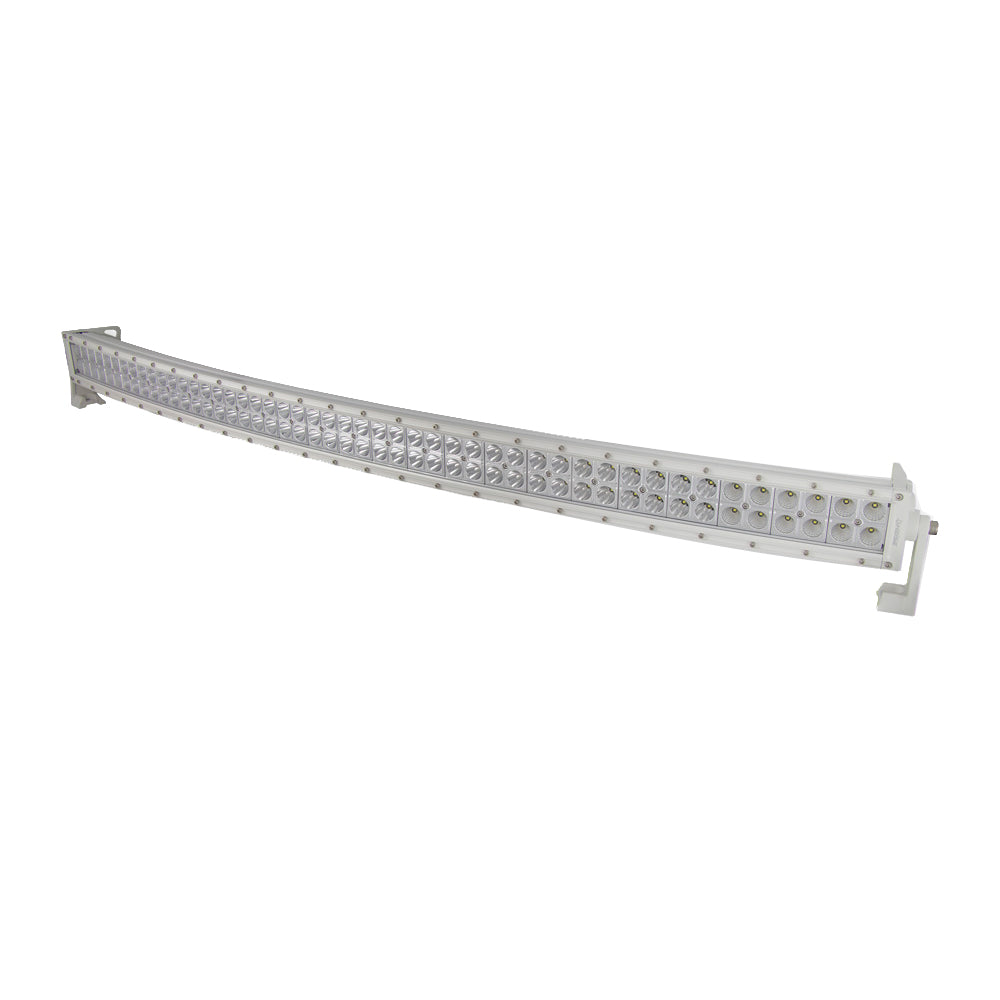

HEISE Dual Row Marine Curved LED Light Bar - 42"

The Dual Row Marine Curved LED Light Bar - 42" is engineered to provide unparalleled illumination for your marine adventures. Designed with durability and performance in mind, this LED light bar ensures superior visibility and reliability in all weather conditions, making it an essential addition to any boating setup.

Key Features

• Dual row configuration with 80 high-performance CREE LEDs for maximum brightness
• Versatile beam pattern offering a combination of flood and spot lighting
• Energy-efficient operation with a wide input voltage range of 10-30V DC
• Robust die-cast aluminum housing with a white UV-inhibiting coating for enhanced durability
• IP67 rated for complete protection against dust and water ingress
• Integrated reverse polarity protection to safeguard your electrical system

Specifications

Parameter	Details
Input Voltage	10-30V DC
Wattage	240 W
LEDs	80-3W CREE LEDs
Raw Lumens	19,200
LUX at 10M	780
Color Temperature	6000K
Beam Pattern	Combo: Flood 90° / Spot 8°
Operating Temperature	-40°C to +60°C
Current Consumption	12 Amps at 13.8 Volts
IP Rating	IP67
Voltage - Input Range	12/24V
Box Dimensions	5"H x 8"W x 45"L
Weight	13 lbs
UPC	086429348282

Build Quality

• Housing Material: Die-Cast Aluminum for lightweight strength
• Housing Color: White coating with UV inhibitors to prevent fading
• Membrane: Gore® membrane for enhanced protection
• Lens Material: Polycarbonate (PC) lens for clarity and impact resistance
• Mounting Bracket: Durable die-cast aluminum brackets
• Hardware: Stainless 316-grade hardware to resist corrosion

Dimensions

Component	Measurement
Length	42 inches
Height of Light Bar	3 inches
Depth of Light Bar	3.5 inches
Brackets Turned Inward	41 inches
Brackets Turned Outward	43.5 inches
Mounting Bolt Drill	25 inches

Performance

Achieve exceptional visibility on the water with a raw lumen output of 19,200 and a lux rating of 780 at 10 meters. The 6000K color temperature ensures a bright, cool light that enhances night-time navigation and safety. The beam pattern combines a wide 90-degree flood and a focused 8-degree spot, providing both broad area illumination and long-range visibility.

Installation

Installing the Dual Row Marine Curved LED Light Bar is straightforward thanks to its precision-engineered mounting brackets. The die-cast aluminum brackets offer flexibility with measurements tailored for various boat configurations:

• Brackets Turned Inward: 41 inches
• Brackets Turned Outward: 43.5 inches
• Mounting Bolt Drill: 25 inches

Ensure a secure fit using the stainless 316 hardware provided, designed to withstand harsh marine environments.

Durability and Protection

Built to endure the rigors of marine environments, this LED light bar features an IP67 rating, providing complete protection against dust and temporary immersion in water. The housing is constructed from die-cast aluminum with a UV-inhibiting white coating, and all electronics are integrated and epoxy encapsulated to ensure long-lasting performance. Additionally, the light bar includes reverse polarity protection to prevent electrical mishaps.

Compliance & Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) for detailed installation instructions and troubleshooting tips.
