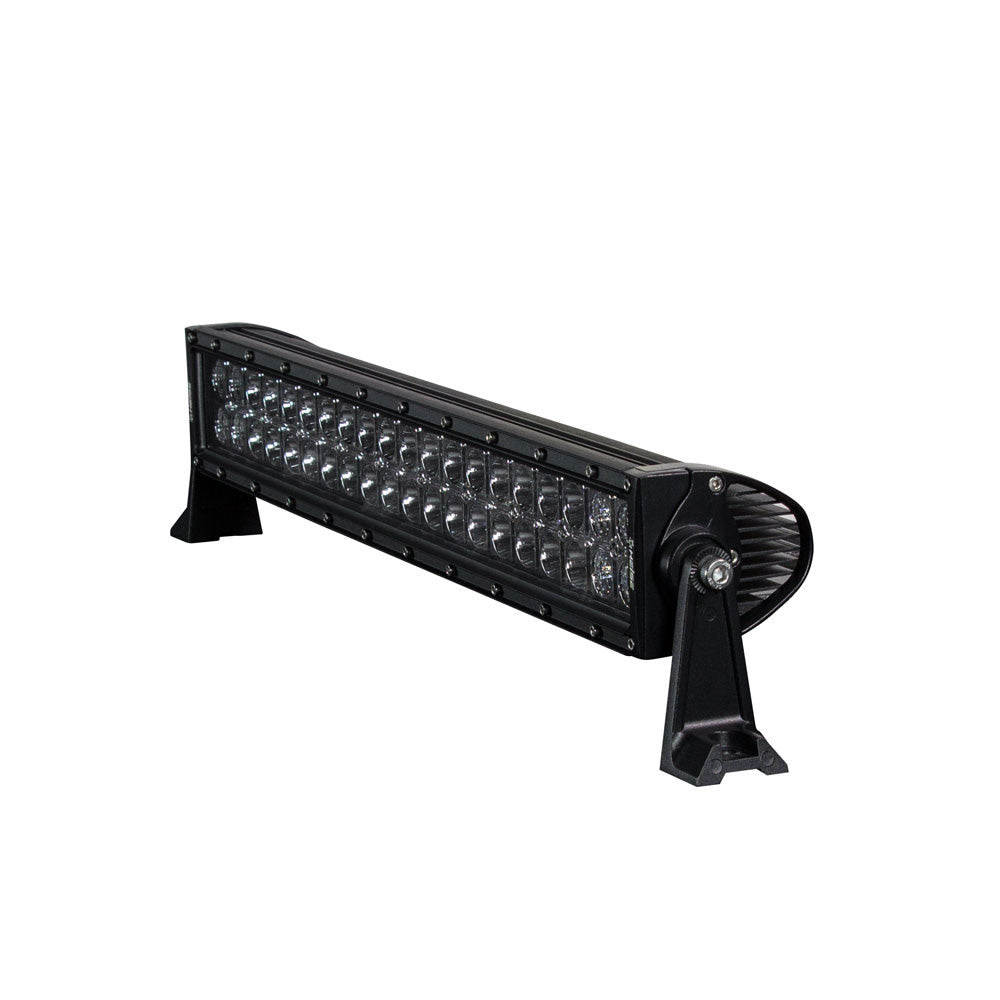

HEISE Dual Row LED Light Bar - 22"

Enhance your vessel’s lighting with our Dual Row LED Light Bar - 22″, specifically designed for marine and boating enthusiasts. Engineered for durability and high performance, this light bar ensures optimal visibility and reliability in all maritime conditions.

Product Features

• Dual Row Design: Equipped with two rows of high-efficiency LEDs for superior illumination.
• Versatile Beam Pattern: Combines flood and spot beams for comprehensive lighting coverage.
• Robust Construction: Made from die-cast aluminum housing and stainless 316 hardware for long-lasting performance in harsh marine environments.
• Weatherproof: IP67 rated for complete protection against dust and immersion in water up to 1 meter.
• Wide Voltage Range: Compatible with 10-30V DC systems, ideal for various marine electrical setups.
• Easy Installation: Includes die-cast aluminum mounting brackets and stainless mounting hardware for secure and straightforward installation.

Specifications

Parameter	Details
Input Voltage	10-30V DC (Compatible with 12V and 24V systems)
Power Consumption	120W
LED Configuration	40 LEDs (3W CREE)
Raw Lumens	9600
LUX @ 10M	655
Color Temperature	6000K
Beam Pattern	Combo/Flood (90°)/Spot (8°)
Box Dimensions	6"H x 7"W x 27"L
Weight	8 lbs
UPC	086429297924

Construction

• Housing Material: Die-cast aluminum for lightweight strength.
• Housing Color: Sleek black finish to complement marine aesthetics.
• Lens Material: Durable polycarbonate (PC) lens for maximum light output and resistance to impacts.
• Mounting Brackets: Precision die-cast aluminum brackets ensuring secure attachment.
• Dimensions:
  • Length without Mounting Brackets: 22.12″
  • Brackets Turned Inward: 21.50″
  • Brackets Turned Outward: 23.75″
  • Mounting Bolt Drill Size: 0.25″
• Light Bar Size:
  • Height: 3″
  • Depth: 3.50″
• Electronics: Integrated with epoxy encapsulated components for enhanced protection.
• Hardware: Corrosion-resistant Stainless 316 for longevity in marine environments.

Performance & Operation

• Operating Temperature: Designed to function optimally in temperatures ranging from -40°C to +60°C.
• Current Consumption: 6.3 amps @ 13.8 volts, ensuring efficient power usage.
• Ingress Protection (IP) Rating: IP67 rated for dust tightness and protection against temporary immersion.
• Safety Protections: Features reverse polarity protection to prevent damage from incorrect wiring.
