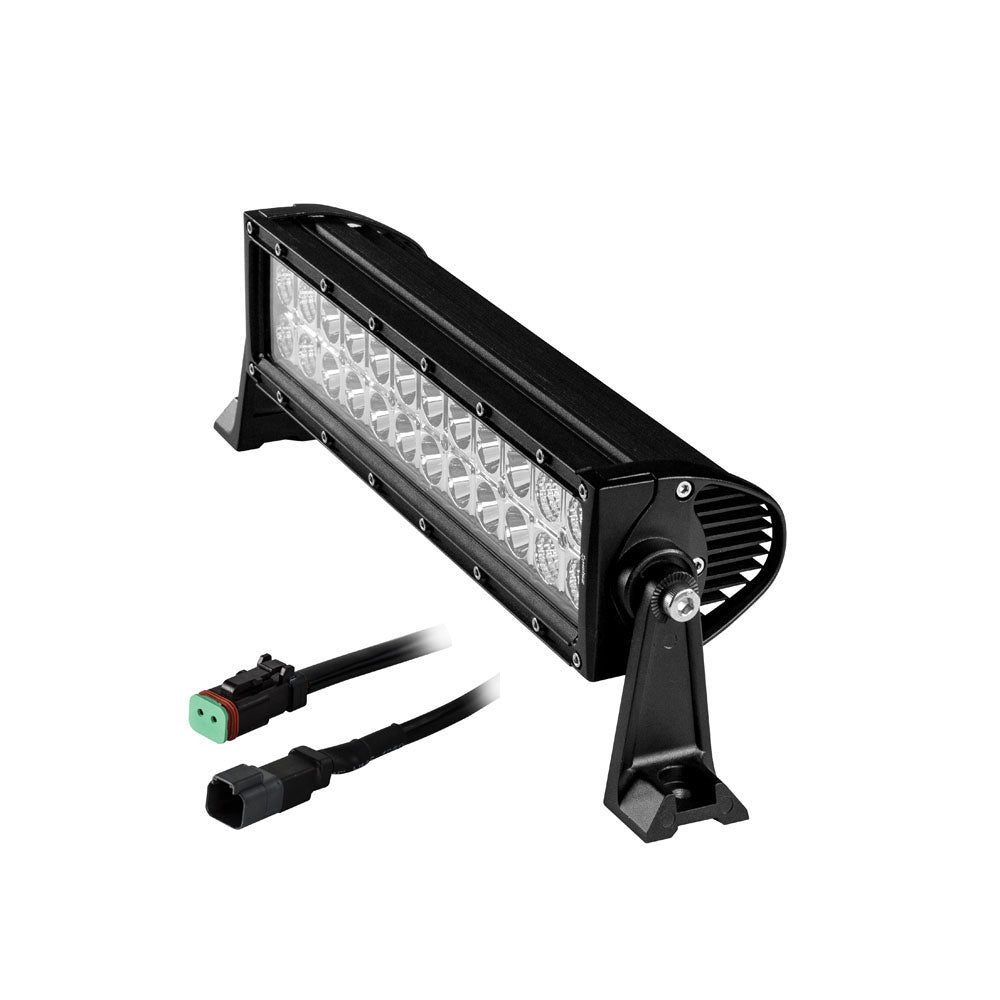

HEISE Dual Row LED Light Bar - 14"

The Dual Row LED Light Bar - 14" is the ultimate lighting solution for marine and boating enthusiasts who demand superior illumination and exceptional durability. Designed to withstand the harsh conditions of marine environments, this LED light bar ensures bright and reliable lighting for all your on-water adventures.

Technical Specifications

Input Voltage	10-30V DC
Power Consumption	72W
LEDs	24-3W CREE LEDs
Raw Lumens	5760
LUX @ 10M	466
Color Temperature	6000K
Beam Pattern	Combo/Flood (90°) / Spot (8°)

Construction

• Housing Material: Die-cast Aluminum
• Housing Color: Black
• Lens Material: Polycarbonate (PC)
• Mounting Bracket: Die-cast Aluminum
• Light Bar Length (without Brackets): 14"
• Hole Dimensions:
  • Brackets Turned Inward: 13.50"
  • Brackets Turned Outward: 14.75"
  • Mounting Bolt Drill Size: 0.25"
• Height of Light Bar: 3"
• Depth of Light Bar: 3.50"
• Electronics: Integrated Epoxy Encapsulated
• Hardware: Stainless Steel 316

Performance

• Operating Temperature: -40°C to +60°C
• Current Consumption: 3.7 Amps @ 13.8 Volts
• IP Rating: IP68 (Waterproof and Dustproof)
• Protections: Reverse Polarity Protection

Additional Specifications

• Voltage - Input Range: 12V / 24V
• Box Dimensions: 6"H x 7"W x 19"L
• Weight: 5.4 lbs
• UPC: 086429297955
