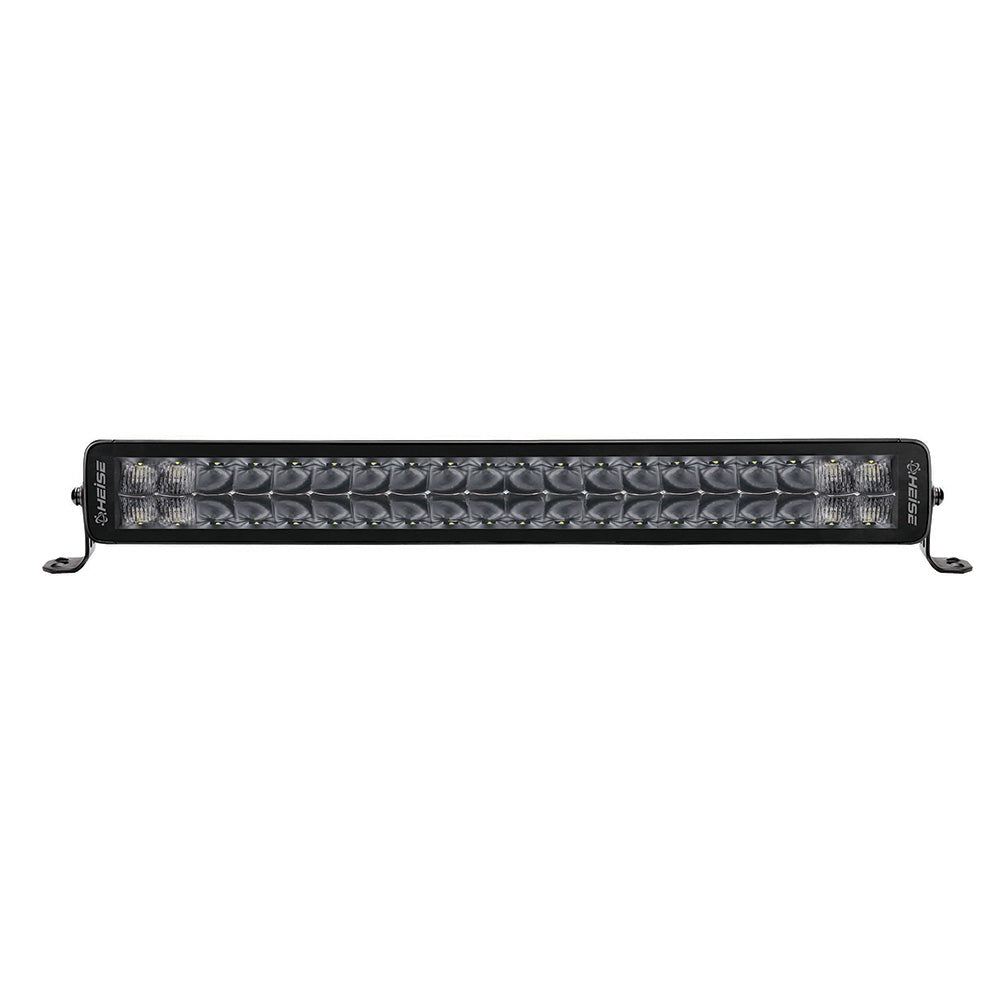

HEISE Dual Row Blackout LED Lightbar - 22"

The Dual Row Blackout LED Lightbar - 22” is the ideal lighting solution for marine and boating applications, delivering superior illumination and durability in a sleek, minimalistic design. Engineered to withstand harsh marine environments, this LED lightbar ensures optimal visibility and safety on the water.

Key Features

• Input Voltage: 10-30V DC
• Color Temperature: 5700K for bright, natural light
• Beam Pattern: Hybrid 90° Flood and 8° Spot for versatile lighting coverage
• Housing Material: Durable Die-Cast Aluminum, resistant to corrosion
• Color: Sleek Black finish
• Membrane: Protective Vent Port to prevent moisture ingress
• Lens Material: High-impact Polycarbonate
• Mounting Bolt Drill Size: 0.25” for secure installation
• Electronics: Integrated-Epoxy Encapsulated for enhanced durability
• Hardware: Stainless 316 for superior corrosion resistance
• Operating Temperature: -40°F to +140°F, suitable for all climates
• Protection: Reverse Polarity protection ensures safety during installation
• Mounting Options: Side & Rear mounting for flexible installation
• Warranty: Limited Lifetime Warranty for peace of mind

Technical Specifications

Attribute	Details
Length	22”
Wattage	200W
Raw Lumens	16,800lm
Lux at 10m	6461
Current Consumption @ 13.8V	6.7A
IP Rating	IP67 - Fully waterproof and dustproof
Box Dimensions	6"H x 6"W x 27"L
Weight	7 lbs
UPC	086429414550

Marine Applications

• Boats and Yachts
• Fishing Vessels
• Personal Watercraft
• Marine Safety and Navigation
• Commercial Marine Operations
• Offshore Platforms

Enhance your marine lighting setup with the Dual Row Blackout LED Lightbar - 22”. For more detailed information, download our brochure (PDF).
