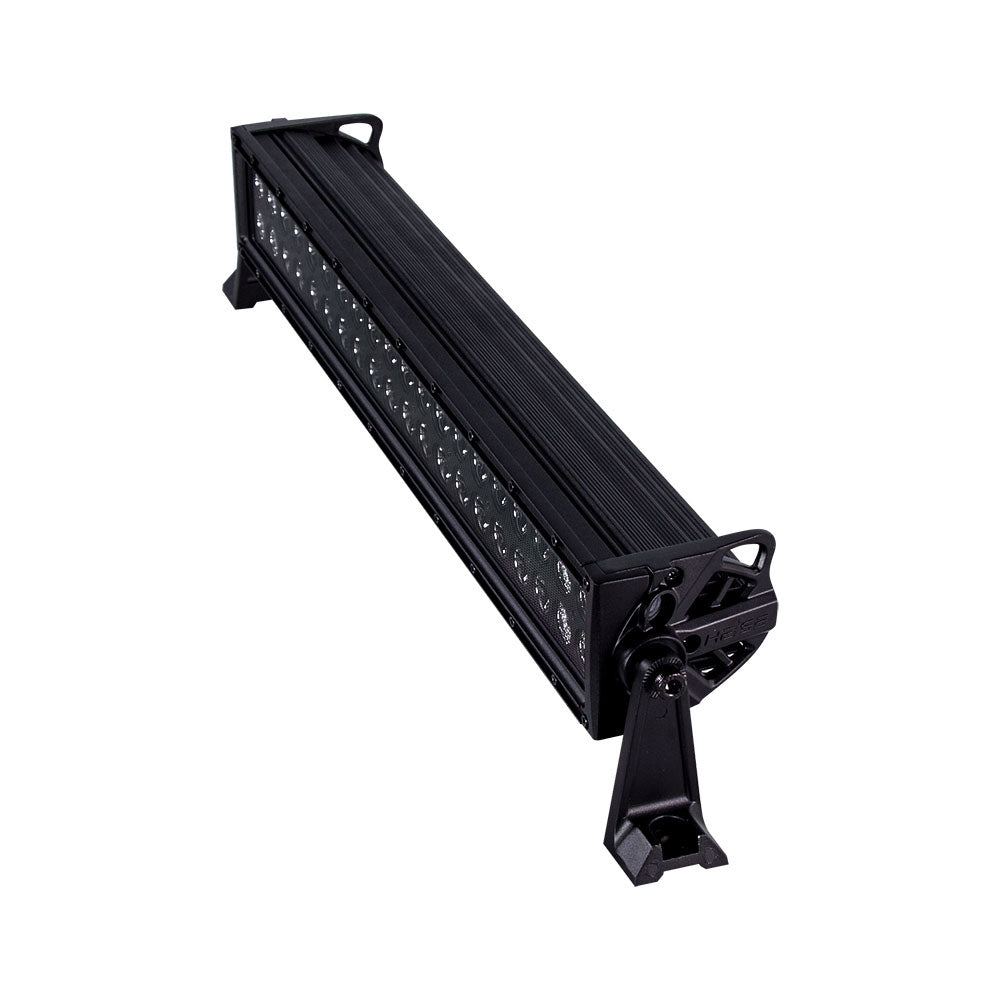

HEISE Dual Row Blackout LED Light Bar - 22"

The Dual Row Blackout LED Light Bar is engineered for marine and boating applications, providing exceptional illumination and durability to enhance your vessel's lighting setup. With high-performance CREE LEDs and a robust die-cast aluminum construction, this 22-inch light bar ensures reliable performance in demanding maritime environments.

Key Features

• High Brightness: Equipped with 40 high-efficiency CREE LEDs, delivering a raw lumens output of 9600 for superior visibility on the water.
• Versatile Beam Pattern: Combines flood (90°) and spot (8°) beams to illuminate wide areas and focus on specific points as needed.
• Durable Construction: Made from die-cast aluminum with a black finish, ensuring resistance to harsh marine conditions.
• Wide Voltage Range: Compatible with 10–30V DC systems, making it suitable for various marine electrical setups.
• Weather Resistant: IP67 rated for complete protection against dust and immersion in water up to 1 meter.
• Easy Installation: Includes sturdy mounting brackets and stainless steel hardware for secure and straightforward installation.

Technical Specifications

Specification	Details
Input Voltage	10–30V DC
Wattage	120W (40–3W CREE LEDs)
Raw Lumens	9600
LUX @ 10M	655
Color Temperature	6000K
Beam Pattern	Combo/Flood (90°)/Spot (8°)

Construction Quality

• Housing Material: Die-cast aluminum for lightweight strength.
• Housing Color: Black finish to reduce glare and blend with marine aesthetics.
• Membrane: Gore™ for enhanced waterproofing and durability.
• Lens Material: High-quality polycarbonate (PC) for maximum light transmission and impact resistance.
• Mounting Bracket: Die-cast aluminum for secure attachment to your vessel.
• Hardware: Stainless 316 hardware to prevent corrosion in marine environments.

Dimensions & Mounting

Measurement	Dimension
Length	22 inches
Height of Light Bar	3 inches
Depth of Light Bar	3.50 inches
Mounting Hole Dimensions:	Brackets turned inward – 21.3125 inches Brackets turned outward – 23.75 inches Mounting Bolt Drill – 0.25 inches
Box Dimensions	6"H x 6"W x 27"L
Weight	7.8 lbs

Operational Performance

• Operating Temperature: Designed to operate in extreme temperatures from –40°C to +60°C.
• Current Consumption: 6.3 amps @ 13.8 volts, ensuring energy-efficient performance.
• IP Rating: IP67 rated for full protection against dust and temporary immersion in water.
• Protective Features: Includes reverse polarity protection to safeguard against electrical mishaps.

Product Specifications

• Beam Pattern: Spot-Flood Combo
• Length: 22 inches
• Housing Color: Black
• Voltage - Input Range: 12/24V
• Box Dimensions: 6"H x 6"W x 27"L
• Weight: 7.8 lbs
• UPC: 086429312740
