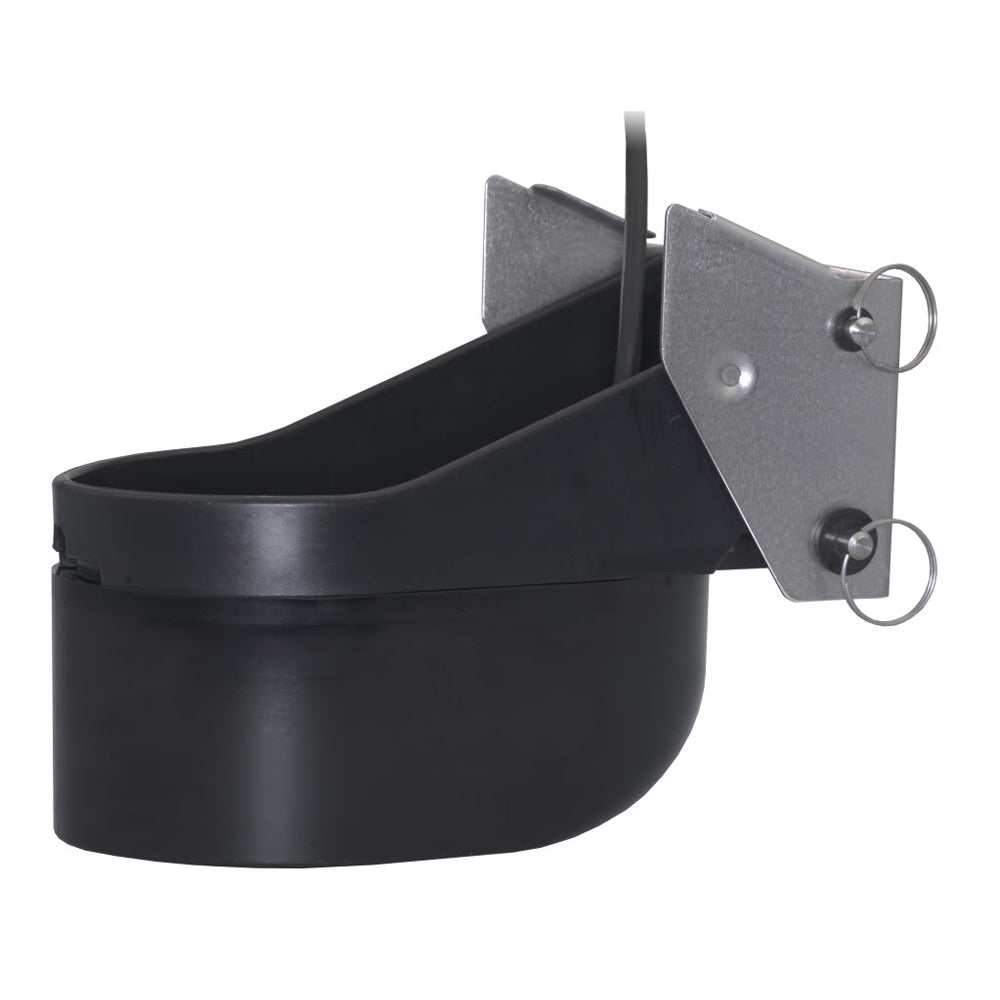

Garmin TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin

Enhance your marine navigation and fishing experience with the Garmin TM265LH Plastic Transom Mount Transducer. Engineered for deep-water performance, this transducer delivers exceptional bottom and water column details, ensuring you receive the most accurate sonar readings even in challenging conditions.

Key Features

• Deep Water Capability: Operates effectively up to 3,000 feet, making it ideal for offshore and deep-water fishing.
• Dual Frequency Operation: Supports operating frequencies of 42-65 kHz for detailed structure imaging and 130-210 kHz for high-resolution bottom mapping.
• Adjustable Beamwidth: Offers beamwidth settings from 16 to 25 degrees or 6 to 10 degrees, allowing for customized sonar coverage.
• Versatile Mounting: Compatible with transoms angled between 3 to 21 degrees, ensuring a secure fit on various boat types.
• Comprehensive Kit: Includes installation instructions to help you set up the transducer correctly and protect your vessel.

Specifications

Feature	Details
Model	TM265LH
Maximum Depth	3,000 feet
Operating Frequency	42-65 kHz / 130-210 kHz
Beamwidth	16-25° or 6-10°
Mounting Angle	3-21° transom
Temperature Sensor	Included
Speed Sensor	Not Included
Pins	12
Mounting Style	Transom
Imaging	Standard
Chirp	Low/High
Cable Length	33 feet
Box Dimensions	8"H x 11"W x 12"L
Weight	11.5 lbs
UPC	753759142407

Compatibility

The TM265LH transducer is compatible with a range of Garmin marine electronics, ensuring seamless integration with your existing setup:

• GPSMAP® Series: 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
• GSD™ 25 Premium Sonar Module

Installation Instructions

The transducer kit includes detailed installation instructions to guide you through the setup process. It’s crucial to follow each step carefully to prevent any damage to your boat or the transducer itself.

Downloads

• Owner's Manual (PDF)
• Brochure (PDF)
