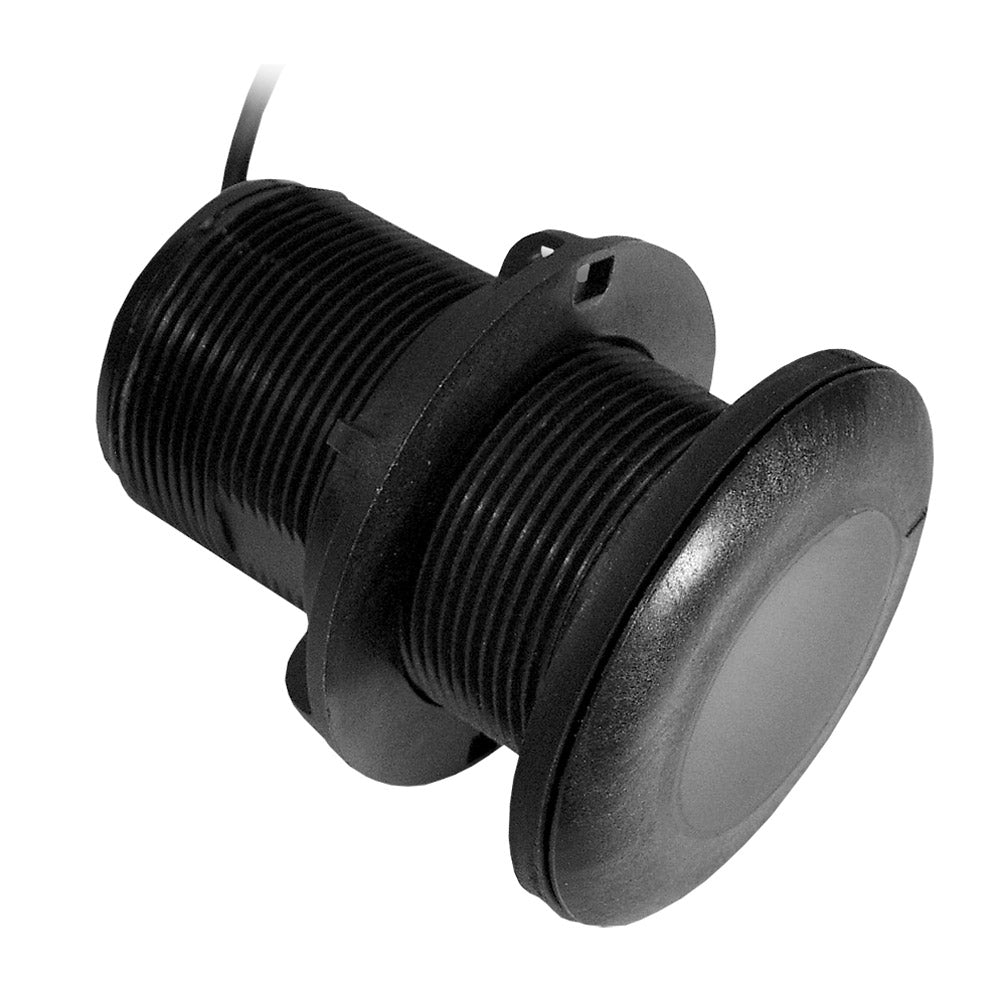

Garmin P19 Nylon 20 Degree Tilt Transducer - 8-Pin

The Tilted Element™ Thru-Hull Transducer is engineered for marine enthusiasts seeking superior performance and minimal drag. Its innovative design ensures sharp, accurate echosounding, making it an essential component for cruising powerboats and sailboats alike.

Optimized Performance

The P19 model has long been the benchmark in low-profile transducers. Featuring large, sensitive ceramic elements, it delivers impressive echosounding capabilities up to 206 meters (700 feet). The nearly flush installation, with only 5mm (2/10") protruding from the hull, significantly reduces drag, enhancing your vessel's speed and fuel efficiency.

Advanced Design

Inside the durable plastic housing, the ceramic element is expertly tilted to provide built-in deadrise compensation. This strategic positioning results in a vertical beam that offers exceptional echo returns, translating to more precise depth readings and enhanced underwater visibility without the need for additional fairings.

Versatile Applications

• Ideal for cruising powerboats
• Perfect for sailboats
• Suitable for various marine vessels up to 9 meters (30 feet)

Key Features

• Available in Depth only or Depth and Temperature configurations
• Fixed 20° tilt compatible with hull deadrise angles between 16° and 24°
• Right-angle cable exit design reduces headroom requirements and protects the transducer
• Included rubber washer ensures a secure fit on irregular hull surfaces
• ABYC H-27 compliant for assured safety and reliability
• Optional temperature sensor available for enhanced functionality
• Robust plastic housing designed for longevity
• Supports boat sizes up to 9 meters (30 feet)

Specifications

Mounting Style	Thru-Hull
Imaging	Standard
Chirp	No
Cable Length	30'
Temperature	Yes
Speed Included	No
Pins	8
Box Dimensions	4"H x 6"W x 8"L
Weight	2.05 lbs
UPC	753759971755

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
