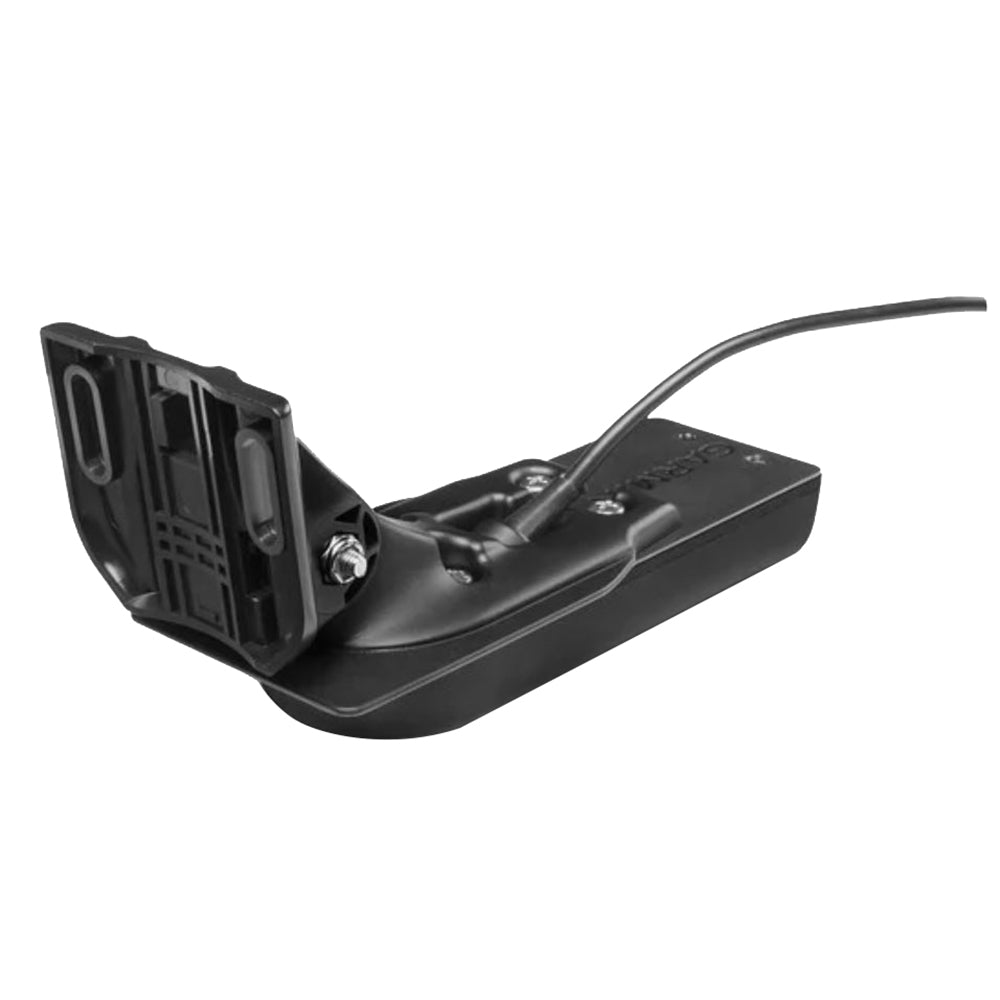

Garmin GT52HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/DownV/SideV - 455/800kHz, 500W

The GT52HW-TM is a high-performance plastic trolling motor transducer engineered for freshwater anglers who demand exceptional sonar capabilities. This transom mount transducer seamlessly integrates with CHIRP traditional sonar, CHIRP DownVü, and CHIRP SideVü scanning sonar systems, delivering clear and crisp fish arches, superior target separation, and precise structural imaging beneath and alongside your boat.

Key Features

• Advanced Sonar Technology: Supports CHIRP High Wide (150-240 kHz) traditional sonar, ClearVü DownVü (455 kHz), and SideVü (800 kHz) scanning sonar.
• Powerful Performance: Traditional sonar operates at 250 W, while ClearVü DownVü and SideVü elements operate at 500 W each, totaling 1,500 W.
• Optimized Beamwidth: Traditional sonar offers a beamwidth of 24-16 degrees, ClearVü DownVü features a 2.0x50 beam at 455 kHz, and SideVü offers a 1.0x30 beam at 800 kHz.
• Deep Water Capability: Traditional sonar reaches depths up to 800 feet, while ClearVü and SideVü can penetrate up to 500 feet.
• Comprehensive Data Tracking: Monitors depth and temperature for enhanced fishing insights.
• Easy Installation: Compact design with a 12-pin connector and included installation instructions, suitable for transom angles between 0° and 70°.
• Durable Construction: Built to withstand rigorous marine environments with a robust 20-foot cable.

Technical Specifications

Feature	Specification
Frequency	CHIRP High Wide: 150-240 kHz; ClearVü DownVü: 455 kHz (425-485 kHz); ClearVü SideVü: 800 kHz (790-850 kHz)
Power	Traditional: 250 W; ClearVü/SideVü: 500 W each (1,500 W total)
Beamwidth	Traditional: 24-16 degrees; ClearVü DownVü: 2.0x50 @ 455 kHz; ClearVü SideVü: 1.0x30 @ 800 kHz
Maximum Depth	Traditional: 800 ft; ClearVü: 500 ft; SideVü: 500 ft
Additional Features	Depth and Temperature monitoring
Number of Pins	12-pin
Cable Length	20 feet
Supported Transom Angles	0°-70°
Box Dimensions	4" H x 7" W x 7" L
Weight	2.2 lbs
UPC	753759148614

Installation

The GT52HW-TM is specifically designed for easy mounting to a trolling motor, thanks to its compact size. Carefully follow the included installation instructions to ensure a secure fit and prevent any potential damage to your boat.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
