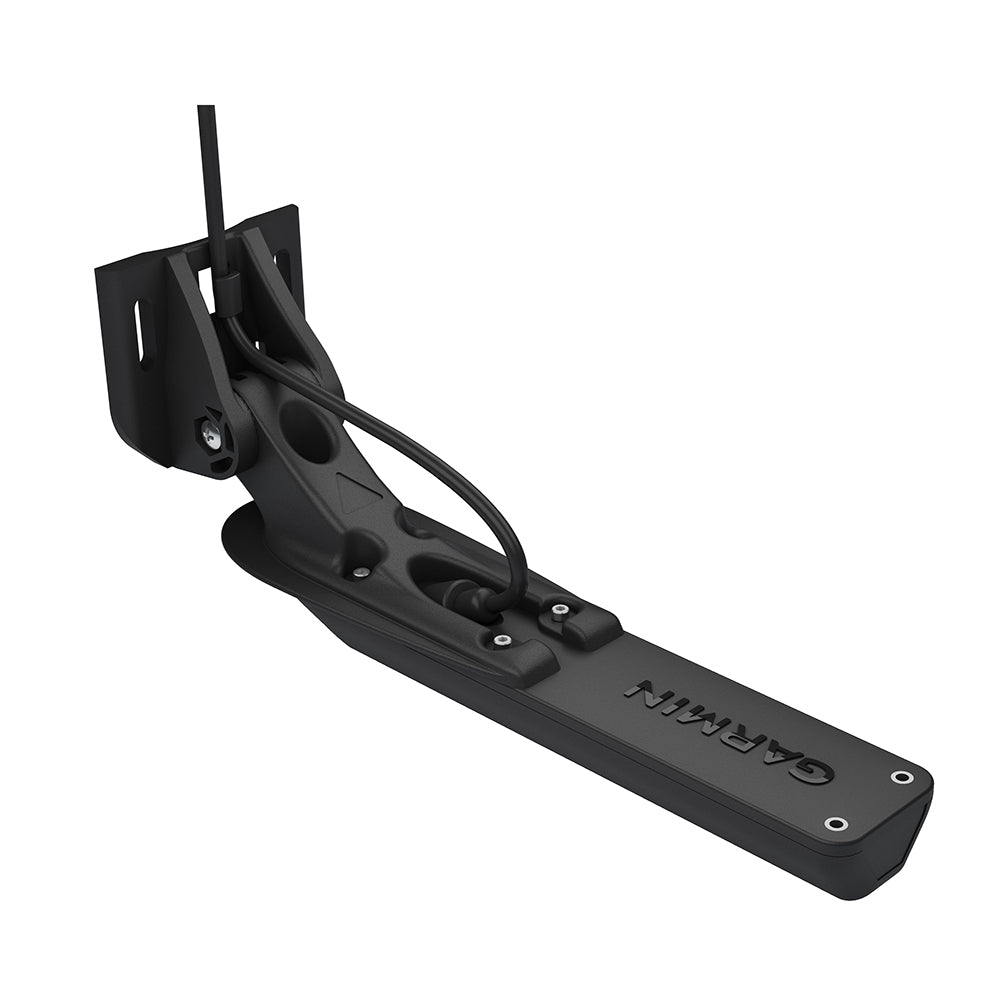

Garmin GT34UHD-TM Ultra HD Transom Mount Transducer

Enhance your fishing experience with the GT34UHD-TM Ultra HD Transom Mount Transducer. Designed for superior performance, this transducer delivers crystal-clear sonar images, allowing you to explore underwater environments with unmatched precision and detail.

Advanced Ultra High-Definition Sonar Technology

The GT34UHD-TM integrates seamlessly with your compatible chartplotter via the GCV™ 20 sonar module, providing stunning Ultra High-Definition ClearVü and SideVü scanning sonar images. Equipped with three arrays, including a downward-facing element, this transducer operates at frequencies between 0.8 MHz (800 kHz) and 1.2 MHz (1,200 kHz), ensuring optimal performance in various fishing conditions.

Ultra High-Definition ClearVü Scanning

Experience unparalleled image clarity of structures and fish below your boat with ClearVü scanning. This mode enhances visibility at greater depths by directing more power towards targets through the downward-facing element, allowing you to see detailed underwater landscapes and locate fish with ease.

Ultra High-Definition SideVü Scanning

SideVü scanning provides exceptionally clear images of underwater structures and fish to the sides of your boat. This capability enables quick and efficient scouting of fishing areas, ensuring you don’t miss any opportunities with its remarkable clarity.

Key Features

• Frequency:
  • Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
  • Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
• Power: 500W
• Beamwidth:
  • ClearVü: 0.74° x 46°
  • SideVü: 0.44° x 55°
• Maximum Depth:
  • ClearVü: 200' down
  • SideVü: 125' sides, 250' total
• Additional Features:
• Depth and Temperature measurement
• 12-pin connector
• 20' cable length
• Compatible with 0°-70° degree transom angles

Technical Specifications

Specification	Details
Temperature Sensor	Yes
Speed Measurement	No
Number of Pins	12
Mounting Style	Transom
Imaging Modes	Down/Side
CHIRP Technology	Non-Traditional
Cable Length	20' feet
Box Dimensions	4"H x 7"W x 10"L
Weight	2 lbs
UPC	753759206338
