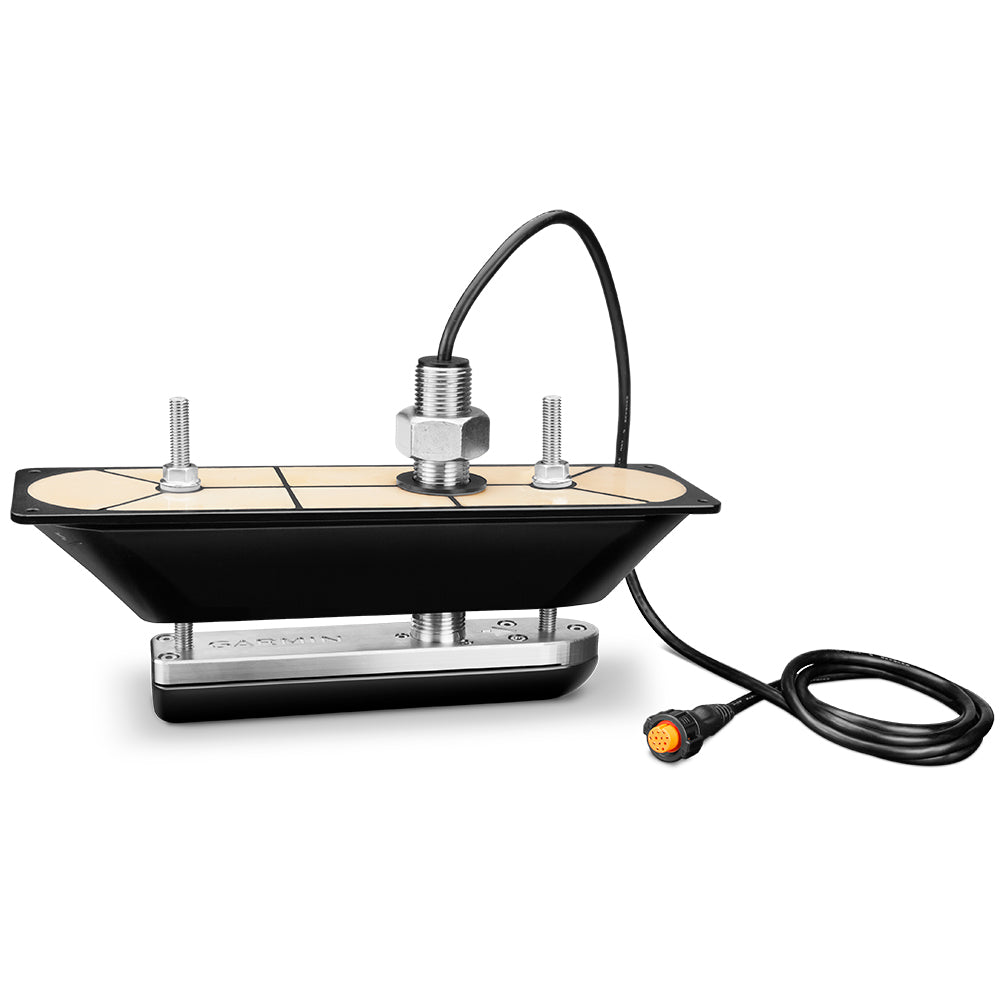

Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer

Enhance your boating experience with the GT34UHD-TH Ultra HD Thru-Hull Transducer, delivering crystal-clear sonar imaging for both structure and fish detection. Designed for compatibility with the GCV™ 20 sonar module, this advanced transducer ensures optimal performance on hulls with up to a 5-degree deadrise angle.

Ultra High-Definition Sonar Imaging

The GT34UHD-TH utilizes cutting-edge Ultra High-Definition ClearVü and SideVü scanning sonar technologies to provide unparalleled image clarity. Whether you're navigating deep waters or scouting for the perfect fishing spot, this transducer ensures you have the most detailed underwater views available.

ClearVü Scanning

Experience brilliant image clarity of underwater structures and fish at greater depths. The downward-facing element intensifies the power on targets, allowing for deeper and more precise scanning compared to other high-frequency sonar systems.

SideVü Scanning

Achieve stunningly clear lateral views of your surroundings. The SideVü mode delivers comprehensive images of structures and marine life off to the sides of your boat, enabling quick and effective scouting of fishing areas with exceptional detail.

Key Features

• Dual Scanning Modes: Switch effortlessly between ClearVü and SideVü for versatile underwater imaging.
• High Frequency: Operates between 0.8 MHz to 1.2 MHz for superior image resolution.
• Powerful Performance: 500W power ensures deep and clear sonar returns.
• Optimized Beamwidth: Precision-focused beams for accurate target detection.
• Durable Design: Thru-hull mounting suitable for hulls with up to a 25° deadrise angle.
• Temperature Monitoring: Integrated depth and temperature sensors for comprehensive data.

Specifications

Feature	ClearVü	SideVü
Frequency	0.8 MHz (800 kHz) CHIRP Range: 760-880 kHz	1.2 MHz (1,200 kHz) CHIRP Range: 1,060-1,170 kHz
Beamwidth	0.74° x 46°	0.44° x 55°
Maximum Depth	200' down	125' sides, 250' total
Power	500W
Depth/Speed/Temperature	Depth and Temperature
Number of Pins	12-pin
Cable Length	20'
Supported Deadrise/Transom Angles	Up to 25° deadrise
Mounting Style	Thru-Hull
Imaging	Down/Side
Chirp	Non Traditional
Box Dimensions	5"H x 13"W x 14"L
Weight	6.1 lbs
UPC	753759206352

Additional Product Details

• Temperature Monitoring: Integrated sensors provide real-time depth and temperature data.
• Cable Length: A 20-foot cable ensures flexible installation and optimal placement.
• Mounting Style: Thru-hull installation for secure and reliable performance.
• Power Requirements: 500W to deliver consistent and powerful sonar signals.
• Box Dimensions: Compact packaging measuring 5"H x 13"W x 14"L, weighing 6.1 lbs.
