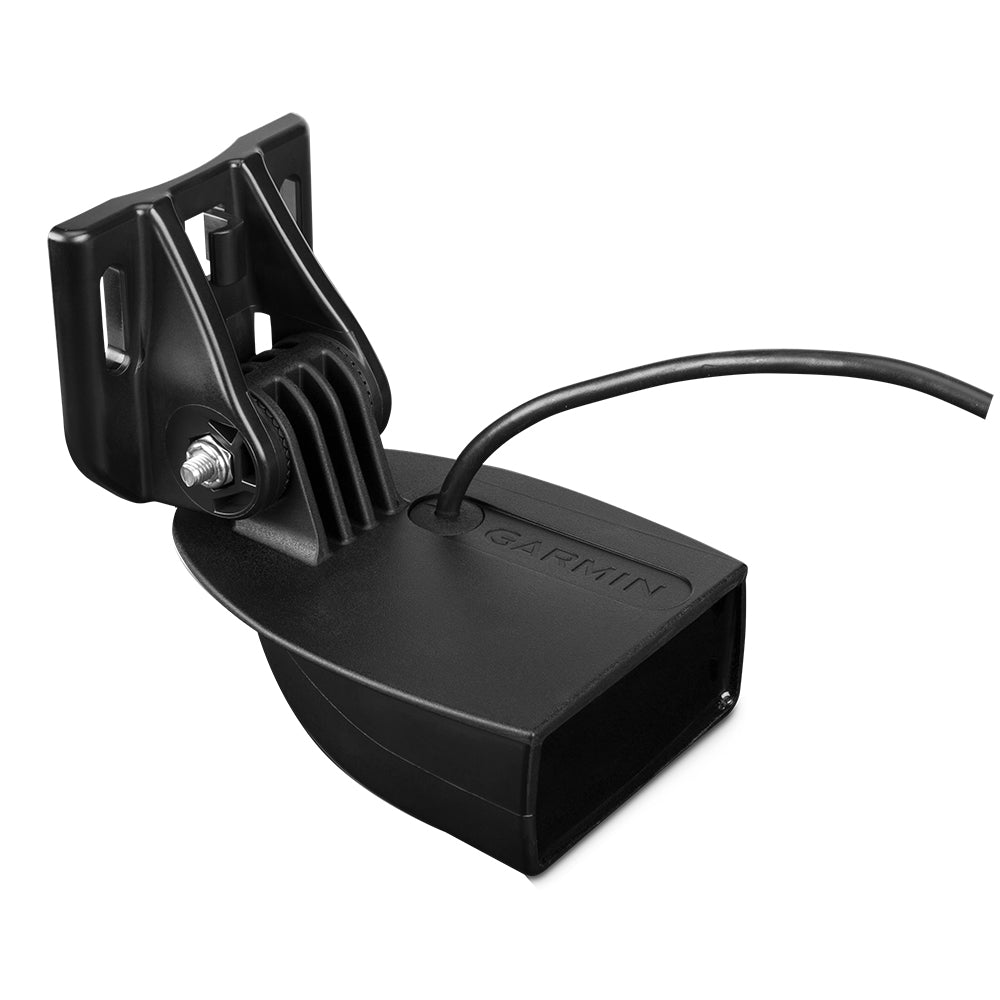

Garmin GT15M-TM Transom Mount Transducer - 8-Pin

The GT15M-TM Transom Mount Transducer - 8-Pin is an optimal choice for fishermen seeking unparalleled underwater clarity. This transducer provides clear bottom definition beneath your boat and delivers crisp, wide fish arches with exceptional target separation, reaching depths up to 1,900 feet.

Key Features

• Mid-band CHIRP traditional sonar operating between 85-165 kHz for superior imaging
• Powerful 600 W rating ensures strong and reliable performance
• 8-pin configuration offers versatile connectivity options
• Designed for transom mounting, facilitating easy and secure installation
• Provides clear and detailed bottom imaging and sharp fish arches
• Enhanced target separation improves your ability to identify and locate fish

Technical Specifications

Feature	Details
Temperature Sensor Included	Yes
Speed Sensor Included	No
Number of Pins	8
Mounting Style	Transom
Imaging Mode	Standard
Sonar Type	CHIRP Medium
Cable Length	20 feet
Box Dimensions	4" H x 6" W x 7" L
Weight	1.4 lbs
UPC	753759174484

Installation Instructions

Mount the GT15M-TM transducer securely to your boat's transom following the included installation instructions. Ensure all steps are carefully followed to prevent any damage to your vessel and to guarantee optimal performance of the transducer.
