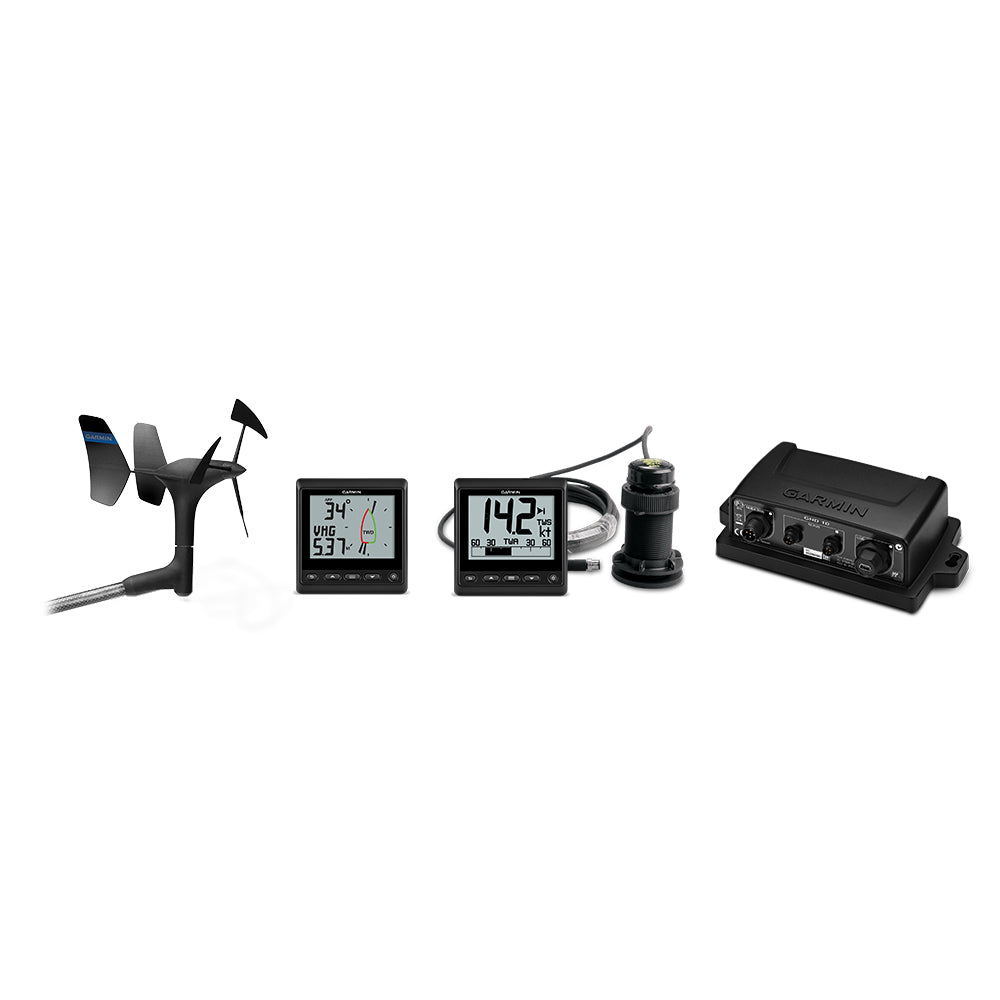

Garmin GNX Wired Sail Pack 52

The GNX™ Wired Sail Pack 52 is the ultimate marine instrumentation suite, designed to provide sailors with comprehensive wind and water data for confident navigation and optimal performance. Combining advanced transducers and high-visibility displays, this sail pack ensures you stay informed about critical marine conditions in real-time.

Comprehensive Instrument Package

The GNX™ Wired Sail Pack 52 includes a complete set of high-performance instruments and transducers tailored for sailing enthusiasts:

• GNX Wind Marine Instrument
• GNX™ 20 Marine Instrument
• gWind™ Wired Transducer
• Airmar DST810 Thru-hull Smart Transducer
• GND™ 10 Black Box Bridge
• 3 NMEA 2000® Drop Cables (2 meters)
• NMEA 2000® Power Cable
• 5 NMEA 2000 T-Connectors
• NMEA 2000 Terminators
• Mast Cable with Female Connector (25 meters)
• Nexus Female Field Installable Connector
• Mast Bracket and Mounting Hardware
• Comprehensive Documentation

Advanced Wind and Water Monitoring

Stay ahead of the elements with the GNX™ Wired Sail Pack 52’s state-of-the-art wind and water monitoring capabilities:

Component	Features
GNX Wind Marine Instrument	High-visibility monochrome LCD display with customizable backlight Interfaces with NMEA 2000 network for real-time data Displays true and apparent wind data, steering guidance, and boat speed Low power consumption: 350 mW (daylight), 400 mW (nighttime) Wireless connectivity with quatix® 3 GPS marine smartwatch via ANT technology
GNX™ 20 Marine Instrument	Clear display of water depth, boat speed, and water temperature Shows over 50 marine and boat parameters Glass-bonded anti-glare lens coating for excellent readability Scalable digits up to 36 mm for enhanced visibility
gWind™ Wired Transducer	Twin-fin design with 3-bladed propeller for accurate True Wind Speed (TWS) Stable True Wind Angle (TWA) measurements Optical reading technology ensures superior accuracy at low wind speeds Excellent linearity and efficiency compared to traditional cup designs
Airmar DST810 Thru-hull Smart Transducer	Provides water depth, speed, and temperature data Includes attitude sensing for heel/trim and pitch/roll inputs Reads depths up to 330 feet with fast 5 Hz water speed signal output Operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees Wireless BLUETOOTH® connectivity for easy calibration via Airmar’s Cast app Advanced speed calibration at multiple heel angles and speeds

Seamless Connectivity and Installation

The GNX™ Wired Sail Pack 52 ensures effortless integration with your existing marine electronics:

• Wireless connectivity to devices with BLUETOOTH® technology
• Easy plug-and-play installation with Nexus®, Garmin chartplotters, NMEA 2000®, and USB compatibility
• Includes all necessary cables, connectors, and mounting hardware for a straightforward setup

Why Choose GNX™ Wired Sail Pack 52?

Equip your sailboat with the GNX™ Wired Sail Pack 52 to enhance your maritime experience with reliable and precise data. Designed for sailors who demand accuracy and ease of use, this sail pack provides all the essential tools to monitor wind and water conditions, ensuring safe and efficient sailing.

Additional Resources

Owner's Manual (PDF)
