Garmin GNX Wired Sail Pack 43

Enhance your sailboat’s performance and navigation precision with the GNX™ Wired Sail Pack 43. This comprehensive electronics upgrade equips your vessel with advanced wind and marine instruments, ensuring reliable data and seamless connectivity for an optimized sailing experience.

Comprehensive Electronics Upgrade

The GNX Wired Sail Pack 43 is designed to provide sailboat enthusiasts with all the essential tools needed for accurate monitoring and navigation. Featuring 43 mm transducers for depth, temperature, and water speed, this pack integrates seamlessly into your existing NMEA 2000® network, offering a robust and reliable solution for modern sailboats.

Key Components

GNX Wind Instrument

The GNX Wind Instrument delivers precise wind data to help you make informed sailing decisions. It boasts a high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors for optimal readability in any lighting condition. Key features include:

• Simultaneous display of true and apparent wind data, digital wind rose, steering guidance, and boat speed
• Low power consumption: 350 mW during daylight and 400 mW at night
• Customizable screen layouts with over 15 marine parameters
• Connectivity with ANT® technology for streaming data to compatible smartwatches and Garmin Nautix™ displays

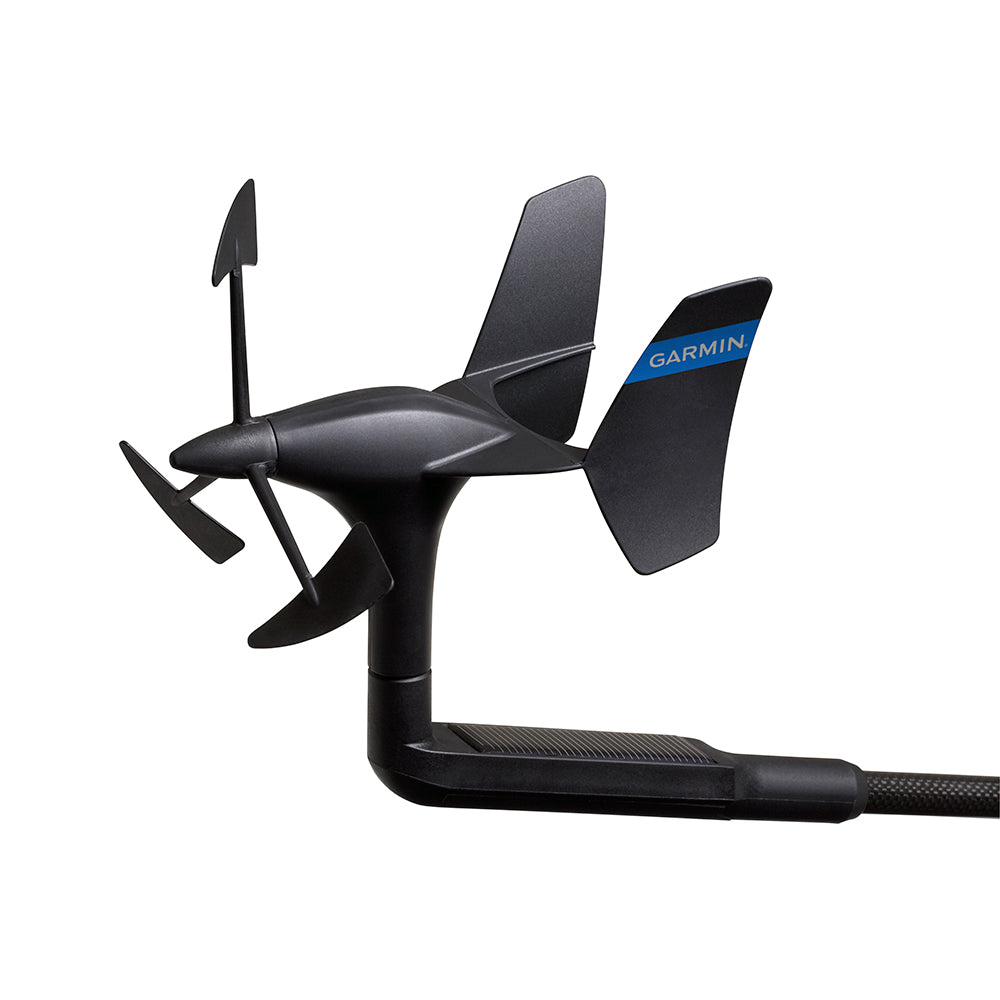

gWind Transducer

The gWind Transducer offers an effortless installation process and exceptional accuracy in wind measurement. Utilizing Nexus twin-fin technology and a 3-bladed propeller, it ensures stable wind angle and precise wind speed readings even in lighter conditions. Features include:

• Wireless ANT® connection for direct data transmission to GNX Wind Instrument or compatible GPSMAP® chartplotters
• Reliable performance with minimal maintenance

GNX 20 Marine Instrument

The GNX 20 Marine Instrument provides clear and comprehensive monitoring of essential marine parameters. Its user-friendly interface and customizable settings make it ideal for both sailboats and powerboats. Highlights include:

• High-contrast glass-bonded display with anti-glare lens for excellent readability day and night
• Displays water depth, boat speed, water temperature, and over 50 marine and boat parameters
• Multiple display configurations, including single, dual, and triple function modes, as well as gauge and graph options
• Energy-efficient operation with only 25 mA usage

GDT 43 and GST 43 Transducers

The GNX Wired Sail Pack 43 includes GDT™ 43 and GST™ 43 transducers, allowing for easy retrofit on boats with existing Nexus® or Silva TH43 fittings. These transducers provide accurate depth, speed, and temperature data, which can be shared across the NMEA 2000 network. Key features:

• 43 mm thru-hull transducers compatible with existing fittings, eliminating the need for drilling new holes
• GST 43 for speed and temperature measurements
• GDT 43 for depth measurements
• NMEA 2000® adapters for seamless data integration with Garmin chartplotters and other compatible displays

Easy Installation and Integration

The GNX Wired Sail Pack 43 is designed for hassle-free installation with its plug-and-play compatibility with the NMEA 2000 network. The package includes all necessary fittings, adapters, and mounting hardware, ensuring a straightforward setup process. Whether upgrading your current system or installing for the first time, the GNX Sail Pack 43 simplifies the integration of advanced marine electronics.

What’s Included

• gWind Wired Transducer
• GNX™ 20 Marine Instrument
• GNX Wind Marine Instrument
• GDT™ 43 with NMEA 2000® Adapter
• GST™ 43 with GST 10
• GND 10
• 2 Meter NMEA 2000 Drop Cable
• NMEA 2000 T-Connector
• Nexus Female Field Installable Connector
• Mast Bracket
• Mounting Hardware
• Comprehensive Documentation

Important Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Specifications

Feature	Details
Instrument Function	Multifunction
Box Dimensions	8"H x 10"W x 27"L
Weight	13.5 lbs
UPC	753759188177
