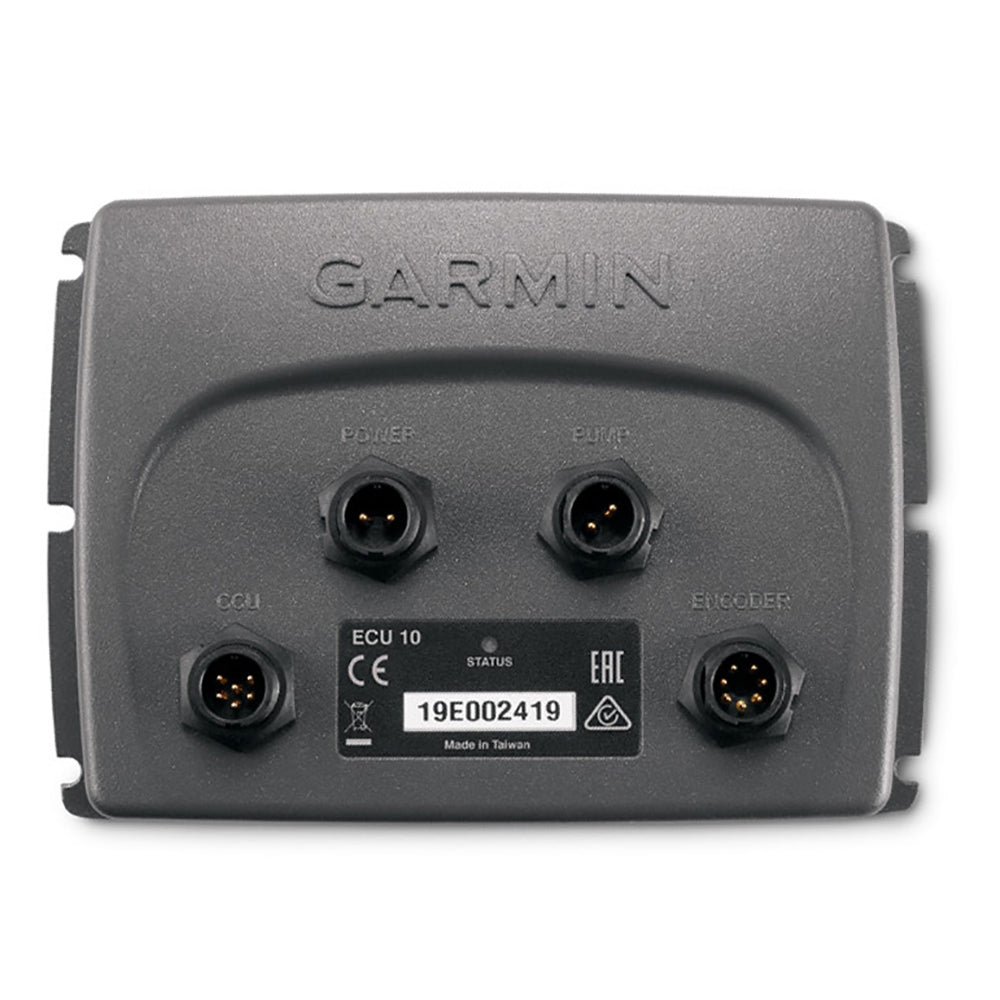

Garmin Electronic Control Unit (ECU) for GHP Compact Reactor

A vital component for enhancing your boat’s autopilot system, the Electronic Control Unit (ECU) for the GHP Compact Reactor™ ensures precise control and reliable performance on the water. Designed specifically for marine applications, this ECU seamlessly integrates with your vessel’s navigation system to maintain course and optimize hydraulic pump operations.

Product Overview

The Electronic Control Unit (ECU) is one of the five essential components of the GHP Compact Reactor autopilot system. It serves as the central hub, connecting and powering the Course Computer Unit (CCU) and the hydraulic pump. By processing data from the CCU, the ECU precisely controls the hydraulic pump to ensure smooth and accurate steering adjustments, enhancing your boating experience.

Key Features

• Seamless integration with GHP Compact Reactor autopilot system
• Power management for Course Computer Unit (CCU)
• Hydraulic pump control based on real-time data from CCU
• Durable design suitable for marine environments
• Easy installation and compatibility with various boat models

Specifications

Component	Specifications
Power Supply	12V DC
Control Signal	Digital Input
Dimensions	5 x 3 x 2 inches
Operating Temperature	-20°C to +60°C
Connectivity	Wired connections to CCU and hydraulic pump

Installation Guide

Installing the ECU in your marine autopilot system is straightforward. Follow these steps to ensure proper setup:

1. Disconnect the boat's power supply to ensure safety.
2. Mount the ECU in a dry, secure location near the autopilot system.
3. Connect the ECU to the Course Computer Unit (CCU) using the provided wiring harness.
4. Attach the hydraulic pump to the ECU, ensuring all connections are tight and secure.
5. Reconnect the power supply and perform a system test to verify proper operation.

Safety Information
