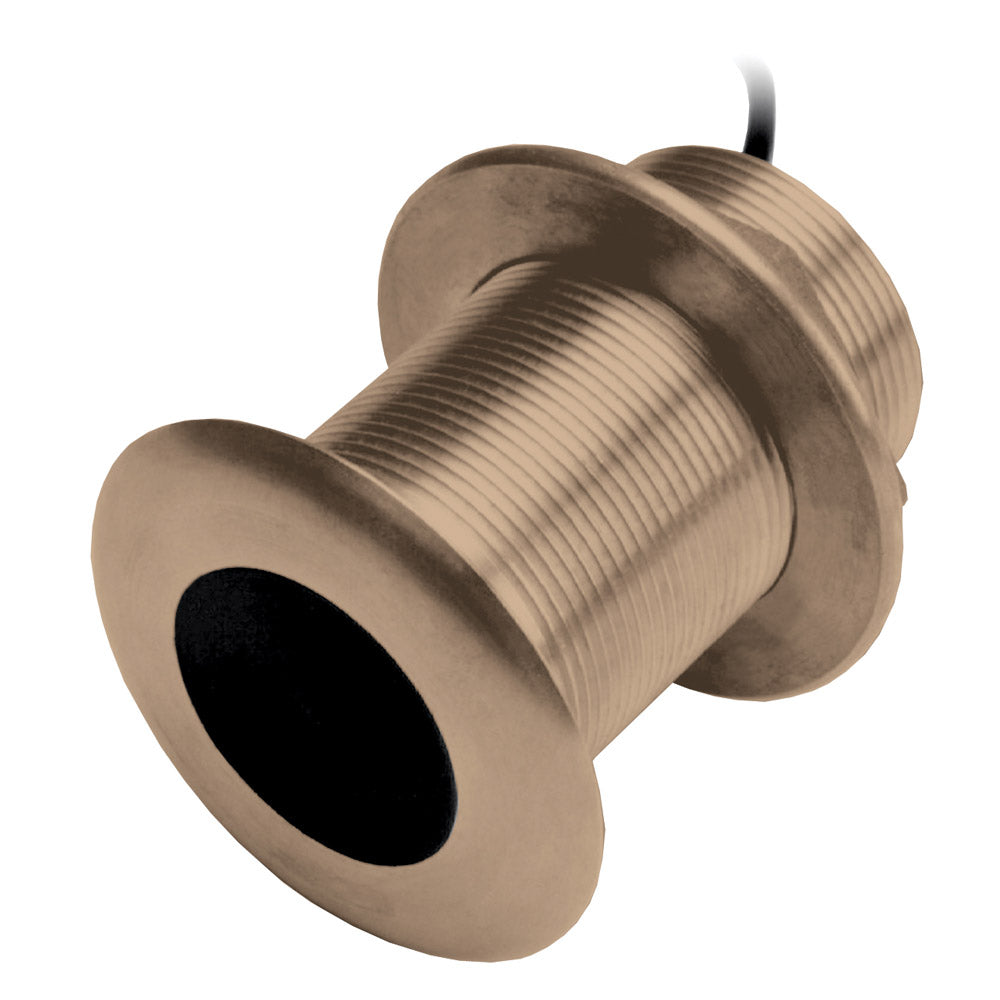

Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin

Experience unparalleled sonar performance on your vessel with the Airmar B75M transducer. Crafted with precision, this transducer features a flush-mounted bronze housing that seamlessly integrates into your boat's hull, ensuring minimal drag and optimal signal transmission. The 20° tilted element is meticulously designed to accommodate hulls with deadrise angles ranging from 16° to 24°, eliminating the need for additional fairing blocks and simplifying installation.

Key Features

• Flush-Mounted Bronze Housing: Offers a sleek installation that reduces drag and enhances signal clarity.
• 20° Tilt: Optimizes sonar performance across a variety of hull deadrise angles (16°-24°), providing versatile compatibility.
• 600W Power: Delivers robust performance for accurate and reliable sonar readings.
• Dual Scanning Modes: Supports both traditional and Spread Spectrum scanning, ensuring compatibility with advanced sonar systems like the GSD 26.
• Comprehensive Data Integration: Transmits both depth and temperature information seamlessly to your Garmin Marine Network, enhancing navigation and fishing capabilities.
• Deep Water Capability: Capable of operating at depths up to 800 feet, making it suitable for a wide range of marine applications.

Technical Specifications

Specification	Details
Max Depth	800 feet
Supported Deadrise/Transom Angles	16°-24° Deadrise
Temperature Sensor	Included
Speed Integration	No
Connector Pins	8
Mounting Style	Thru-Hull
Imaging Mode	Standard
Chirp Capability	Medium
Cable Length	39 feet
Package Dimensions	5" H x 8" W x 12" L
Weight	6.15 lbs
UPC	753759972035

Easy Installation

The Airmar B75M transducer is designed for straightforward installation on a wide range of hull types. Its bronze thru-hull mount ensures a secure and durable fit, while the included 39-foot cable provides ample length for flexible mounting positions. Whether you're outfitting a new vessel or upgrading your existing sonar system, the B75M simplifies the process without compromising on performance.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
