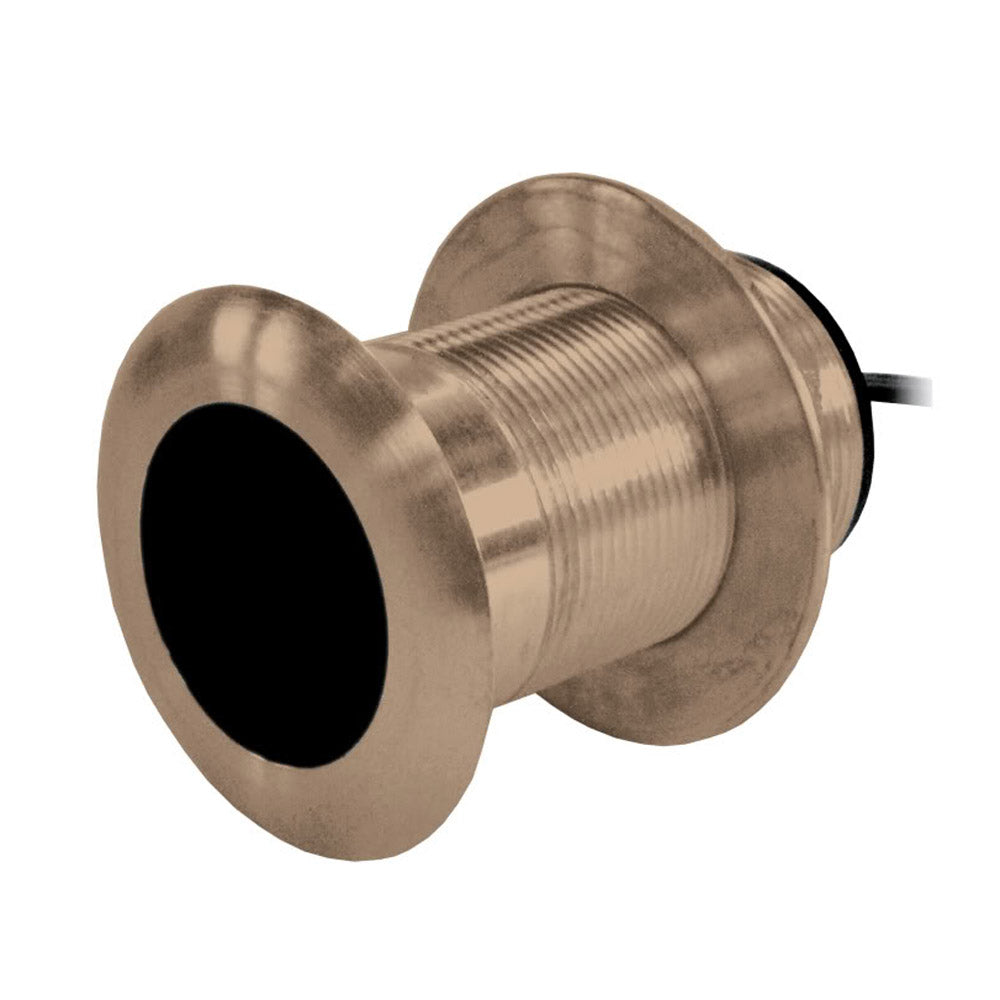

Garmin B619 20 Degree Tilt Bronze Thru-Hull Transducer - 8-Pin

$197.99 USD $219.99

Product Description

The B619 20° Tilt Bronze Thru-Hull Transducer - 8-Pin is engineered for marine enthusiasts seeking precision and minimal drag. Designed with large sensitive ceramics, it delivers deep echosounding capabilities up to 206 meters (700 feet), ensuring accurate depth readings while maintaining a low-profile installation.

Minimize Your Drag

The B619 model has been the benchmark in low-profile transducers for years. Its nearly flush design means only 5mm (2/10") of the housing protrudes from the hull, significantly reducing drag and enhancing performance. The bronze construction ensures durability and a vertical beam without the need for a fairing. Internally, the ceramic element is tilted to provide built-in deadrise compensation, resulting in superior echo returns and precise depth measurements.

Key Features

  • Depth-only or combined Depth and Temperature measurements
  • Fixed 20° tilt suitable for hull deadrise angles between 16° and 24°
  • Right-angle cable exit design for low headroom and protection against accidental transducer contact
  • Includes a rubber washer for secure installation on irregular hull surfaces
  • ABYC H-27 compliant housing ensures safety and reliability
  • Optional temperature sensor available for enhanced functionality
  • Durable bronze housing withstands harsh marine environments
  • Compatible with boats up to 9 meters (30 feet) in length

Ideal Applications

  • Cruising powerboats
  • Sailboats
  • Fishing vessels
  • Offshore yachts

Technical Specifications

Specification Details
Speed Included No
Pins 8
Mounting Style Thru-Hull
Imaging Standard
Chirp No
Temperature Sensor Yes
Cable Length 30 feet
Box Dimensions 4"H x 6"W x 8"L
Weight 3.4 lbs
UPC 753759971731
