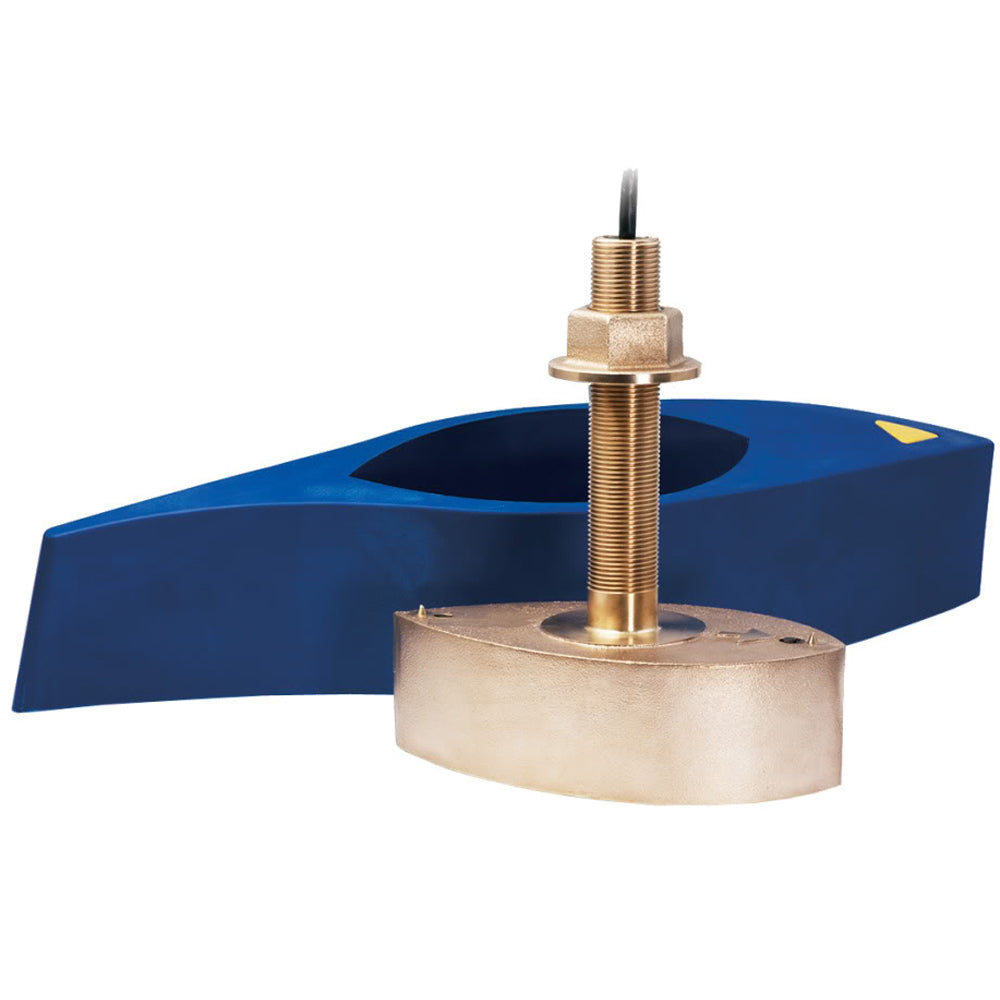

Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin

Enhance your marine navigation and fishing experience with the Garmin B265LH Bronze Thru-Hull Mount Transducer. Engineered for optimal performance in deep waters, this high-quality transducer delivers exceptional bottom and water column detail, ensuring you have the most accurate and reliable data at your fingertips.

Key Features

• Superior Depth Range: Capable of reaching depths up to 3,000 feet, making it ideal for deep-sea fishing and extended marine expeditions.
• Advanced Operating Frequencies: Dual-frequency operation with 42 to 65 kHz and 130 to 210 kHz ranges, providing versatile sonar capabilities for various marine environments.
• Precise Beamwidth: Adjustable beamwidth from 16 to 25 degrees and 6 to 10 degrees allows for flexible scanning angles to suit your specific needs.
• Durable Construction: Crafted with a bronze finish for enhanced corrosion resistance and longevity in harsh marine conditions.
• Temperature Sensing: Integrated temperature sensing feature helps monitor water conditions for better decision-making on the water.
• Deadrise Compatibility: Suitable for boats with a 0 to 20 degree deadrise, ensuring a perfect fit for a variety of hull types.

Specifications

Attribute	Details
Mounting Style	Thru-Hull
Depth Range	Up to 3,000 feet
Operating Frequency	42 to 65 kHz and 130 to 210 kHz
Beamwidth	16 to 25 degrees and 6 to 10 degrees
Deadrise	0 to 20 degrees
Temperature Sensor	Yes
Speed Included	No
Imagining	Standard
Chirp	Low/High
Cable Length	39 feet
Pins	12
Box Dimensions	7" H x 19" W x 26" L
Weight	24.2 lbs
UPC	753759142414

Compatibility

This transducer is compatible with the following Garmin devices:

• GPSMAP® 7607xsv
• GPSMAP® 7608xsv
• GPSMAP® 7610xsv
• GPSMAP® 7612xsv
• GPSMAP® 7616xsv
• GSD™ 25 Premium Sonar Module

Installation

The transducer kit includes detailed installation instructions. It is crucial to follow these instructions carefully to ensure proper installation and to avoid any potential damage to your vessel.
