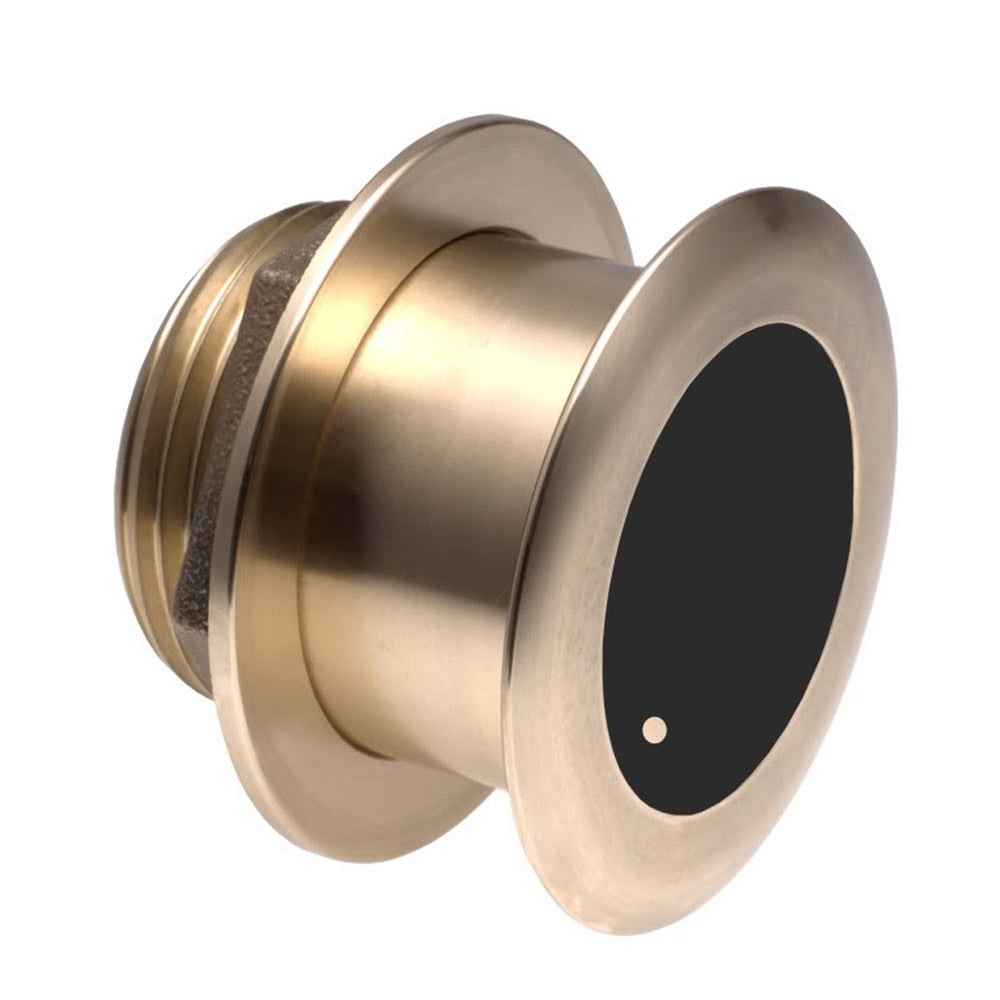

Garmin B175H Bronze 20 Degree Thru-Hull Transducer - 1kW, 8-Pin

Airmar B175H is a top-of-the-line marine transducer engineered for superior sonar performance. Its flush-mounted bronze housing ensures minimal hull protrusion, enhancing both aesthetics and durability. With a 20° tilt and a robust 1kW power rating, the B175H seamlessly integrates with a variety of hull types, including fiberglass and wood. The intelligently designed tilted element adapts to hull deadrises ranging from 16° to 24°, eliminating the need for additional fairing blocks and simplifying installation. Available in low, medium, and high frequency versions, this transducer offers maximum flexibility to meet diverse sonar frequency requirements, making it an excellent choice for both recreational and professional boaters.

Key Features

• Flush-Mounted Bronze Housing: Protrudes less than 1/4" outside the hull, ensuring a sleek installation and protection against damage.
• 20° Tilt Design: Accommodates hull deadrises between 16° and 24°, eliminating the need for fairing blocks.
• Powerful 1kW Output: Delivers exceptional sonar performance for clear and reliable depth readings.
• Frequency Flexibility: Available in low, medium, and high frequency versions to suit various sonar applications.
• Durable Construction: Ideal for fiberglass and wood hulls, with the ability to sit on trailer rollers or bunks without damage.
• Easy Installation: Thru-hull mounting style simplifies the installation process.

Specifications

Feature	Details
Mounting Style	Thru-Hull
Imagining	Standard
Chirp	High
Cable Length	39'
Temperature Sensor	Yes
Pins	8
Speed Included	No
Box Dimensions	8" H x 10" W x 12" L
Weight	11.2 lbs
UPC	753759995706
Max Depth	3,000'
Supported Deadrise/Transom Angles	16°-24° Deadrise

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
