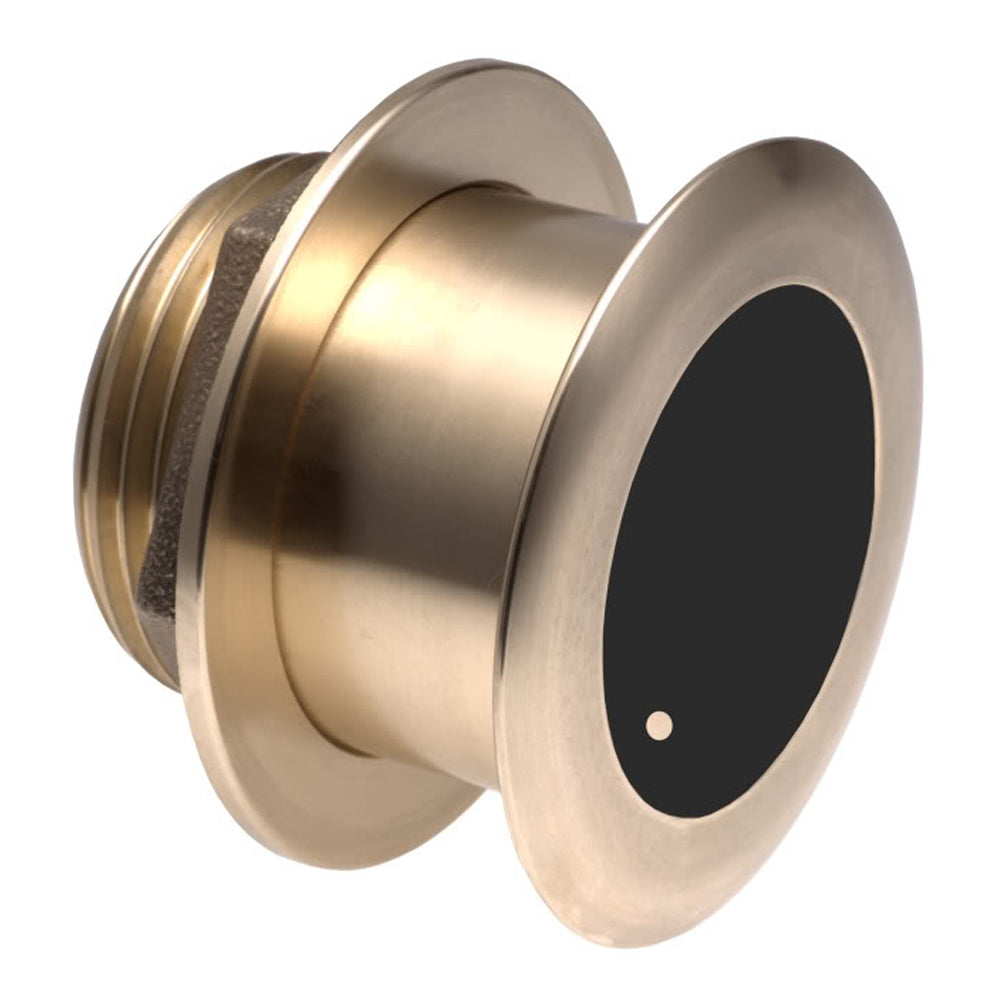

Garmin B164 1kW Tilted Element 20 Degree - 8-Pin

Enhance your marine navigation with the Garmin B164 1kW Tilted Element 20° - 8-Pin Transducer. Designed for durability and precision, this bronze thru-hull mount transducer seamlessly integrates depth and temperature data to elevate your boating experience.

Key Features

• 20° Tilt Angle: Optimizes sonar performance by providing an angled view of the underwater environment.
• Durable Construction: Crafted from high-quality bronze for long-lasting performance in various marine conditions.
• Dual Frequency Options: Available in 50 kHz or 200 kHz to suit different fishing and navigation needs.
• Thru-Hull Mounting: Ensures a secure and stable installation on hulls with a 16-24° deadrise angle.
• Temperature Sensor: Provides accurate water temperature readings for better fishing and navigation decisions.

Specifications

Feature	Details
Operating Frequency	50 kHz or 200 kHz
Temperature Sensor	Yes
Speed Sensor Included	No
Pins	8
Mounting Style	Thru-Hull
Imaging	Standard
Cable Length	39 feet
Chirp Technology	No
Box Dimensions	8" H x 10" W x 12" L
Weight	11 lbs
UPC	753759971908

Installation

The Garmin B164 transducer is designed for thru-hull mounting on boats with a 16-24° deadrise angle. Its bronze construction ensures corrosion resistance and longevity, making it ideal for both freshwater and saltwater applications. The included 39-foot cable provides ample length for flexible installation, while the 8-pin connector ensures a secure and reliable connection to your Garmin electronics.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)

Brochure (PDF)
