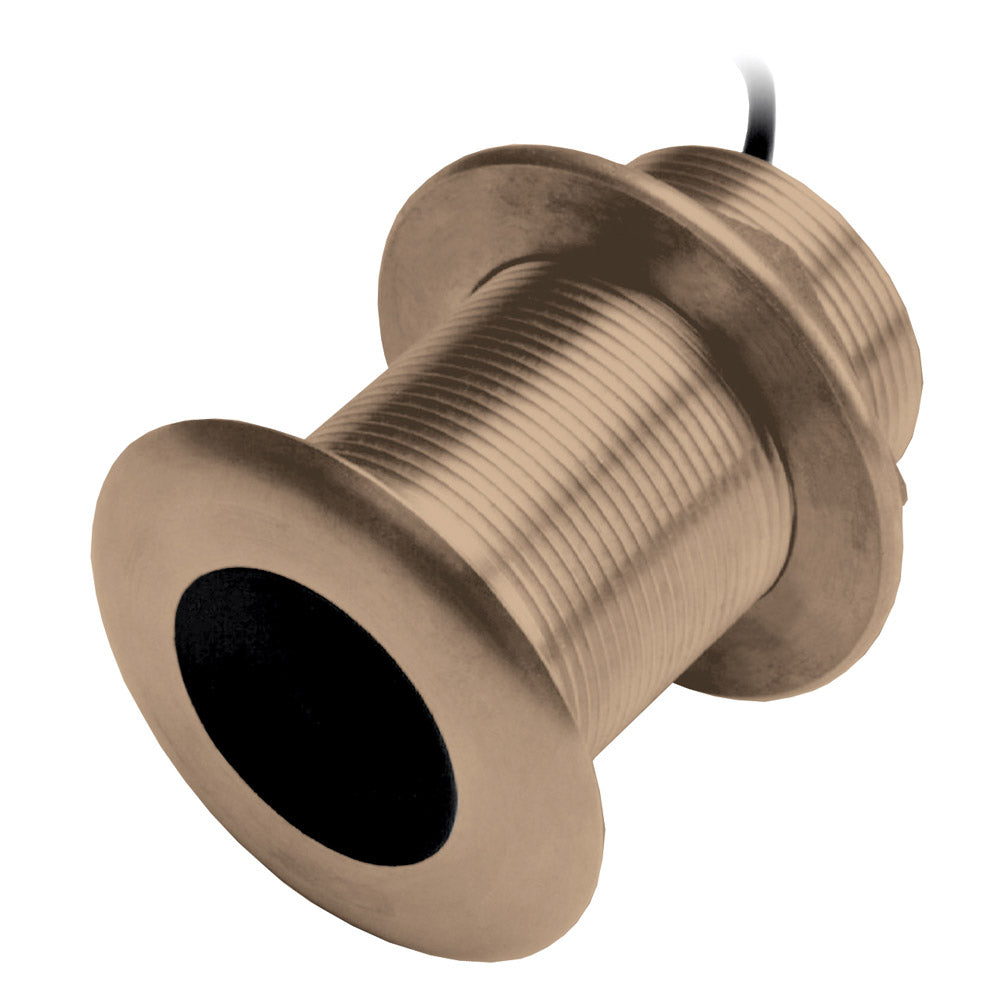

Garmin B150M Bronze 12 Degree Thru-Hull Transducer - 300W, 8-Pin

The Airmar B150M is a high-performance marine transducer designed for fiberglass and wood hulls. With its flush-mounted bronze housing and a 12° tilt, it seamlessly integrates into your vessel, providing reliable sonar performance and enhanced target separation. Whether you're fishing, navigating, or exploring, the B150M offers exceptional depth capability and versatility to meet your marine sensing needs.

Key Features

• Power Output: 300W
• Tilt Angle: 12° for optimal hull compatibility
• Housing: Durable flush-mounted bronze for longevity and corrosion resistance
• Frequency Options: Available in low, medium, and high frequencies for tailored sonar performance
• Hull Compatibility: Perfect for all hull deadrises, eliminating the need for a fairing block
• Chirp Technology: Entry-level chirp solution providing excellent depth capability and target separation

Technical Specifications

Attribute	Details
Maximum Depth	1,500'
Supported Deadrise/Transom Angles	8-15° Deadrise
Temperature Compatible	Yes
Speed Included	No
Pins	8
Mounting Style	Thru-Hull
Imagining Mode	Standard
Chirp Frequency	Medium
Cable Length	39' (Feet)
Box Dimensions	4"H x 8"W x 10"L
Weight	3.8 lbs
UPC	801769000832

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
