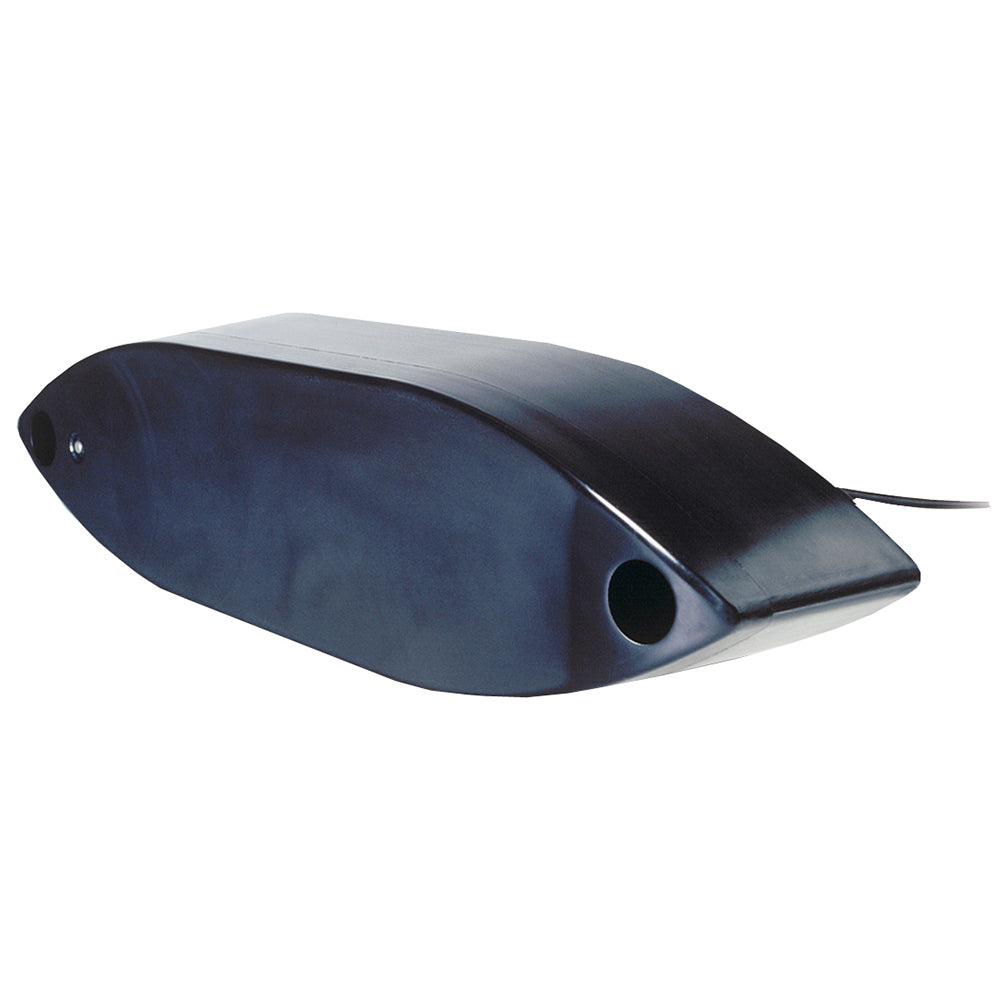

Garmin Airmar 509LHW 3kW 28 to 60kHz & 150 to 250kHz Thru-Hull Transducer

The Airmar 509LHW Thru-Hull Transducer delivers top-tier performance for marine enthusiasts, offering robust power and a versatile range of frequencies suitable for both deep and shallow water fishing. Engineered for reliability and precision, this transducer ensures accurate fish detection and optimal signal transmission in diverse maritime environments.

Key Features

• High Power Output: 2 to 3 kW for superior performance
• Versatile Frequency Range: 28 to 60 kHz and 150 to 250 kHz
• Deep Water Capability: Operates effectively up to 10,000 feet
• Adjustable Beamwidth: 5x9 to 11x23 degrees or a consistent 25 degrees
• Flexible Deadrise: 0 to 25 degrees for various mounting angles
• Narrow Beam Low Frequencies: Ideal for deep water performance
• Wide Beam High Frequencies: Perfect for shallow water scenarios
• Comprehensive Installation Kit: Includes detailed instructions to ensure proper setup

Technical Specifications

Parameter	Details
Operating Frequency	28 to 60 kHz & 150 to 250 kHz
Depth Rating	10,000 feet
Beamwidth	5x9 to 11x23 degrees or constant 25 degrees
Deadrise	0 to 25 degrees
Chirp	Low/High Wide
Temperature Sensor	Included
Speed Included	No
Connector Type	Bare Wires
Imaging	Standard
Cable Length	50 feet
Mounting Style	Thru-Hull
Box Dimensions	14"H x 17"W x 28"L
Weight	54.8 lbs
UPC	753759123611

Installation

The Airmar 509LHW transducer kit includes comprehensive installation instructions to guide you through the setup process. It is crucial to follow these instructions meticulously to ensure proper installation and to prevent any potential damage to your vessel.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
