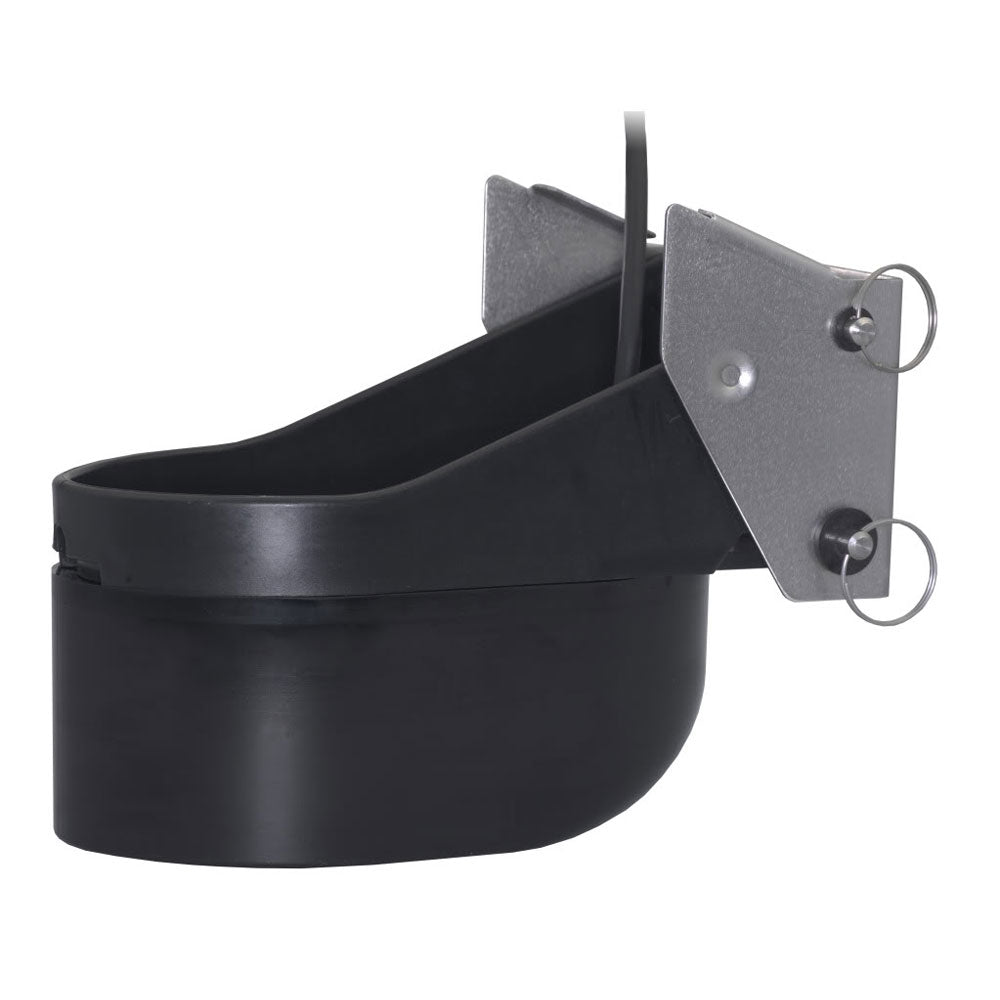

Furuno TM260 TM 1kW Transducer w/Bracket

The TM260 Transom Mount 1kW Transducer with Bracket elevates your fishing experience by delivering unparalleled sonar performance directly to your vessel’s transom. Designed for both bait and game fishing, this high-powered transducer ensures crystal clear imaging, allowing you to effectively separate bait from game fish and detect ground fish even when they’re tightly held to the bottom. Its robust, easy-to-install mounting bracket is streamlined for speed, making it ideal for vessels traveling up to 30 knots (35 MPH).

Key Features

• Premium narrow-beam transom mount for precise sonar imaging
• Engineered specifically for bottom fishing applications
• Wide 19° beam at 50 kHz for enhanced bait and game separation
• Narrow 6° beam at 200 kHz for detailed ground fish detection
• Compatible with larger trailered boats ranging from 8 m to 12 m (25' to 40') equipped with outboards and I/O’s
• Interfaces seamlessly with any 600 W or 1 kW fishfinder sounder
• Includes depth measurement and a new fast-response water-temperature sensor
• Kick-up assembly securely locks in the “up” position to prevent transom damage
• Adjustable to transom angles between 3° and 21° for versatile mounting
• Durable urethane housing for long-lasting performance in marine environments

Technical Specifications

Specification	Details
Power	1 kW
Frequency	50 kHz and 200 kHz
Beam Angle at 50 kHz	19°
Beam Angle at 200 kHz	6°
Mounting Compatibility	Trailered boats 8 m to 12 m (25' to 40') with outboards and I/O's
Depth Capability	Up to 800 m (2,625')
Maximum Vessel Speed	30 knots (35 MPH)
Transom Angle Range	3° to 21°

Fishing Applications

• Blue-water trolling utilizing 50 kHz for wide-area scanning
• Deep-water bottom and wreck fishing with precision up to 800 meters (2,625')

Installation & Compatibility

The TM260 is designed for ease of installation with its high-performance mounting bracket that suits transom angles between 3° and 21°. Its streamlined design ensures minimal drag and high-speed performance, making it suitable for larger trailered boats ranging from 25 to 40 feet with outboard motors and I/O connections. The transducer interfaces effortlessly with any 600 W or 1 kW fishfinder sounder, enhancing your vessel's sonar capabilities without the need for additional modifications.

Additional Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's Manual (PDF)
Brochure (PDF)
