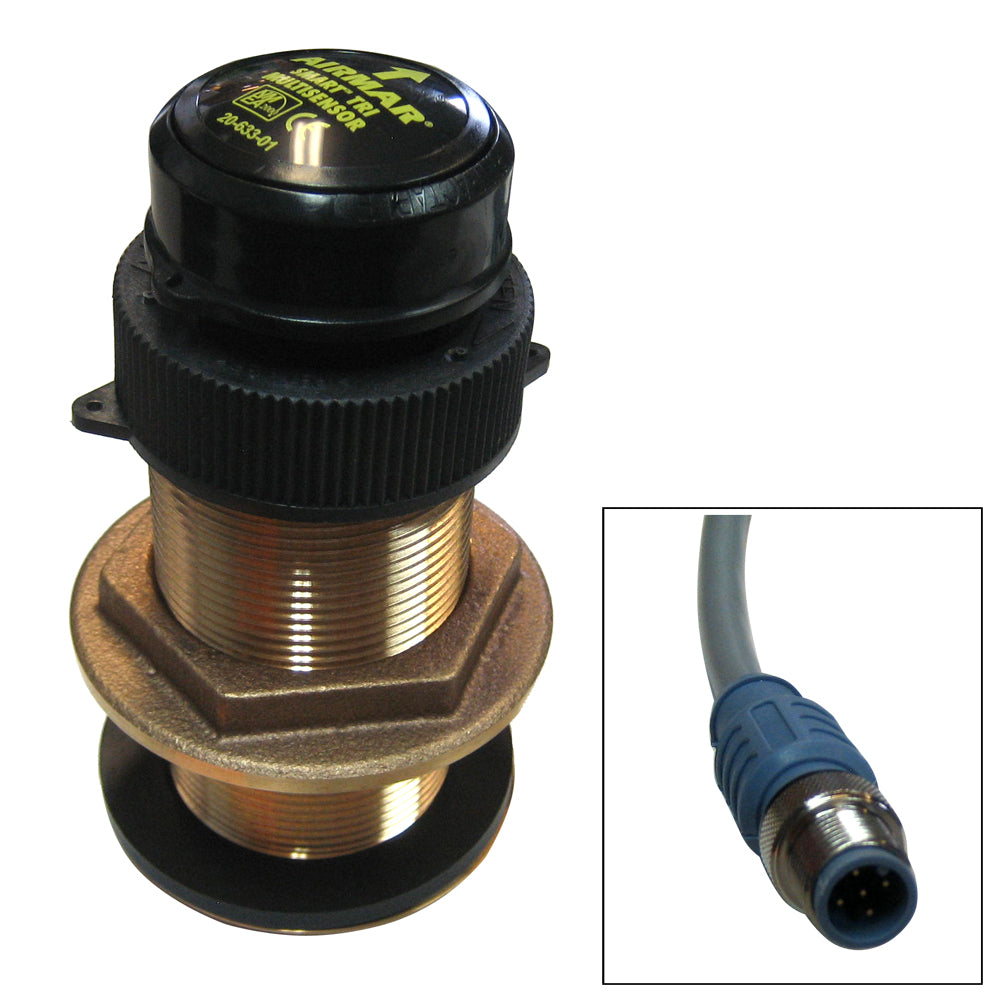

Furuno Smart Sensor DT-800MSF - Thru-Hull Transducer

The Furuno DT-800MSF, housed in the Airmar B617V style transducer, offers exceptional performance for marine enthusiasts seeking precise depth and temperature measurements. Utilizing Airmar's exclusive Broadband Ceramic Technology, this transducer delivers high-resolution data without compromising sensitivity, making it an essential tool for both recreational boaters and professional mariners.

Key Features

• Advanced Ceramic Technology: Equipped with a 235 kHz element, the DT-800MSF enhances resolution while maintaining high sensitivity.
• High Power Rating: With a 100W RMS power rating, it provides accurate depth readings from as shallow as 0.45M (1.4') and reaches depths up to 180M (600').
• Compact Design: Combines depth and temperature sensing in a single compact bronze housing, saving space and simplifying installation.
• Precision Temperature Sensor: Features a fast-response temperature sensor with ±0.2°C (±0.1°F) accuracy for reliable water temperature measurements.

Technical Specifications

Specification	Details
Weight	1.5kg (3.4lb)
Acoustic Window	Urethane
Data Update Rate	1 per second
Minimum Sounding Depth	0.5M (1.6')
Maximum Sounding Depth	180M (590')
Pressure Rating	3M (10')
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output	10 VDC to 25 VDC
Supply Current	40 mA
Standard Cable Length	6M
NMEA 2000® Load Equivalency Number (LEN)	4

*p/nm = pulses per nautical mile

Specifications

• Temperature: Yes
• Mounting Style: Thru-Hull
• Cable Length: 6M (19.7 feet)
• Box Dimensions: 4"H x 8"W x 10"L
• Weight: 3.4 lbs
• UPC: 611679330543

Installation and Usage

The Furuno DT-800MSF transducer is designed for easy installation with its thru-hull mounting style. Ensure the acoustic window made of durable urethane is properly positioned for optimal performance. The standard 6-meter cable provides flexibility during installation, allowing for versatile placement on your vessel.

Compatibility

Compatible with NMEA 2000® networks, the DT-800MSF has a Load Equivalency Number (LEN) of 4, ensuring seamless integration with your marine electronics setup. Its smart sensor supply voltage range of 10 VDC to 25 VDC makes it suitable for a wide variety of marine power systems.

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Why Choose the Furuno DT-800MSF?

When it comes to reliable and accurate marine electronics, the Furuno DT-800MSF stands out with its robust construction and cutting-edge technology. Whether you're navigating shallow waters or exploring deep seas, this transducer ensures you have the precise data needed for safe and efficient boating.
