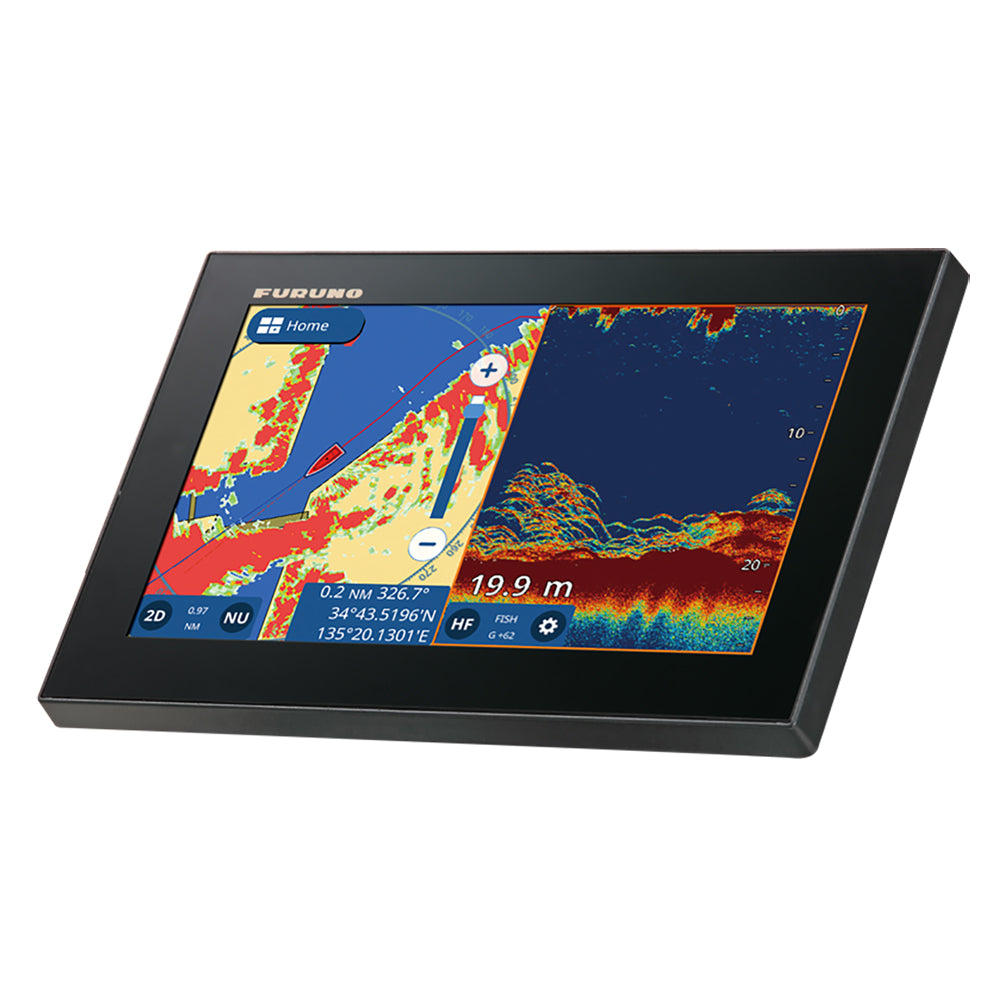

Furuno GP1971F 9" GPS/Chartplotter/Fishfinder 50/200, 600W, 1kW, Single Channel CHIRP

The GP1971F 9" GPS/Chartplotter/Fishfinder is a versatile and powerful navigation tool designed for marine enthusiasts. Combining advanced GPS technology, detailed chart plotting, and a high-resolution fishfinder, this all-in-one device enhances your boating experience with precision and ease.

Advanced Multi-Touch Interface

Experience seamless navigation with the GP1971F's smart multi-touch interface, inherited from the NavNet TZtouch2. The intuitive slide-out menus provide quick access to all essential tools and data, ensuring you stay in total control on the water.

Customizable Display Modes

Tailor your navigation experience by customizing display modes. Create the perfect combination of charts, radar, and fishfinder views to suit your individual needs and preferences.

Intuitive Finger Gestures

Navigate effortlessly using finger gestures. Zoom in and out, take screenshots with a double tap, or switch to full-screen mode with simple one or two-finger gestures, enhancing your interaction with the split-screen display mode.

High-Resolution Charting with C-MAP 4D

Utilize the detailed C-MAP 4D charts for highly precise navigational data. Features like relief vectors, tidal streams, and marine plans significantly improve your situational awareness, ensuring safe and efficient voyages.

Seamless Autopilot Integration

Connect the NAVpilot-300 or NAVpilot-711C autopilots to the GP1971F via the CAN bus network interface. Control your autopilot directly from the chart plotter, simplifying your boating operations.

TruEcho CHIRP™ Fishfinder

The TruEcho CHIRP™ technology delivers unmatched detail, allowing you to distinguish fish schools even near the sea bed. High-resolution displays with distinct boomerang shapes clearly mark individual game and bait fish, even in tightly schooled areas.

Enhanced Fish Detection with ACCU-FISH™ and RezBoost™

FURUNO’s RezBoost™ data processing enhances the resolution of fish schools and echoes. The ACCU-FISH™ and Bottom Discrimination functions enable you to assess fish size and bottom composition accurately. Customize ACCU-FISH™ icons and colors based on the size and depth of targeted fish for a personalized fishing experience.

Wireless Radar Integration

Upgrade your chart plotter's accuracy and safety by connecting the GP1971F to the 1st Watch Wireless Radar (Output Power 4 kW). This integration provides reliable radar data, enhancing your navigational capabilities.

Easy Screenshot and Data Storage

Capture and store important information effortlessly. Use two-finger taps to take screenshots, which are automatically saved to your microSD card for easy access and reference.

Key Features

• Consistent all-glass design with a multi-touch, slide-out menu interface
• 9" wide-aspect LCD display with 800 x 480 resolution, anti-fingerprint, and anti-reflective coating
• Built-in 1kW TruEcho CHIRP™ and conventional fishfinder with ACCU-FISH™, RezBoost™, and Bottom Discrimination
• Integrated 72-channel GPS with WAAS, EGNOS, and MSAS Core with built-in antenna
• Wireless connectivity for DRS4W Radar and C-MAP C-Weather downloads
• Radar overlay capability with DRS4W (optional heading input required)
• Compatible with C-MAP 4D MicroSD Worldwide Cartographic Database
• C-MAP C-Weather integration for real-time wind, wave, weather, humidity, and temperature data
• Autopilot control when integrated with NavPilot 711C or NavPilot 300
• Certified NMEA2000/NMEA0183 Interface with full NMEA0183 output via software update
• Supports AIS data in both NMEA0183 & NMEA2000 formats
• Built-in simulation mode with internal demo slideshow

Specifications

Feature	Details
Cartography Brand	Navionics/C-Map
Screen Size	9"
Touchscreen	Yes
Transducer Included	No
Box Dimensions	10"H x 12"W x 15"L
Weight	6.35 lbs
UPC	611679364555

Additional Information

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
