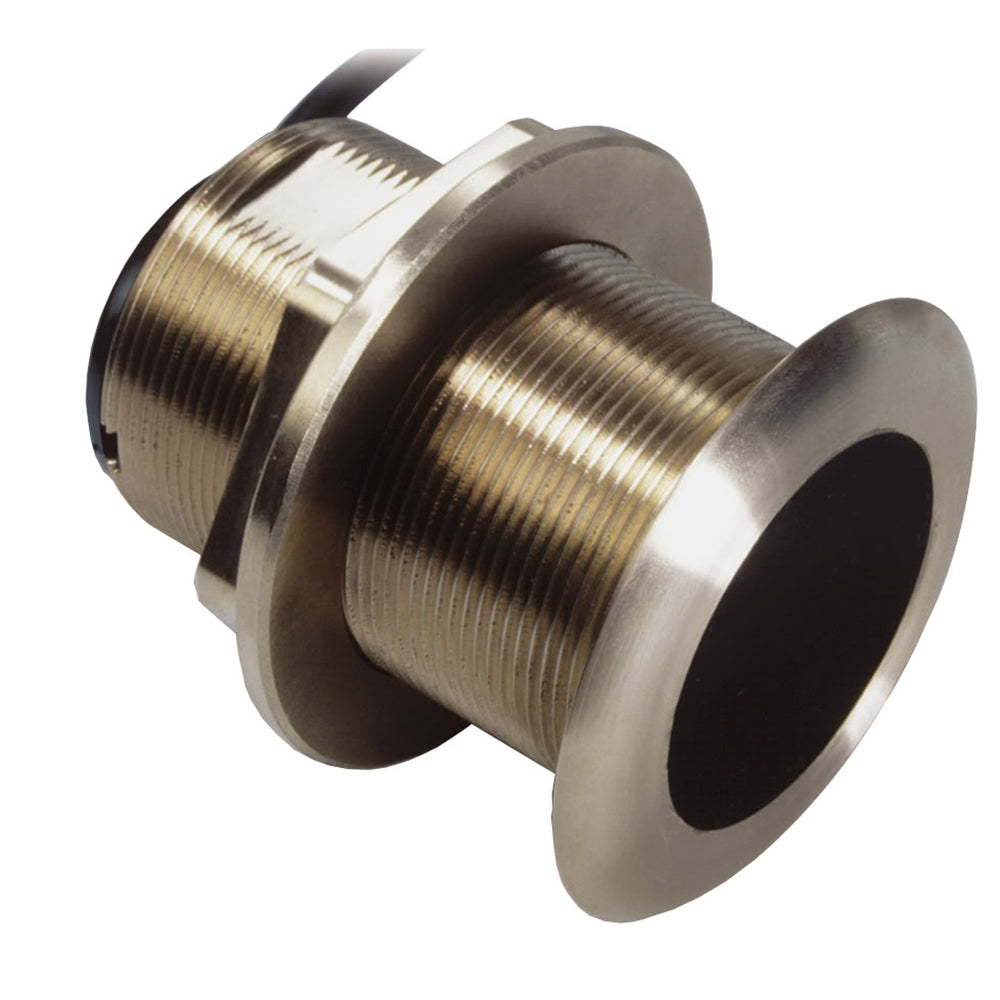

Furuno B60-20, 20 Degree Tilted Element Transducer

The B60 Tilted Element™ 20° by Furuno, featuring a 10-pin connector, is a high-performance sonar transducer designed for boats with deadrise angles between 16° and 24°. Its unique tilted ceramic element ensures precise depth readings and efficient operation, making it an ideal choice for marine enthusiasts seeking accurate underwater information.

Key Features

• Depth and Temperature Sensing: Provides accurate depth measurements along with temperature data for enhanced fishing and navigation.
• Frequency Options: Available in 50/200 kHz, catering to both general and specific marine applications.
• Power Output: Equipped with a robust 600W RMS power rating for reliable performance in various marine environments.
• Performance: Mid-performance transducer offering a balanced blend of sensitivity and range.
• Durable Construction: Made from high-quality bronze, ensuring longevity and resistance to harsh marine conditions.

Enhanced Design for Superior Performance

The bronze B60-20° features a vertically aligned beam without a fairing, minimizing drag and optimizing hydrodynamic efficiency. The internally tilted ceramic element provides built-in deadrise compensation, resulting in superior echo returns for more accurate depth readings. The nearly flush housing design ensures only 5 mm (3/16") extends outside the hull, reducing water resistance and improving overall vessel performance.

Specifications

Mounting Style	Thru-Hull
Temperature Sensing	Yes
Speed Included	No
Box Dimensions	6"H x 8"W x 9"L
Weight	4.6 lbs
UPC	6116793079346

Compliance and Returns

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Please note: This product may not be returned to the original point of purchase. If you have any issues or concerns, please contact the manufacturer directly.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
