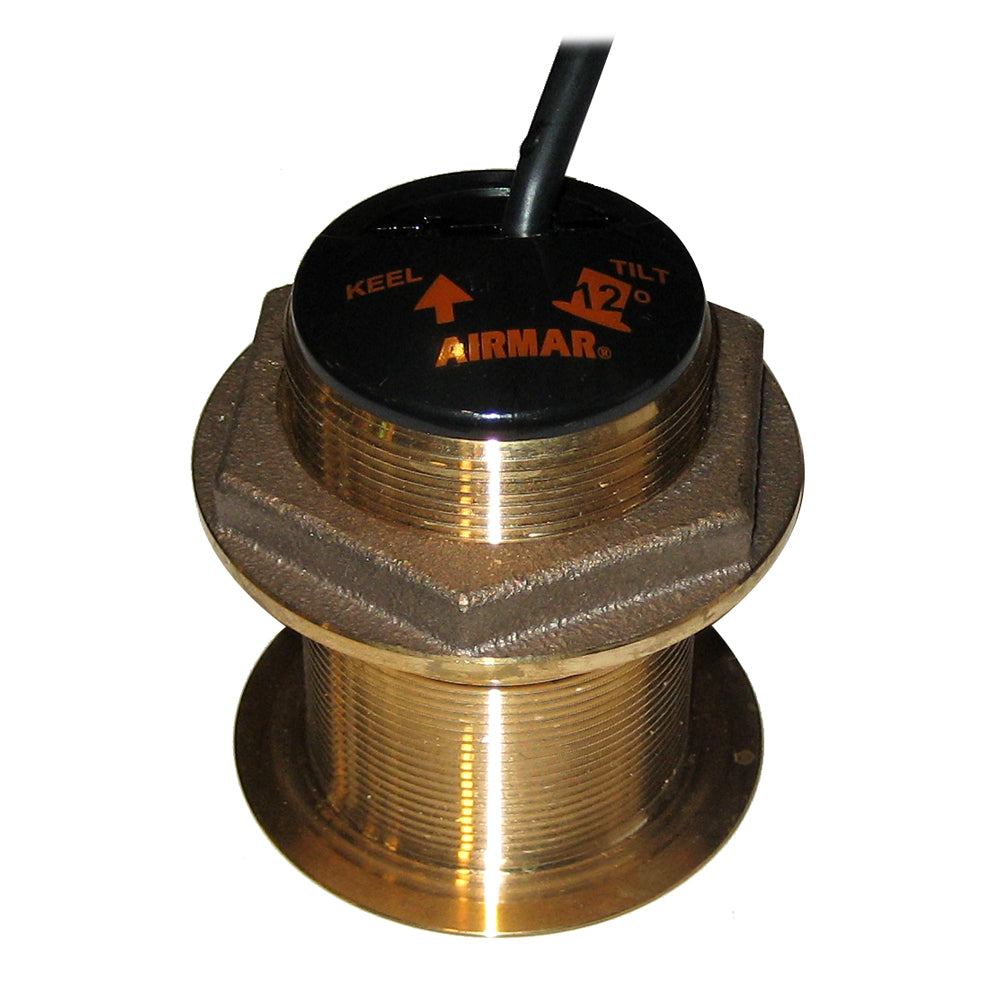

Furuno B60-12, 12 Degree Tilted Element Transducer (10-Pin)

The B60 Tilted Element™ 12° is an advanced sonar transducer designed specifically for boats with deadrise angles between 8° and 15°. Its innovative tilted ceramic element ensures precise depth readings by compensating for the hull's angle, while the nearly flush bronze housing minimizes drag, enhancing your boating experience with superior performance and accuracy.

Key Features

• Depth and Temperature Sensing: Provides accurate depth measurements and monitors water temperature for comprehensive underwater data.
• Frequency Options: Available in 50 kHz and 200 kHz to suit various fishing and navigation needs.
• Power Handling: Capable of handling up to 600W RMS, ensuring reliable and consistent performance.
• Performance Level: Mid-performance transducer suitable for a wide range of marine applications.
• Durable Bronze Construction: Crafted from high-quality bronze for longevity and resistance to harsh marine environments.

Advanced Design for Optimal Performance

The B60-12° model features a vertical beam design without a fairing, allowing for exceptional echo returns that enhance depth accuracy. The ceramic element is strategically tilted inside the housing, providing built-in deadrise compensation tailored for boats with deadrise angles between 8° and 15°. This design not only improves sonar performance but also ensures the housing remains nearly flush with the hull, extending only 5 mm (3/16") outside to reduce drag and maintain fuel efficiency.

Technical Specifications

Feature	Details
Temperature Sensing	Yes
Speed Included	No
Mounting Style	Thru-Hull
Box Dimensions	6"H x 8"W x 9"L
Weight	4.6 lbs
UPC	611679307941

Compliance and Returns

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
