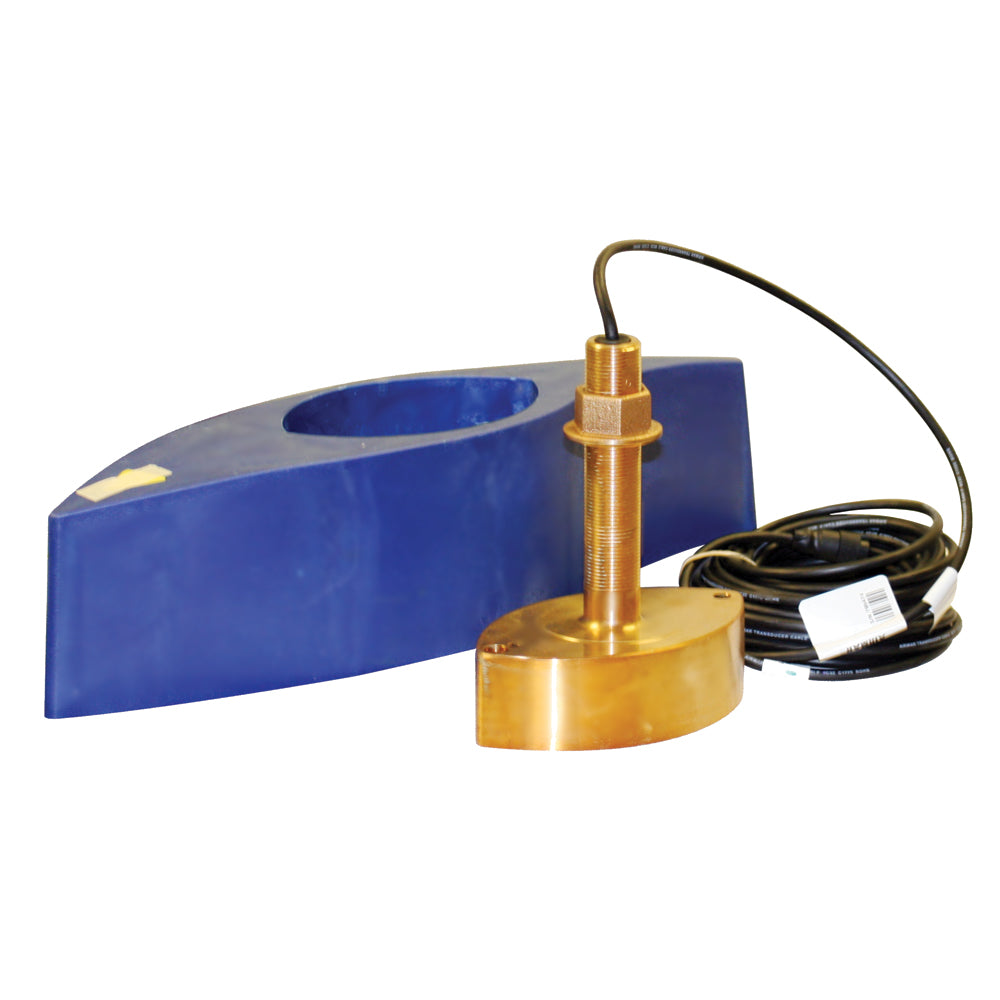

Furuno 1kW Bronze Thru-Hull w/Temp & High Speed Fairing Block

The 525TID-BHD Bronze Thru-Hull Transducer is engineered for marine enthusiasts seeking precision and reliability. Equipped with advanced features like temperature sensing and a high-speed fairing block, this transducer ensures optimal performance for both sport and commercial fishing vessels.

Key Features

• Power Output: 1 kW
• Frequency Range: 50/200 kHz with Diplexer
• Beam Angle:
  • 15x21° at 50 kHz
  • 3x5° at 200 kHz
• Construction: Bronze Thru-Hull with Temperature Sensor
• Connectivity: 10-Pin Connector
• Included Accessories: High-Speed Fairing Block AIR-033-523

The Clear Choice for Superior Fishfinding

The B258 transducer elevates the performance of 600 W fishfinders to rival their more powerful counterparts, particularly at 50 kHz. With a sensitivity 25 times greater than a single-element 50/200 kHz transducer, the B258 leverages Airmars' unique ceramic-element construction to deliver narrow beams. This precision allows anglers to distinguish individual fish and bottom structures clearly up to 2,200 feet.

Streamlined Performance for High-Speed Boating

Maximize your fishing experience with the B258's custom-fit high-performance fairing. Designed for speeds exceeding 30 knots, this setup ensures that your screen displays maintain clear images and a clean bottom trace, even under demanding conditions.

Additional Benefits

• Supersedes the B256 transducer, offering a significant performance boost at 50 kHz.
• Ideal for sport fishing boats over 26' (8m) and small to midsize commercial fishing boats.
• Includes a reliable temperature sensor to monitor water conditions.
• Optional Transducer ID for easy identification and setup.

Specifications

Temperature Sensor	Yes
Box Dimensions	7"H x 19"W x 26"L
Weight	18.65 lbs
UPC	611679310675

Important Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
