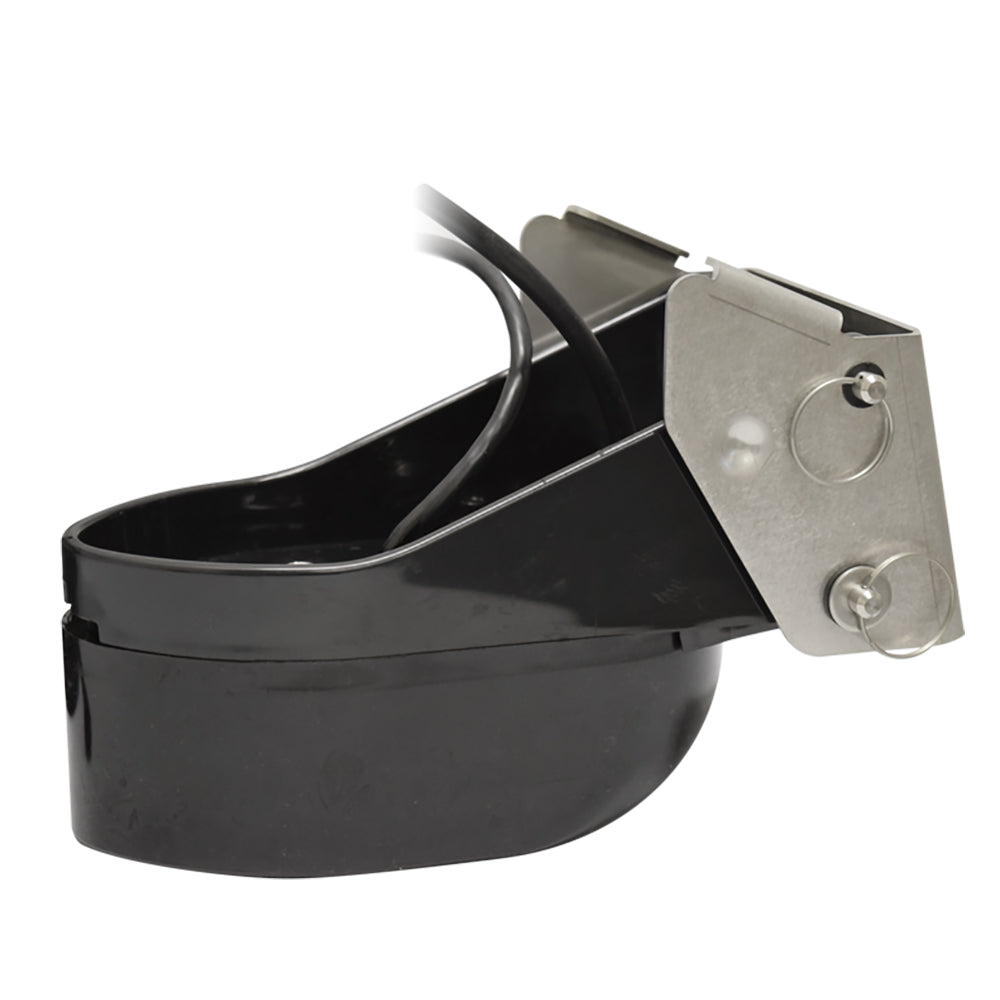

Furuno 165T-50/200-TM260 Transducer f/DFF3D Transom Mount Combo

Enhance your boating experience with the 165T-50/200-TM260 Transducer for DFF3D Transom Mount Combo. Designed for precision and durability, this transducer ensures reliable performance for your marine electronics, providing accurate depth readings and seamless integration with your sonar systems.

Key Features

• Operating Frequency: DFF3D operates at 165 kHz for optimal sonar performance.
• Power and Beam Angles: 1kW power with 50/200 kHz frequencies and 20°/6° beam angles, matching the specifications of the Airmar B164 transducer.
• Comprehensive Connectivity: Includes 12-meter cables equipped with a 10-pin connector for the sounder, a 7-pin connector, and a pigtail cable for the DFF3D.
• Compatibility: Perfectly recommended for use with TZtouch2, TZtouch/DFF1, and DFF3D installations.
• Integrated Sensors: Features a built-in motion sensor and temperature sensor for enhanced functionality.

Technical Specifications

Specification	Details
Operating Frequency	165 kHz
Power	1kW
Frequencies	50/200 kHz
Beam Angles	20° / 6°
Cable Length	12 meters
Mounting Style	Transom
Box Dimensions	11"H x 12"W x 16"L
Weight	15.5 lbs
UPC	611679375124

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy

Please note: This product may not be returned to the original point of purchase. If you encounter any issues or have concerns, contact the manufacturer directly for assistance.

Additional Resources

For more detailed information, download the product brochure (PDF).
