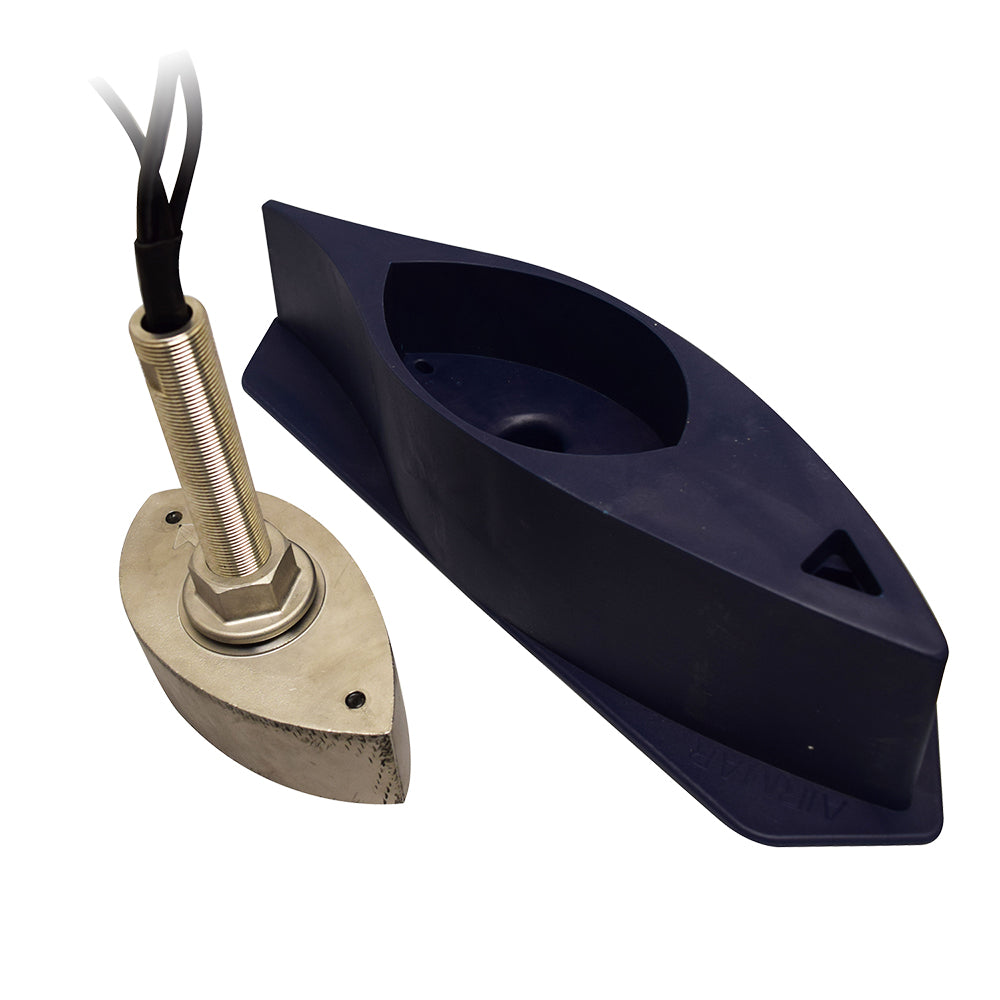

Furuno 165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer

Your vessel deserves the best in sonar technology. The 165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer offers top-tier performance, combining multiple functionalities into a single, space-saving unit designed for marine and boating applications.

Product Overview

The 165T-50/200-SS260 is a stainless steel combination thru-hull transducer that integrates DFF3D elements with 50/200 kHz sounder elements, alongside temperature and motion sensors. This all-in-one solution can be seamlessly connected to the DFF3D Multi-Beam Sonar and one additional sounder, providing a cost-effective and space-efficient alternative to installing separate transducers.

Key Features

• Durable stainless steel thru-hull construction with a high-speed fairing block
• Option for flush mounting in the keel without the need for a fairing block
• DFF3D operating frequency of 165 kHz for precise sonar imaging
• Integrated motion sensor for enhanced vessel monitoring
• Built-in temperature sensor for accurate environmental readings
• 1kW, 50/200 kHz sounder elements with 20° and 6° beam angles, identical to Airmar B164 transducers
• Includes 12-meter cables with a 10-pin connector for the sounder, a 7-pin connector, and a pigtail cable for DFF3D integration
• Recommended for use with TZtouch2 or TZtouch/DFF1 systems and DFF3D installations

Specifications

Mounting Style	Thru-Hull
Cable Length	12 meters
Box Dimensions	7" H x 18" W x 25" L
Weight	25.2 lbs
UPC	611679375117

Compliance and Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

Download the Brochure (PDF)
