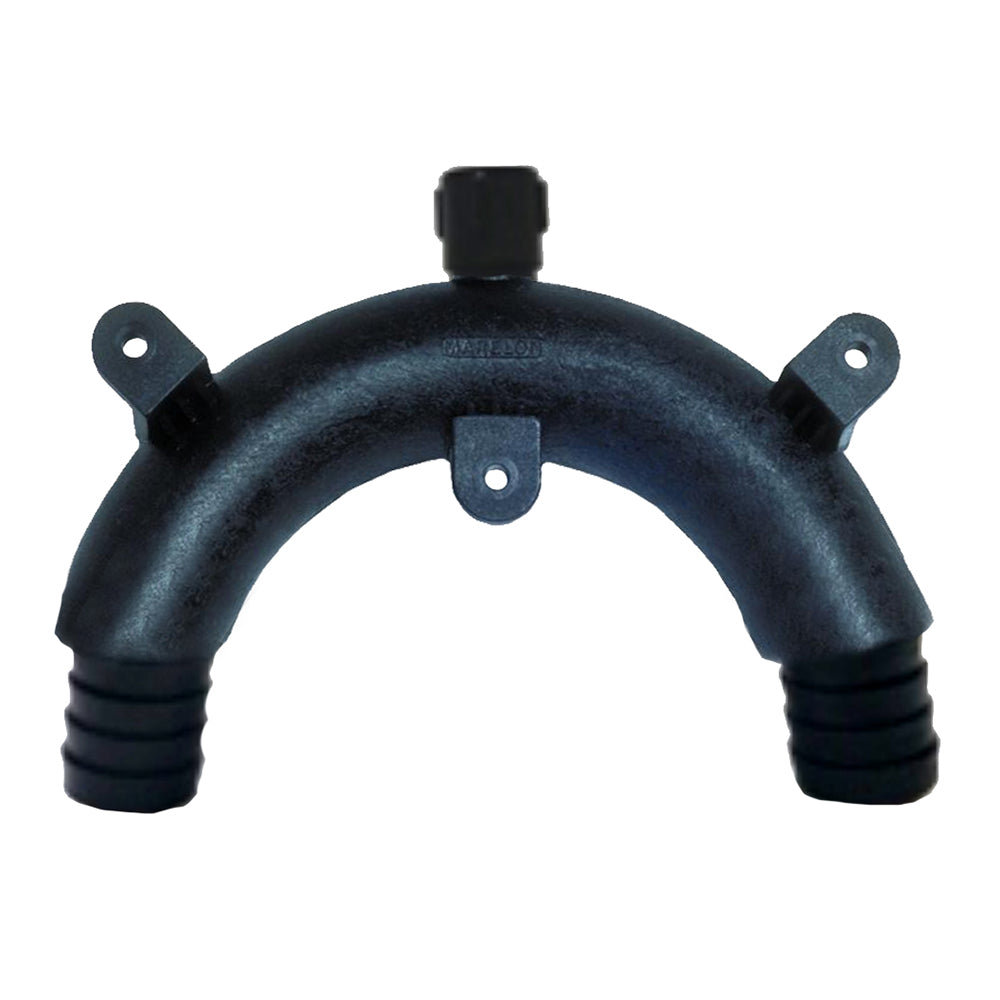

Forespar MF 847 Vented Loop - 1-1/8"

The MF 847 Vented Loop is an essential component for marine and boating systems, designed to prevent unwanted siphoning between tanks. Whether you're managing your marine toilet system or ensuring efficient engine cooling, this vented loop offers reliable performance and durability. Crafted from high-quality Marelon, the loop resists corrosion and withstands the harsh marine environment, ensuring long-lasting functionality. The integrated duckbill one-way valve effectively seals against water and fluid flow while allowing air to enter the system when not in use, even in the presence of particulate matter.

Key Features

• Prevents Siphoning: Ensures fluids do not unintentionally transfer from one tank to another.
• Versatile Applications: Ideal for marine toilet systems and engine cooling systems.
• Durable Construction: Molded from Marelon to resist corrosion and extend lifespan.
• Efficient Valve System: Duckbill one-way valve allows air intake while sealing against fluid flow.
• Particle Resistant: Maintains proper sealing even when particulate matter is present in fluids.

Specifications

Attribute	Details
Type	Vented Loops
Barb Size	1-1/8" (28.57mm)
Height	7" (177.8mm)
Width	9" (228.6mm)
Box Dimensions	2"H x 6"W x 8"L
Weight	0.5 lbs
UPC	028028192231

Installation Instructions

Installing the MF 847 Vented Loop is straightforward. Follow these steps to ensure a secure and effective setup:

1. Identify the appropriate location in your marine toilet or engine cooling system where siphoning prevention is needed.
2. Connect the vented loop using the 1-1/8" barb fittings provided.
3. Ensure all connections are tight to prevent any leaks.
4. Check the valve operation by allowing air to enter the system and verifying the seal when fluid flows through.
5. Secure the loop in place to avoid movement during vessel operation.

Benefits

• Enhanced System Reliability: Prevents accidental siphoning, safeguarding your marine systems.
• Corrosion Resistance: Marelon construction ensures longevity even in salty marine environments.
• Easy Maintenance: Simple valve system allows for effortless monitoring and maintenance.
• Lightweight Design: Weighs only 0.5 lbs, adding minimal weight to your vessel.
