Fireboy-Xintex Propane Fume Detector Alarm w/2 Plastic Sensors Solenoid Valve - Square Black Bezel Display

Ensure the safety of your vessel with our advanced Propane Fume Detector & Alarm. Specifically designed for marine and boating applications, this reliable device detects propane leaks early and automatically shuts off the gas supply to protect you and your loved ones from potential hazards.

Key Features

• Dual Sensor Protection: Comes with 2 high-sensitivity plastic sensors to ensure comprehensive leak detection.
• Solenoid Valve Integration: Automatically closes the solenoid valve upon detecting propane fumes, cutting off the gas supply instantly.

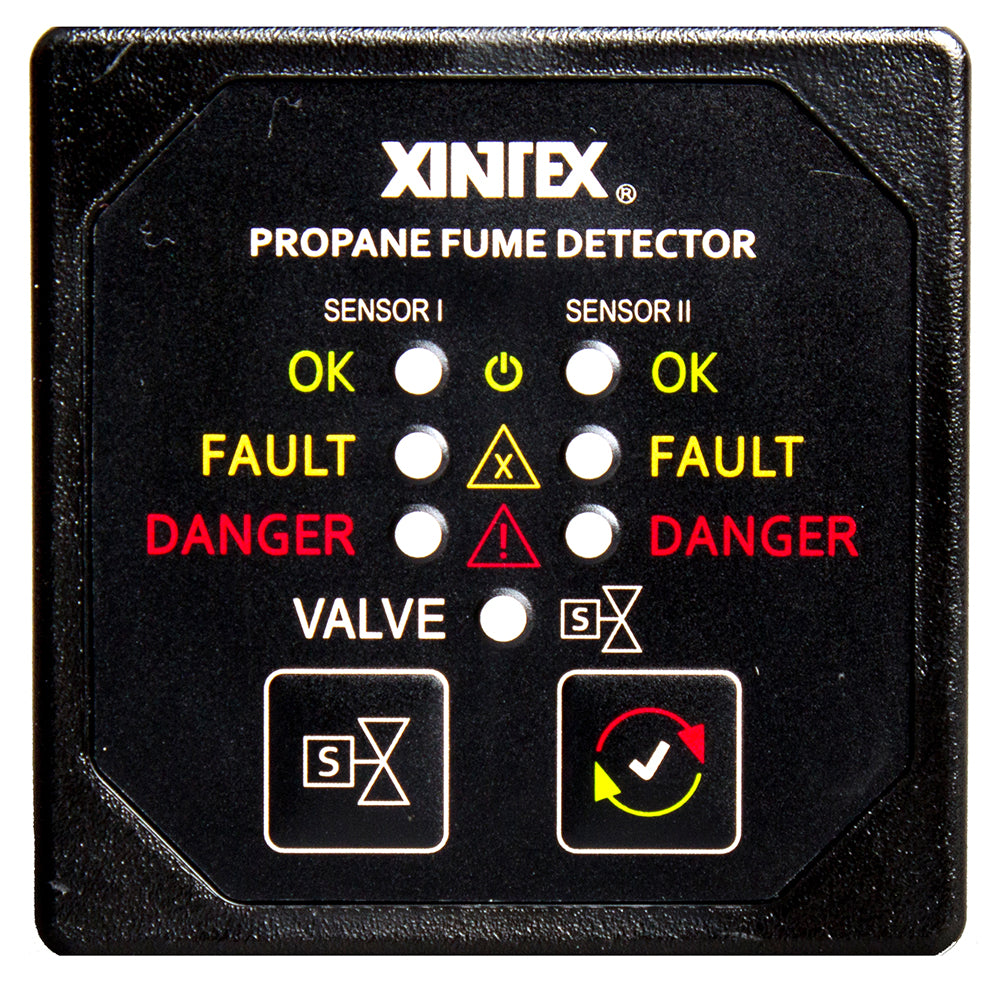

• Intuitive Display: 2-5/8" square black bezel display equipped with LEDs for clear status indication and a Silence/Test button for easy operation.
• Audible Alarm: A 68 dBA alarm sounds when propane levels reach 20% of the Lower Explosive Limit (LEL), accompanied by a flashing red LED.
• Easy Installation: Simple setup process tailored for marine environments, ensuring quick and hassle-free installation on your boat.
• Wide Voltage Range: Operates efficiently within a 9-30VDC power range, making it compatible with various marine power systems.
• Durable Performance: Functions reliably in extreme temperatures from -40°F to 185°F (-40°C to 85°C), ideal for diverse marine climates.
• Safety Features: Includes reverse polarity protection to prevent damage from incorrect wiring.
• Power Consumption: Low current draw with a nominal 55mA and a maximum of 780mA at 12VDC, ensuring minimal impact on your vessel's power supply.

Technical Specifications

Feature	Details
Fume Type	Propane
Sensors Included	2
Voltage - Input Range	9-30VDC
Alarm Sound Level	68 dBA
Operating Temperature	-40°F to 185°F (-40°C to 85°C)
Current Draw @ 12VDC	Nominal: 55mA / Maximum: 780mA
Box Dimensions	4"H x 4"W x 8"L
Weight	2 lbs
UPC	619749202684
Additional Features	Solenoid Valve Control Button, Reverse Polarity Protected, Silence/Test Button

Why Choose Our Propane Fume Detector for Your Boat?

Marine environments demand robust and reliable safety equipment. Our propane fume detector is engineered to withstand the harsh conditions at sea, providing peace of mind whether you're anchored at harbor or navigating open waters. The automatic shut-off feature not only alerts you to potential leaks but also takes immediate action to prevent accidents, a crucial safety measure on any vessel.

Installation Guide

Installing the Propane Fume Detector on your boat is straightforward:

1. Select an appropriate location near your propane system where leaks are most likely to occur.
2. Connect the solenoid valve to your propane supply line following the included adapter instructions.
3. Power the device within the 9-30VDC range, ensuring correct polarity to activate the reverse polarity protection.
4. Mount the detector securely, ensuring the sensors are unobstructed for optimal leak detection.
5. Test the system using the Silence/Test button to confirm proper operation of alarms and valve shut-off.

Customer Support

We stand behind the quality and reliability of our products. If you have any questions or need assistance with installation, our dedicated support team is here to help ensure your marine safety needs are fully met.
