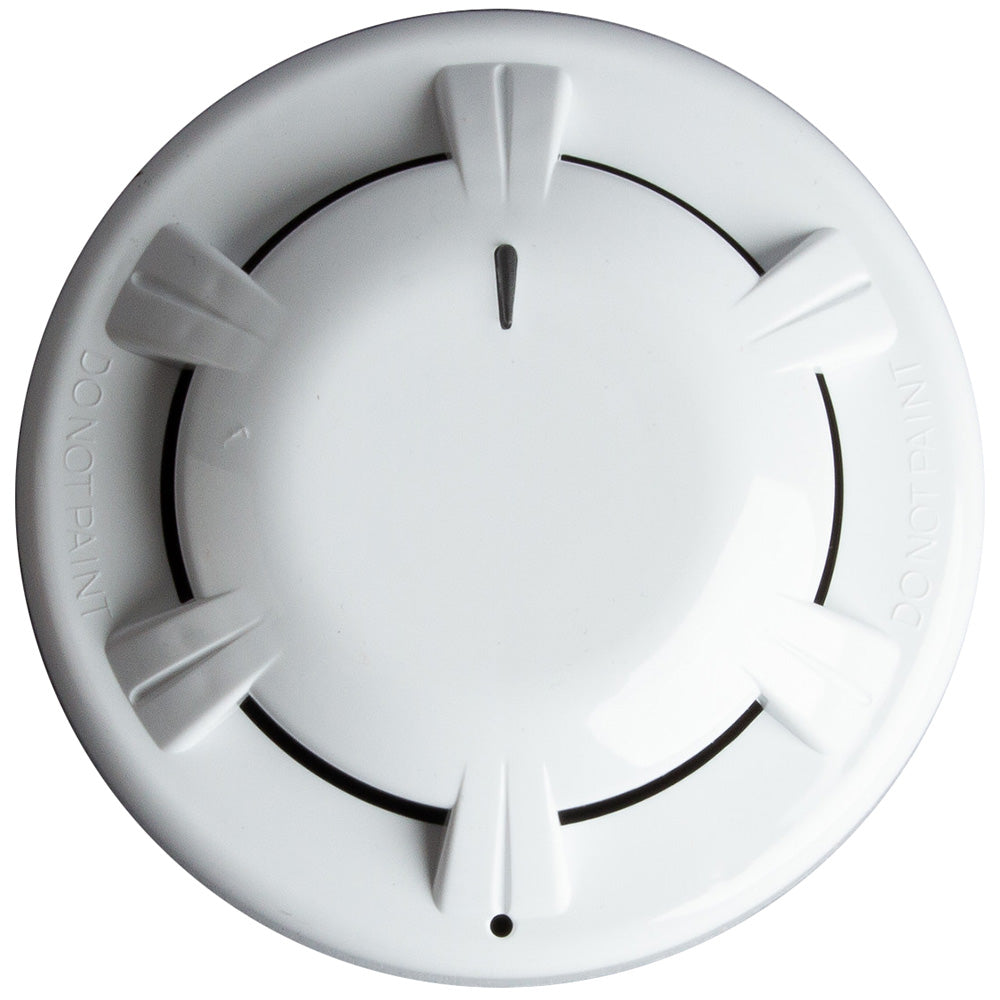

Fireboy-Xintex Optical Smoke Detector w/Base

Ensure the safety of your vessel with our Optical Smoke Detector with Base, specifically designed to provide reliable early warning of fires in marine environments. Engineered to reduce false alarms and optimized for the unique conditions on boats, this smoke detector is an essential safety component for any marine enthusiast.

Features

• Ideal for general-purpose fire detection, offering early warning in various areas of your vessel
• Highly effective in detecting both black and white smoke
• Automatically compensates for slow changes in sensitivity to maintain accuracy
• Incorporates multiple confirmation steps to minimize false alarms caused by transient phenomena

Specifications

Parameter	Details
Sampling Frequency	Once every four seconds
Operating Voltage	8.5 V DC to 33 V DC
Supply Wiring	Two-wire supply, polarity sensitive
Power-up Time	< 20 seconds
Minimum ‘Detector Active’ Voltage	6 V
Minimum Holding Current	8 mA
Minimum Voltage to Light Alarm LED	5 V
Alarm Reset Time	One second
Alarm Indicator	Integral indicator with 360º visibility
Operating & Storage Temperature	-40ºC to +70ºC
Humidity (no condensation or icing)	0% to 98% RH

Operation

• Utilizes the proven light scatter principle for effective smoke detection
• Advanced optical design ensures responsiveness to a wide range of fire types commonly encountered on vessels
• The sensing chamber houses an optical sensor that detects both back-scattered and forward-scattered light, enhancing detection accuracy
• Engineered for high reliability in fire detection while significantly reducing false alarms
• Employs sophisticated algorithms to determine when to trigger the alarm, ensuring stability and reducing false triggers
• Minimizes the risk of alarms due to non-fire smoke sources such as smoking materials

Additional Specifications

• Fume Type: Smoke
• Box Dimensions: 2" H x 5" W x 7" L
• Weight: 0.35 lbs
• UPC: 619749321095
