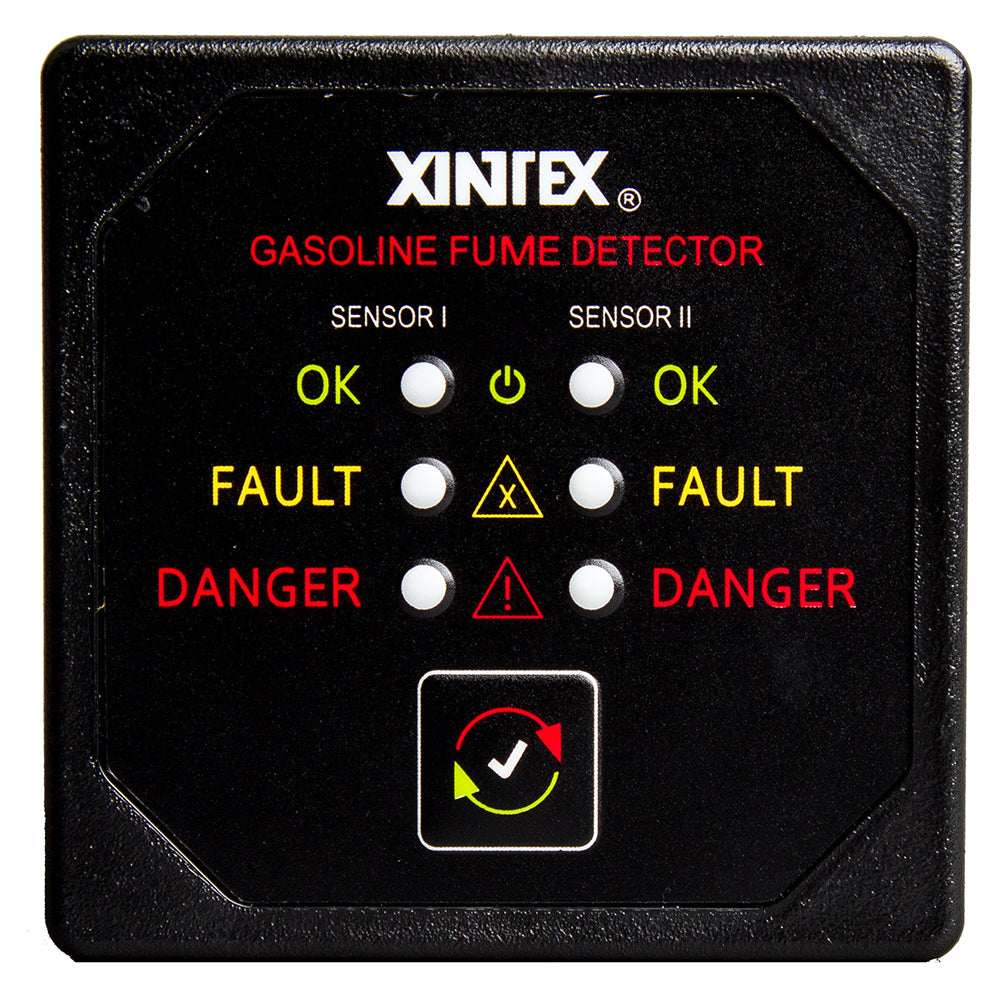

Fireboy-Xintex Gasoline Fume Detector w/Dual Channel - 12/24V

The Gasoline Fume Detector with Dual Channel is an essential safety device for marine and boating applications, ensuring the monitoring of gasoline fumes in engine compartments, fuel storage areas, and other critical zones where fumes may accumulate. Designed for reliability and ease of installation, this detector provides precise monitoring to keep your vessel safe.

Key Features

• Effortless Installation: Designed for quick and straightforward setup on your vessel.
• Dual Alarm System: Equipped with both audible and visual alarms to alert you of Lower Explosive Level (LEL) gasoline vapors.
• Dual Channel Monitoring: Simultaneously monitors two separate areas, providing comprehensive coverage of your boat’s critical fume-prone zones.

Technical Specifications

Specification	Details
Operating Temperature	-40° to 185°F (-40° to 85°C)
Current Draw Nominal	55mA
Current Draw Maximum	150mA
Operating Voltage	9 to 30V DC
Alarm Horn	68 dB
Display Style	Square with Black Bezel
Display Dimensions	2-5/8" x 2-5/8" (6.7 x 6.7 cm)
Cutout Dimension	2-1/8" round hole (5.4 cm)
Blower Relay	No
Fume Type	Gasoline
Generator Shutdown	No
Sensors Included	2
Voltage Input Range (Volts)	9 to 30
Box Dimensions	4"H x 4"W x 8"L
Weight	1.5 lbs
UPC	619749202554

Package Includes

• Gasoline Fume Detector
• Fuel Sensors x2
• 20' Extension Cable x2
• Instruction Manual

Note: Sold as an individual unit.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
