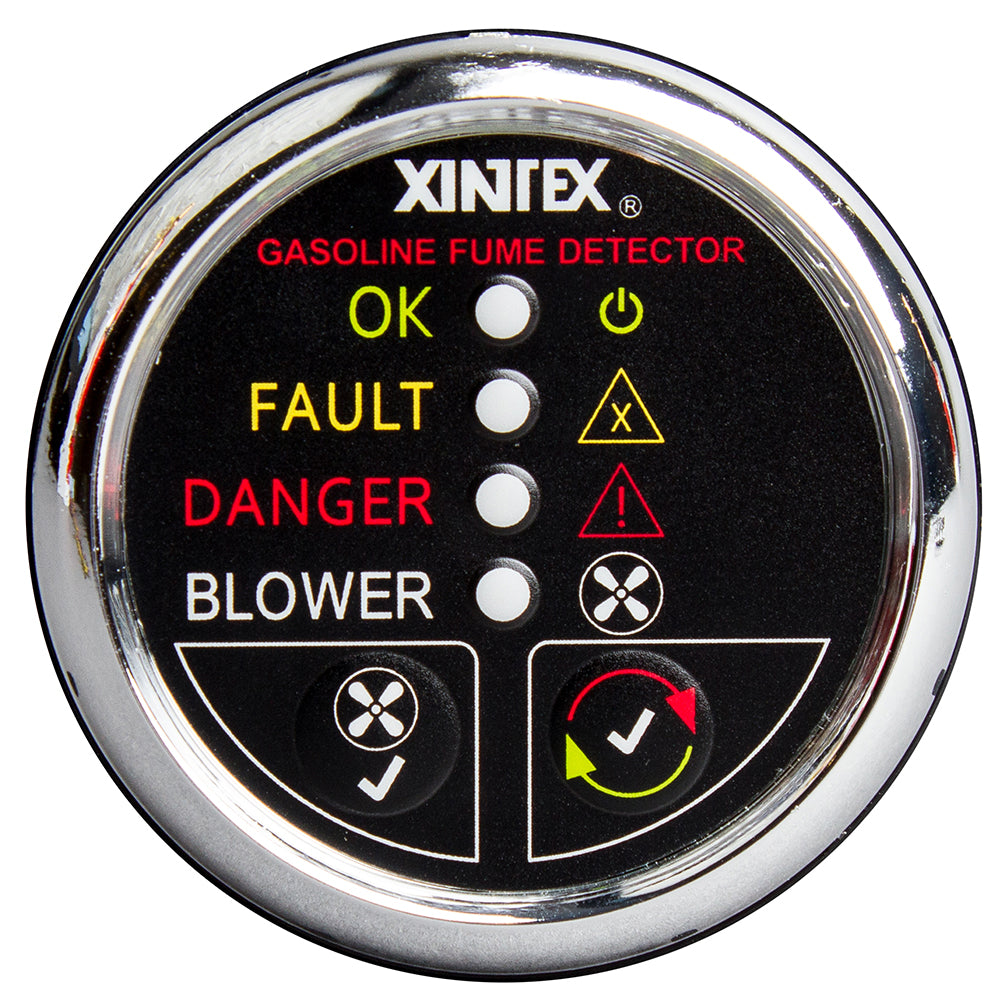

Fireboy-Xintex Gasoline Fume Detector w/Blower Control - Chrome Bezel - 12V

Ensure the safety of your vessel with our Gasoline Fume Detector equipped with Blower Control and a sleek Chrome Bezel. Designed specifically for marine environments, this 12V detector monitors gasoline fumes in engine compartments, fuel tanks, and other critical areas, providing peace of mind during your voyages.

Product Overview

The Single Channel Gasoline Fume Detector is an essential safety device for any boat owner. It effectively detects gasoline fumes, preventing potential hazards caused by fume accumulation. Ideal for use in engine rooms, fuel storage areas, and other sensitive locations on your vessel, this detector provides reliable monitoring and automatic ventilation control to maintain a safe environment onboard.

Key Features

• Easy Installation: Designed for straightforward setup, allowing you to install quickly without extensive modifications.
• Audible and Visual Alarms: Alerts you with a 68 dB horn and visual indicators when Lower Explosive Level (LEL) gasoline fumes are detected.
• Single Area Monitoring: Specifically monitors one critical area, ensuring focused and accurate detection.
• Automatic Blower Activation: Automatically engages the bilge blower to ventilate and disperse detected fumes, enhancing safety.

Technical Specifications

Operating Temperature	-40° to 185°F (-40° to 85°C)
Current Draw	Nominal: 55mA Maximum: 95mA
Operating Voltage	9 to 30V DC
Alarm Horn	68 dB
Display Style	Round with Chrome Bezel
Display Dimensions	2-3/16" (5.6 cm) round
Cutout Dimension	2-1/16" (5.2 cm) round hole

What's Included

• Gasoline Fume Detector
• Fuel Sensor x1
• 20' Extension Cable x1
• Blower Relay x1
• Instruction Manual

*Sold individually

Additional Specifications

Blower Relay	Included
Fume Type	Gasoline
Generator Shutdown	No
Sensors Included	1
Voltage - Input Range (Volts)	9 to 30
Box Dimensions	4"H x 4"W x 8"L
Weight	1 lb
UPC	619749202547

Resources

Owner's Manual (PDF)
Brochure (PDF)
